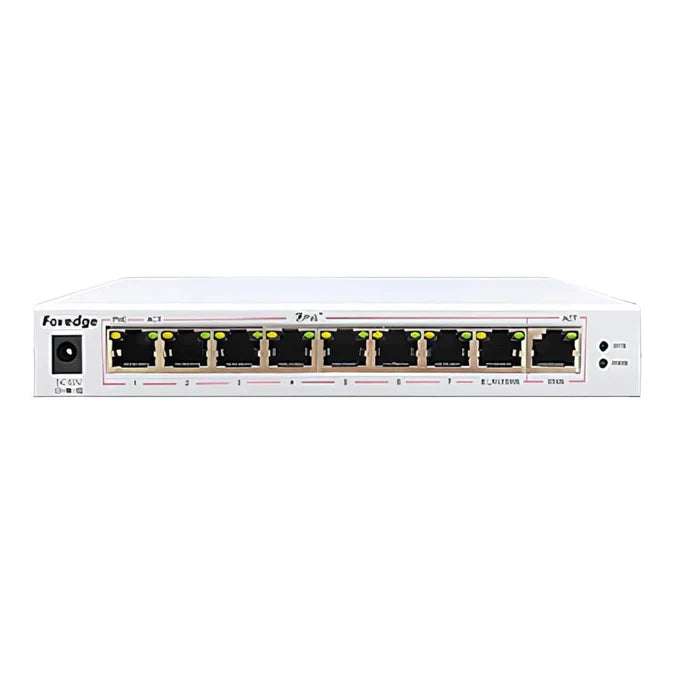

PoE AC Integrated Gigabit Router

A next-generation PoE·AC integrated gigabit router developed by Fengrunda, designed for small and medium-sized enterprises, offices, villas, and similar environments. Combines routing, AC management, and PoE functions in one device with centralized AP management support.

Features

• Routing, AC management, and PoE functions integrated in a single device

• Supports centralized AP management

• Dual WAN port backup redundancy, bandwidth overlay, and traffic load balancing

• Multiple authentication methods to control Internet access rights and marketing ads

• Efficient ACL for internal and external network security

• Supports remote management via cloud platform and mobile app

Specifications

Bandwidth

• Maximum Bandwidth: 2 Gbps

• Recommended Bandwidth: 1 Gbps

Ports

• 1 × 10/100/1000 Mbps RJ45 WAN Port

• 1 × 10/100/1000 Mbps RJ45 LAN/WAN Port (PoE supported)

• 7 × 10/100/1000 Mbps RJ45 LAN Ports (PoE supported)

LED Indicators

• RJ45 Ports: Link/Act

• Front Panel: SYS, Power

Input Power Supply

• DC 52V / 2.5A

PoE

• Standards: IEEE 802.3af, IEEE 802.3at

• Single Port Maximum Output: 30 W

• Total Maximum Output: 120 W

Network Protocols

• TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, MQTT, DNS, DDNS

Running State Monitoring

• Basic device information

• Interface status and traffic flow

• Cloud platform connectivity

• CPU, memory, and PoE resource utilization

• Real-time traffic information

• Network topology

• WAN and LAN status

Network Configuration

• WAN: DHCP, Static IP, PPPoE, dual WAN redundancy, bandwidth overlay, load balancing

• LAN and IPv6 settings

• DHCP management

• Network diagnostics

AP Centralized Management

• Centralized management templates, access lists, load balancing, roaming, RF tuning, wireless mode, upgrade management

• Supports unified management of up to 50 Foredge AP devices

• Terminal management: masking and rate limiting

• Typical load: 100 units

Security Management

• Internet filtering (IP, MAC, port, domain)

• Application group filtering (shopping, video, games)

• Dual WAN backup redundancy

• Access control lists (ACLs)

• Secure protocols: PPTP, L2TP

• Authentication: Web (one-click Internet access, portal ads), SMS (real-name or marketing via mobile)

Advanced Functions

• QoS

• DDNS

System Tools

• System time

• User management

• System logs

• Backup/restore

• System upgrade

• System restart

Heat Dissipation

• Natural heat dissipation

Environment

• Operating Temperature: –20 °C to 50 °C

• Operating Humidity: 10%–90% RH (non-condensing)

• Storage Temperature: –40 °C to 70 °C

• Storage Humidity: 5%–90% RH (non-condensing)

Physical Specifications

• Dimensions: 185 × 100 × 28 mm (W × D × H)
