SOCKET GEDORE RED SET 1/4 INCH PLUS 1/2 INCH 10 TO 32MM 100
PIECES
Coupler in acc. with DIN 3120, ISO 1174, with ball locking device
Square drive as per DIN 3120, ISO 1174, with ball retention
groove
2C reversible ratchet: lever for reversing clockwise or anticlockwise
direction, push-button release, fine-toothed, oval head, dual-material
handle for ease in gripping, for sockets
Socket 1/4 inch plus 1/2 inch: hex, metric, as per DIN 3124, ISO
2725
Socket extension 1/4 inch plus 1/2 inch
Sliding T-bar with slider 1/4 inch: as per DIN 3122, ISO 3315
Universal joint 1/4 inch + 1/2 inch: screwed-on joint , as per DIN
3123 - C 12.5
Bit adaptor 1/4 inch: with female square and in-hex, for all bits and
tools with 1/4 inch external hex
Bit 1/4 inch: hex, slotted, PH, PZ, TX fits holder as per DIN ISO
1173 - D 6,3
Combination spanner: as per DIN 3113, Form A, ISO 3318, ISO 7738, 15°
ring side angle, 15° jaw position
Hexagon socket key set: 9-piece, in plastic socket holder, with ball
head, for in-hex screws
Adjustable wrench: 15° jaw position, head polished with laser-marked
scale
1C screwdriver slotted, PH
Side cutter: dual-material handle, hands-friendly transfer of
force
Straight telephone pliers: straight gripping surfaces, toothed
lengthways, dual-material handle, hands-friendly transfer of force
Water pump pliers, 7-setting adjustment: head and joint polished,
dual-material handle, hands-friendly transfer of force
Engineers’ hammer: forged hammer head, in black, of tempered
steel
Plastic case in GEDORE red Design
Clamp-secured tools
Metal hinges or fastener

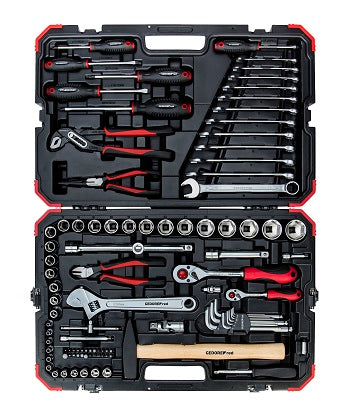

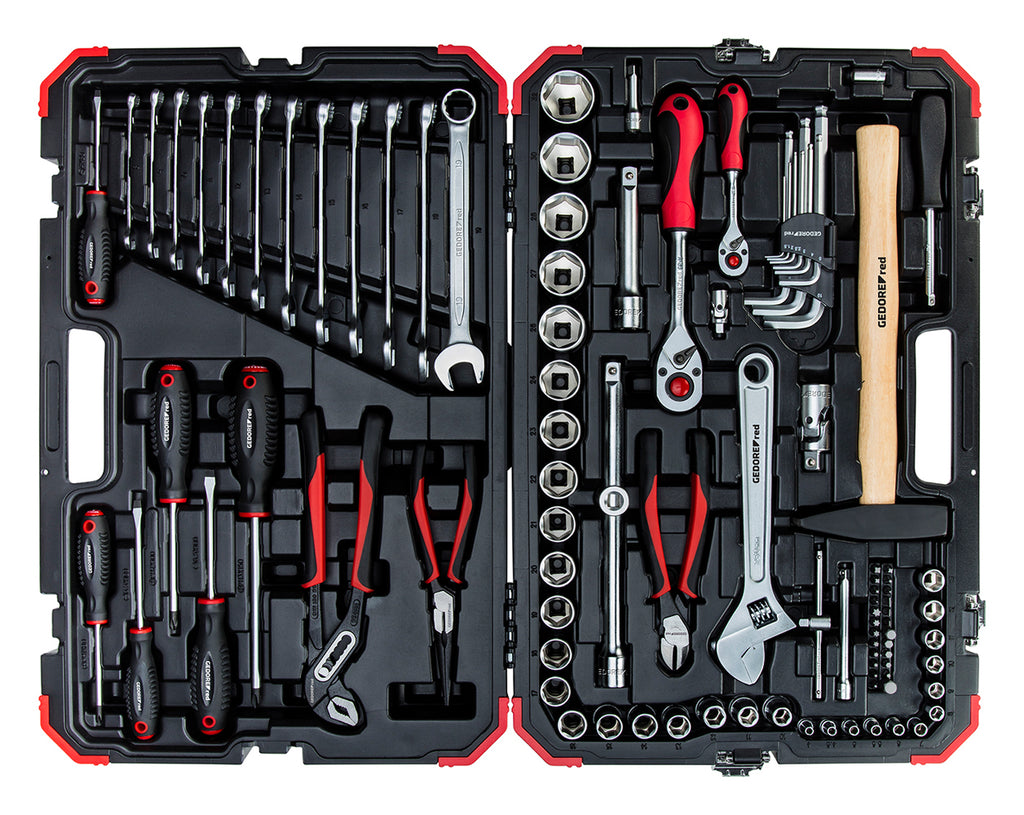

Contents
1/4 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – length
150 mm
1/4 inch square plug-in handle 165 mm
1/4 inch socket hexagon 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13
mm
1/4 inch socket extension 50 100 mm
1/4 inch sliding T-bar with slider - length115 mm
1/4 inch universal joint – length 32 mm
Bit adapter 1/4 inch sq. x 1/4 inch hex – length 25 mm
1/4 inch bits in-hex 3 4 5 6 8 10 – length 25 mm
1/4 inch bits slotted 4 5.5 7 – length 25 mm
1/4 inch bits cross-head PH 1, 2, 3, 4 – length 25 mm
1/4 inch bits cross-head PZ 1, 2, 3 – length 25 mm
1/4 inch bits TX T8, T10, T15, T20, T25, T27, T30, T40 – length 25
mm
1/2 inch 2C lever reversible ratchet, fine-toothed, 72 teeth – length
250 mm
1/2 inch socket hex 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21,
22, 23, 24, 26, 27, 28, 30, 32 mm
1/2 inch socket extension 125, 250 mm
1/2 inch universal joint – length 65 mm
Socket extension piece or slider 3/8 inch x 1/2 inch – length 44
mm
Combination spanners 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
mm
Hexagon socket key set 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 mm
Adjustable spanner 10 inch 250 mm
Screwdriver slotted 4, 5.5, 6.5
Screwdriver cross-head PH 1, 2, 3
Side cutter 180 mm
Telephone pliers 200 mm
Water pump pliers 10 inch 250 mm
Hammer 500 g
CODE: GEDR46003100
BARCODE: 4060833000635
HEIGHT: 10.0cm
LENGTH: 55.5cm
WIDTH: 36.5cm
MASS: 9.9kg
