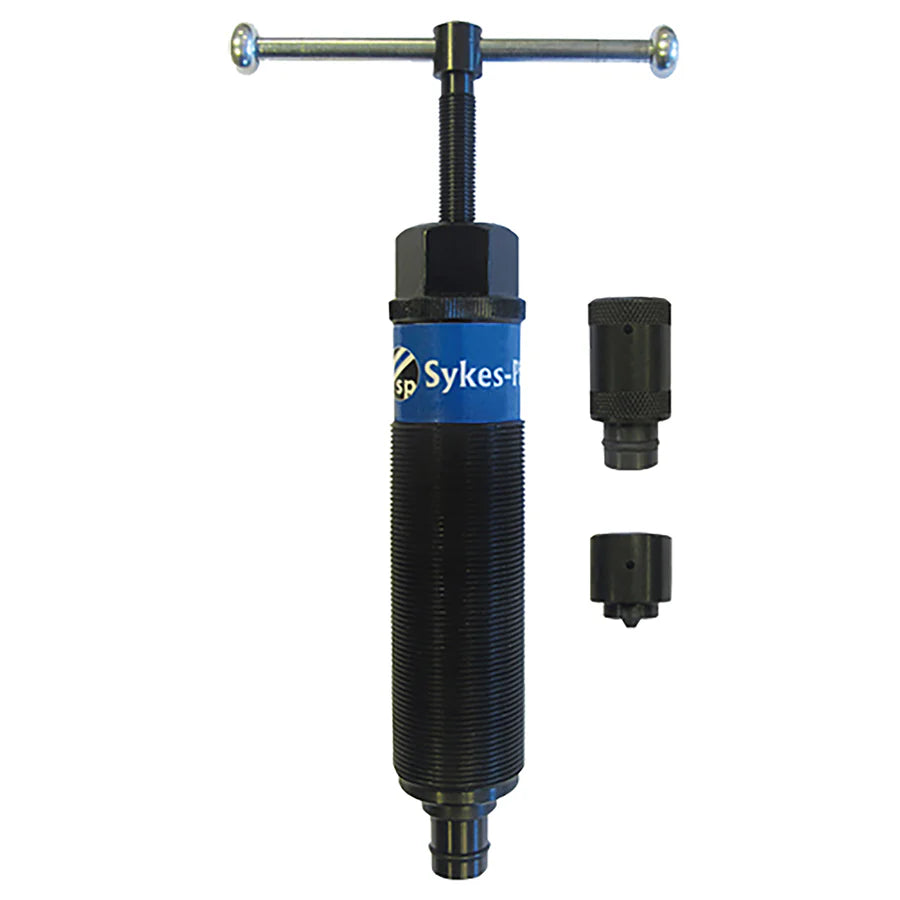

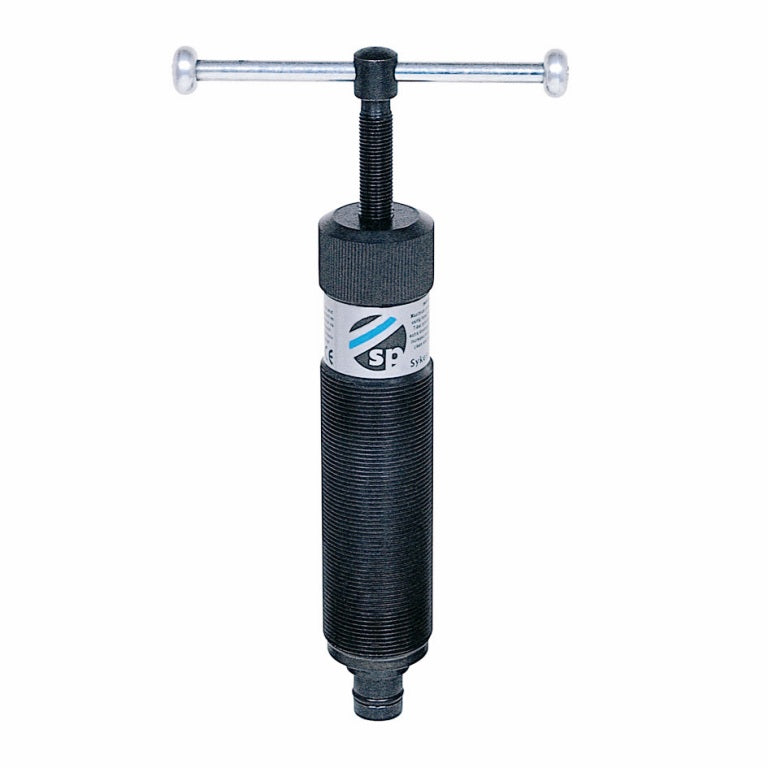

SYKES PULLER RAM HYDRAULIC
Standard power unit for SP hydraulic
pulling options and can also be used with many alternative SP puller
applications e.g. 3 leg pullers, ball joint pullers, hub pullers,
suspension bush removers etc
Diameter 1 1/2 inch
Thread 16Tpi
Whitworth
Grease filled
Direct force improves stability under
load
Provides maximum withdrawal force of
80kN
New hex head makes it possible to
increase pre-load capability up to 4 tonnes - with the use of a
30mm wrench
When hydraulic power is applied, the
full force is achieved with little loss of ram
travel
As the workpiece starts to release,
more stroke and power can be applied to ensure a good safe
removal
CODE:
SYK150000
BARCODE: 5012737970964
HEIGHT: 6.0cm
LENGTH: 33.0cm
WIDTH:
16.5cm
WEIGHT: 1.55kg
DIAMETER: 1 1/2 inch
THREAD: 16TPI
Whitworth
MAXIMUM WITHDRAWAL FORCE: 80kN
