Description

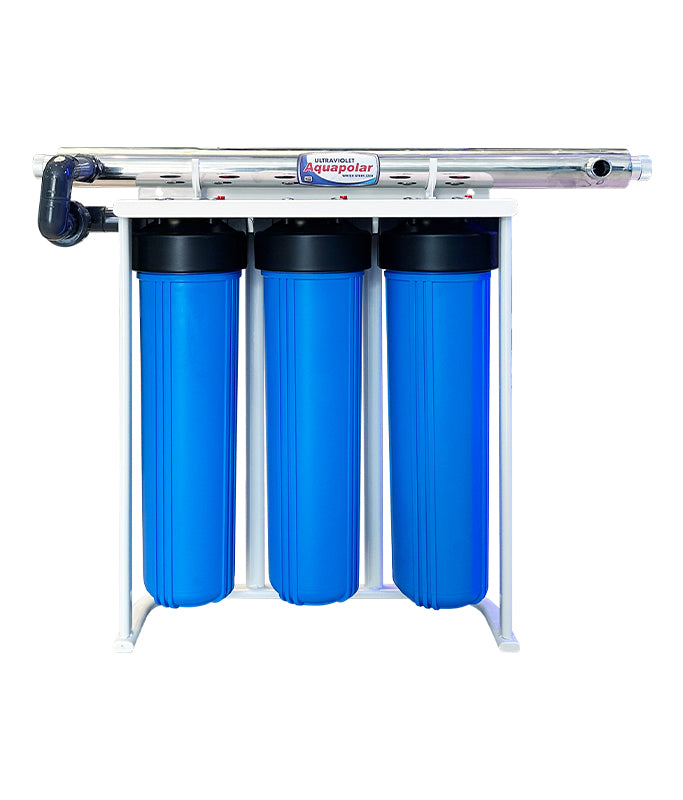

Our Big Blue (Fat) 3 Stage Whole House Water Filter is ideal for improving the water quality to your home. This Unit is designed for wall and floor-standing applications.
The 3 Stage Big blue water filter has a flow rate of 2750l/ph and is used to purify the supply of your main incoming water in the supply line. The 3 stage filter removes sediment, odors, chemicals, and non-beneficial bacteria and nitrates ect. from your water. The 3 stage filtration is also used as a pre-filtration for reverse osmosis.
Big Blue water filters allow for minimal pressure reduction and extended filter life.
*Filter cartridges need replacement every 6 to 12 months, depending on water quality.
What’s in the box? 3x Blue Fat Housings (Assembled on the bracket) (the plumbing fittings/connectors are not included)
1x Mounting Bracket (Assembled) *Excludes the Fastening bolts/screws to mount against a platform
1x Spanner to easily remove and replace housing in the event of replacing a cartridge
2x Sediment Filter (PP) (Inside Housing)
1x Carbon Block Filter (CTO) (Inside Housing)
1x 55W UV Sterilizer
System works best with a 55w UV Sterilizer to kill bacteria, protozoa and algae.
The filter cartridges are already placed in their respective housings in the order required for the system to function as needed.
Below is an example of how this unit needs to be installed (Pressure Gauges and Shut off Valves are optional)
Typical Installation Diagram
Typical UV Installation Diagram
Recommended Applications
The 3 Stage Big blue water filter has a flow rate of 2750l/ph and is used to purify the supply of your main incoming water in the supply line. The 3 stage filter removes sediment, odors, chemicals, and non-beneficial bacteria and nitrates ect. from your water. The 3 stage filtration is also used as a pre-filtration for reverse osmosis.
Big Blue water filters allow for minimal pressure reduction and extended filter life.
- Unlike an RO system, this system will NOT reduce Total Dissolved Solids (TDS), thus it keeps the healthy minerals in the water.
- The first stage high capacity polypropylene sediment filter achieves filtration down to 5 microns. The second and third-stage CTO Carbon Block filter uses high-quality coconut shell carbon for maximum filtration efficiency and filter life. Both are tested by an independent third-party to meet NSF/ANSI Standards. Both filters have a capacity of 100,000 gallons of water to supply one full year of clean water for a family of four.
*Filter cartridges need replacement every 6 to 12 months, depending on water quality.
What’s in the box? 3x Blue Fat Housings (Assembled on the bracket) (the plumbing fittings/connectors are not included)
1x Mounting Bracket (Assembled) *Excludes the Fastening bolts/screws to mount against a platform
1x Spanner to easily remove and replace housing in the event of replacing a cartridge
2x Sediment Filter (PP) (Inside Housing)
1x Carbon Block Filter (CTO) (Inside Housing)
1x 55W UV Sterilizer
System works best with a 55w UV Sterilizer to kill bacteria, protozoa and algae.
The filter cartridges are already placed in their respective housings in the order required for the system to function as needed.
Below is an example of how this unit needs to be installed (Pressure Gauges and Shut off Valves are optional)
Typical Installation Diagram
Typical UV Installation Diagram Recommended Applications - Rainwater Filtration
- Municipal Water Filtration
- RO Pre-treatment
- Borehole Pre-Filtration
- Chemical Filtration
