Festool Cross Anchor Sv Qa D14 32

Name: Festool Cross Anchor Sv Qa D14 32
Brand: Festool
SKU: FES201351
Price: 1317.99 ZAR
Availability: InStock

SAVE R 28.00

FestoolSKU: FES201351

Price:

R 1,317.99 R 1,345.99

Tax included discounts and Shipping calculated at checkout

Stock:

Only 2 units left

Quantity:

Available for pickup

Usually ready in 12 to 72 hours

Share this product

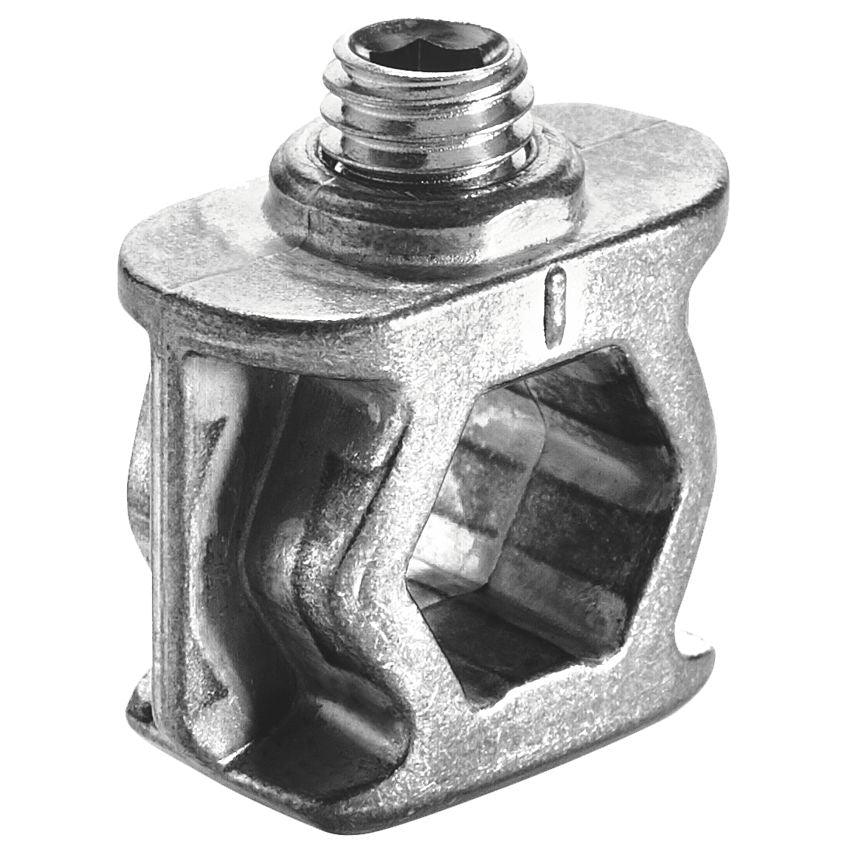

Festool Cross Anchor Sv Qa D14/32

Order Number:&Nbsp;Fes201351

Model:&Nbsp;Sv Qa D14/32&Nbsp;

Connect Even Quicker, And Release If Necessary. The Domino Connector Revolution.

The Domino Connector Revolution: Produce Perfect Timber Connections Quicker And More Easily Than Ever Before. With The New Corner And Flat Connectors For The Domino Xl Df 700 Joining Machine, We Have Made Further Revolutionary Developments To The Domino Idea. These Connectors Provide Frame, Rack And Board Connections That Will Impress You With Extreme Precision And Stability As Well As Maximum Flexibility And Unique Efficiency.

Connect Even Quicker, And Release If Necessary. The Domino Connector Revolution.

Strengths And Benefits

The Sv Qa D14 Cross Anchor Combines With The Sv Ab D14 Anchor Bolt And The Sv Sa D14 Split Anchor To Form The Corner Connector, Or Combines With The Sv Db D14 Double Headed Bolt And Optionally With The Sv V D14 Widener To Form The Flat Connector. All Parts Are Available Either In The Domino Sv Sys D14 Domino Verb Connection Systainer, As An Ev/32 Set, As An Fv/16 Set Or Individually As Individual Parts
The Corner And Flat Connector System For The Domino Xl Df 700 Joining Machine Enables Stable Connections That Can Be Separated Again At A Material Thickness Of 30 Mm Or Higher
For Frame And Rack Joints (Corner Connectors) And Board Connections (Flat Connectors) That Will Impress You With Extreme Precision And Stability As Well As Maximum Flexibility And Unique Efficiency
Extremely Quick Thanks To Simple Milling Using Machine Stops Or Pencil Markings. No Template Or Other Accessories Required
Extremely Stable With Dowel And Clamping Element For Strong Connections. High Pulling And Tightening Distance. Extremely High Pull Out And Load Forces
Extremely Flexible And Can Be Detached Again Quickly If Necessary
With Cover Caps In Three Colours For A High Quality Corner Connection Appearance

Main Areas Of Use

For Furniture Designs That Can Be Dismantled Such As Beds, Tables, Etc.
For Creating Detachable Flat Connections For Furniture Manufacturing Such As Kitchen Worktops, Benches, Etc.

For Processing Using The Domino Xl Df 700 Joining Machine
At A Material Thickness Of 30 Mm Or Higher
Acts As A Counter Bearing And Tightening Element For Anchor Bolts Or Double Headed Bolts
With Soft Or Porous Material Such As Chipboard, The Use Of The Cross Anchor Expander Sv V D14 Is Recommended (For Material Thickness 35 Mm And Greater �� Stops The Cross Anchor Being Pulled Into The Material)
In Conjunction With Sv Sa D14 Split Anchors And Sv Ab D14 Anchor Bolts For Creating Corner Connections
In Conjunction With Sv Db D14 Double Headed Bolts For Creating Flat Connections

Items Included
32 X Set Screws, In Carton

Warranty All Inclusive
