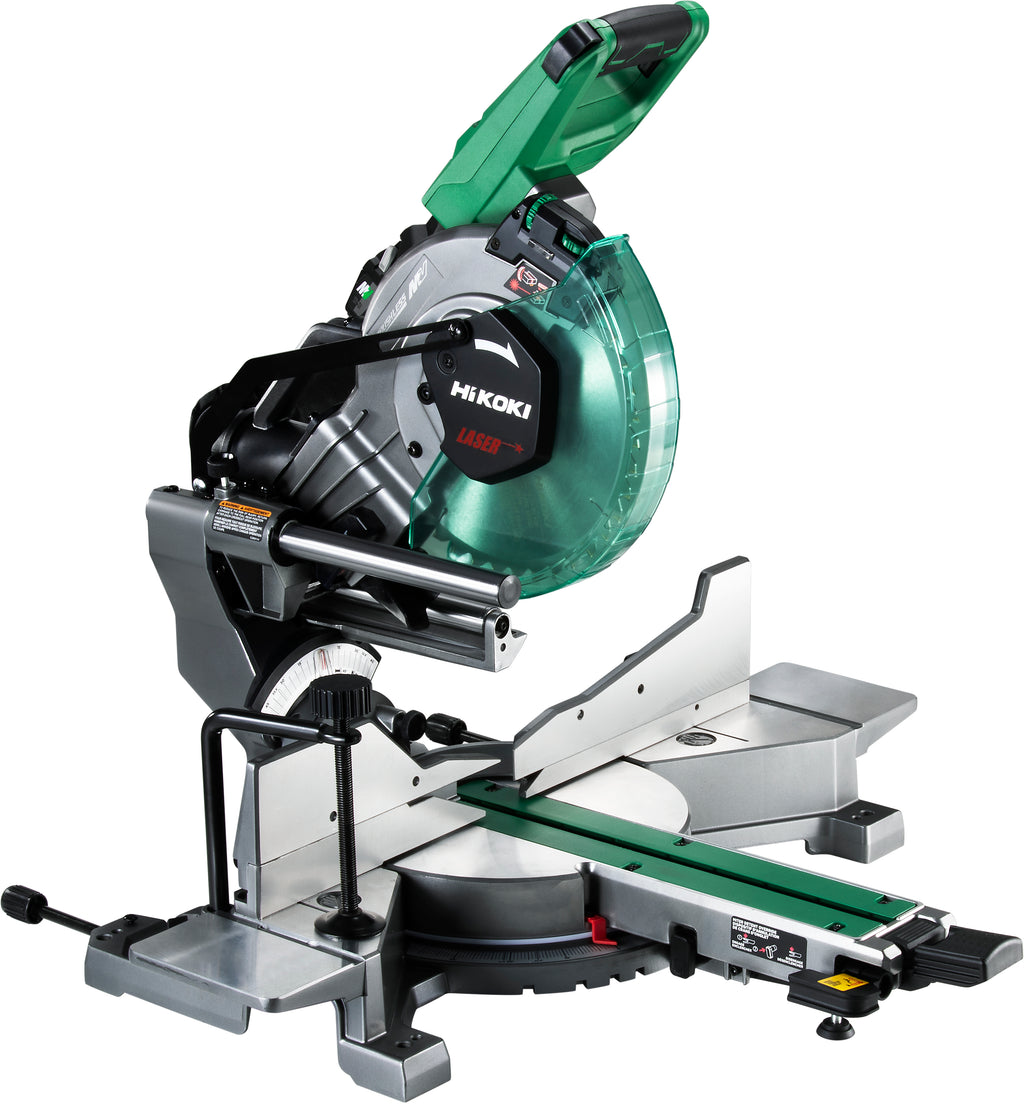

HIKOKI MITRE SAW 255MM 36V MACHINE ONLY
Compound Slide Miter Saw 255mm Multi Volt Brushless
Machine only – Carton
Features
Accepts ET36A AC DC Adapter for continuous operation
Compact slide system
Laser Marker: Guide system on cut line
LED light
Specifications
Blade Diameter: 255mm
Capacity (H x W):
0°, Right Angle: with anchor plate: 89 x 292mm
without anchor plate: 64 x 318mm
Miter Left, Right 45°: with anchor plate: 89 x 204mm
without anchor plate: 64 x 222mm
Bevel Left 45°: with anchor plate: 45 x 292mm
without anchor plate: 41 x 318mm
Bevel Right 45°: with anchor plate: 25 x 292mm
without anchor plate: 19 x 318mm
Miter Left, Right 45°+ Bevel Left 45°:
with anchor plate: 45 x 204mm
without anchor plate: 41 x 222mm
Miter Left/Right 45°+ Bevel Right 45°:
with anchor plate: 25 x 204mm
without anchor plate: 19 x 222mm
Voltage: 36V
No Load Speed: 4 000 per minute
Miter Angle: Right: 0 – 60 Degrees
Left: 0 – 55 Degrees
Bevel Angle: Right: 0 – 48 Degrees
Left: 0 – 48 Degrees
Positive Miter Angle Stop : 0, Right and Left 15, 22.5,
31.6, 45 Degrees
Dimensions: 778 x 792 x 686mm
Weight: 20.6kg
Standard Accessories: Blade, Dust Bag, Vise Ass’y,
Wrench, Battery Covers,
Support Rod Ass’y, Screws
CODE: HTC-C3610DRA-E4
BARCODE: 4966376328154
WEIGHT: 20.6kg
