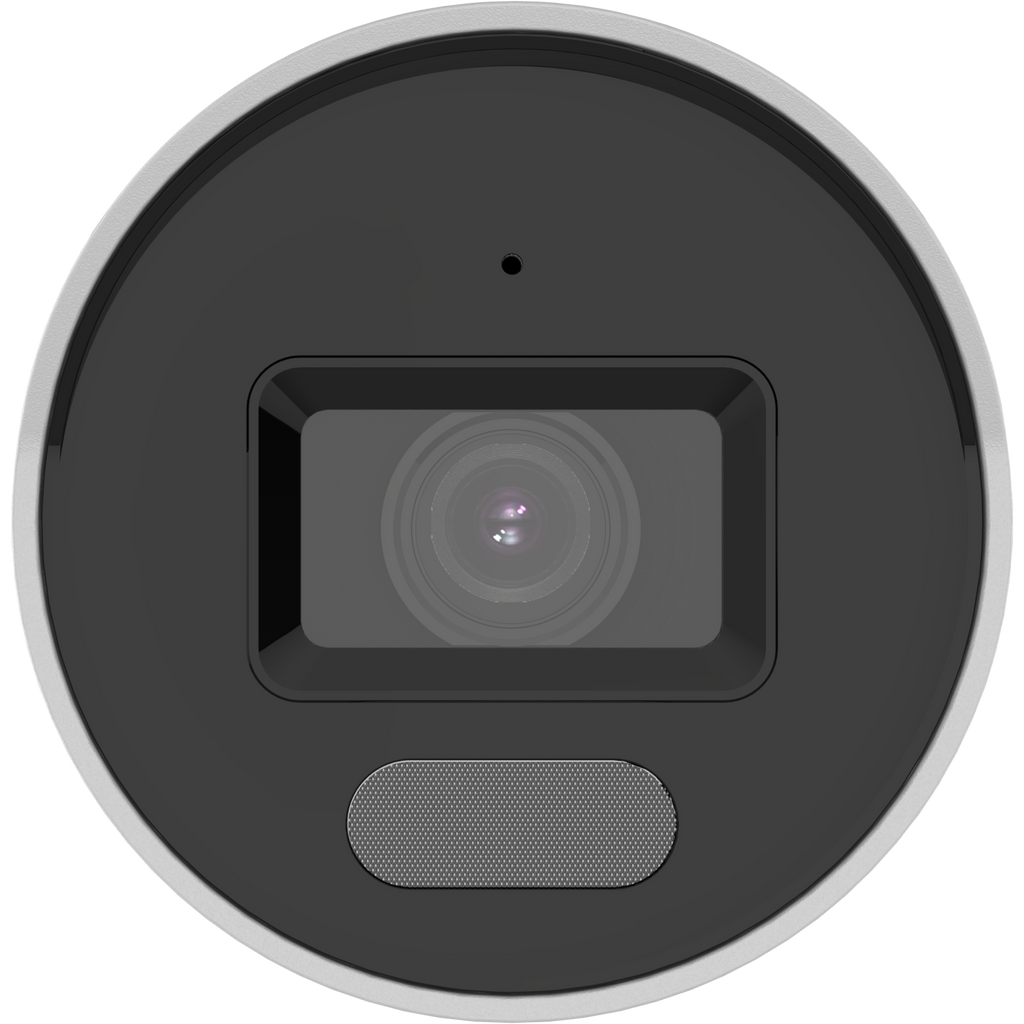

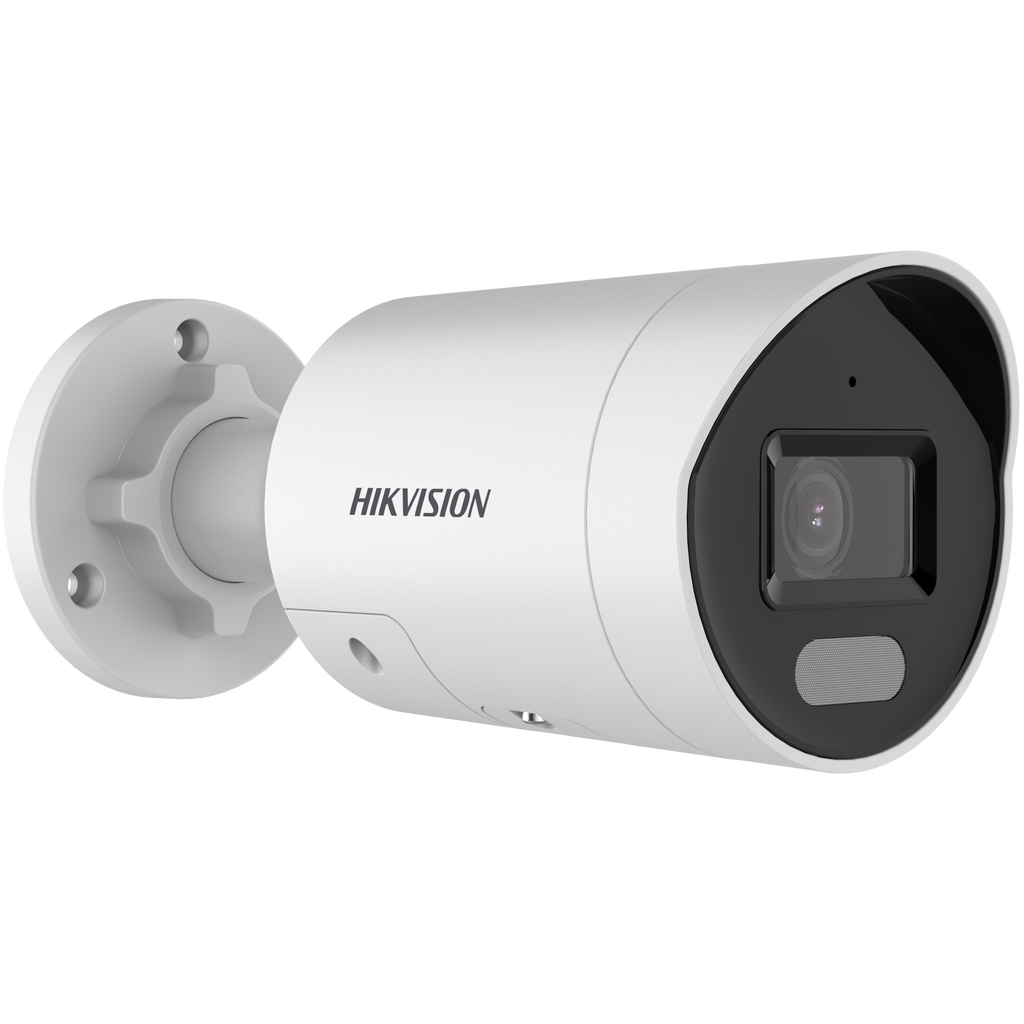

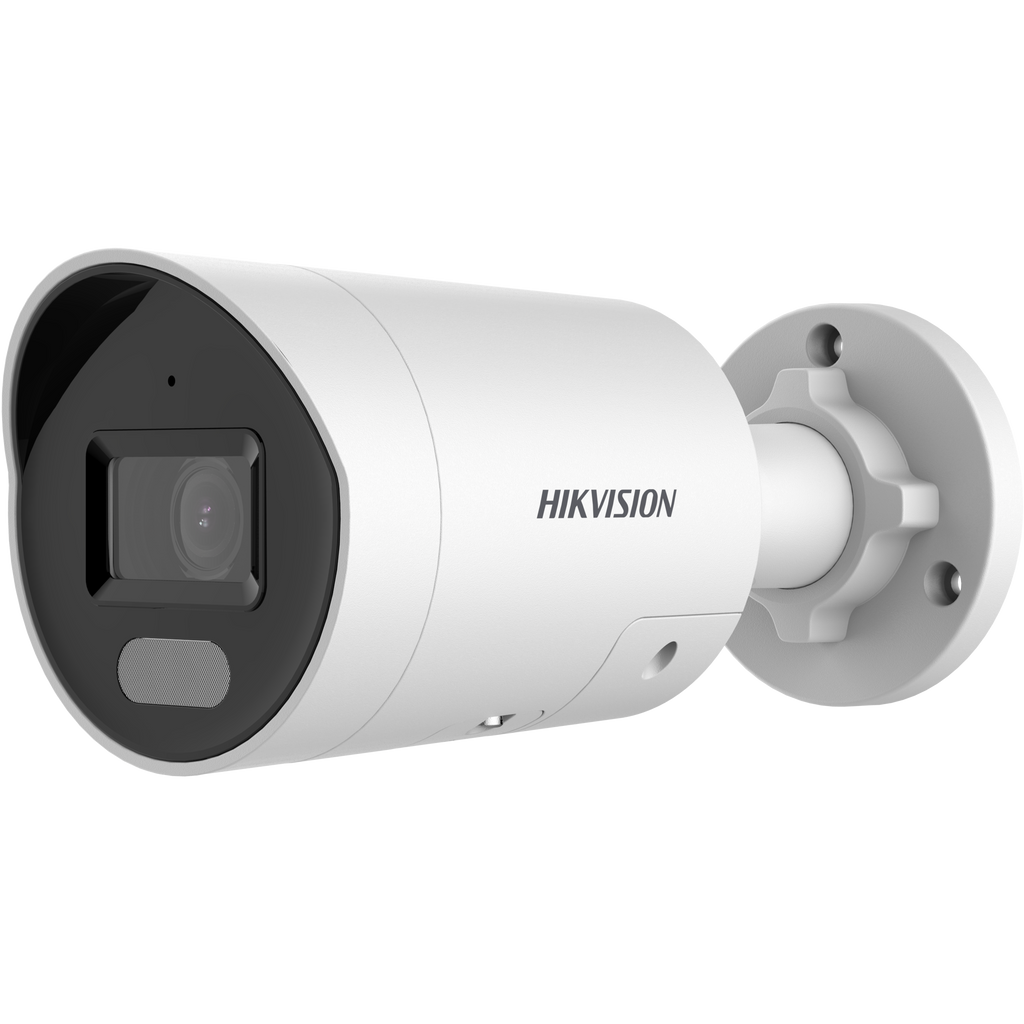

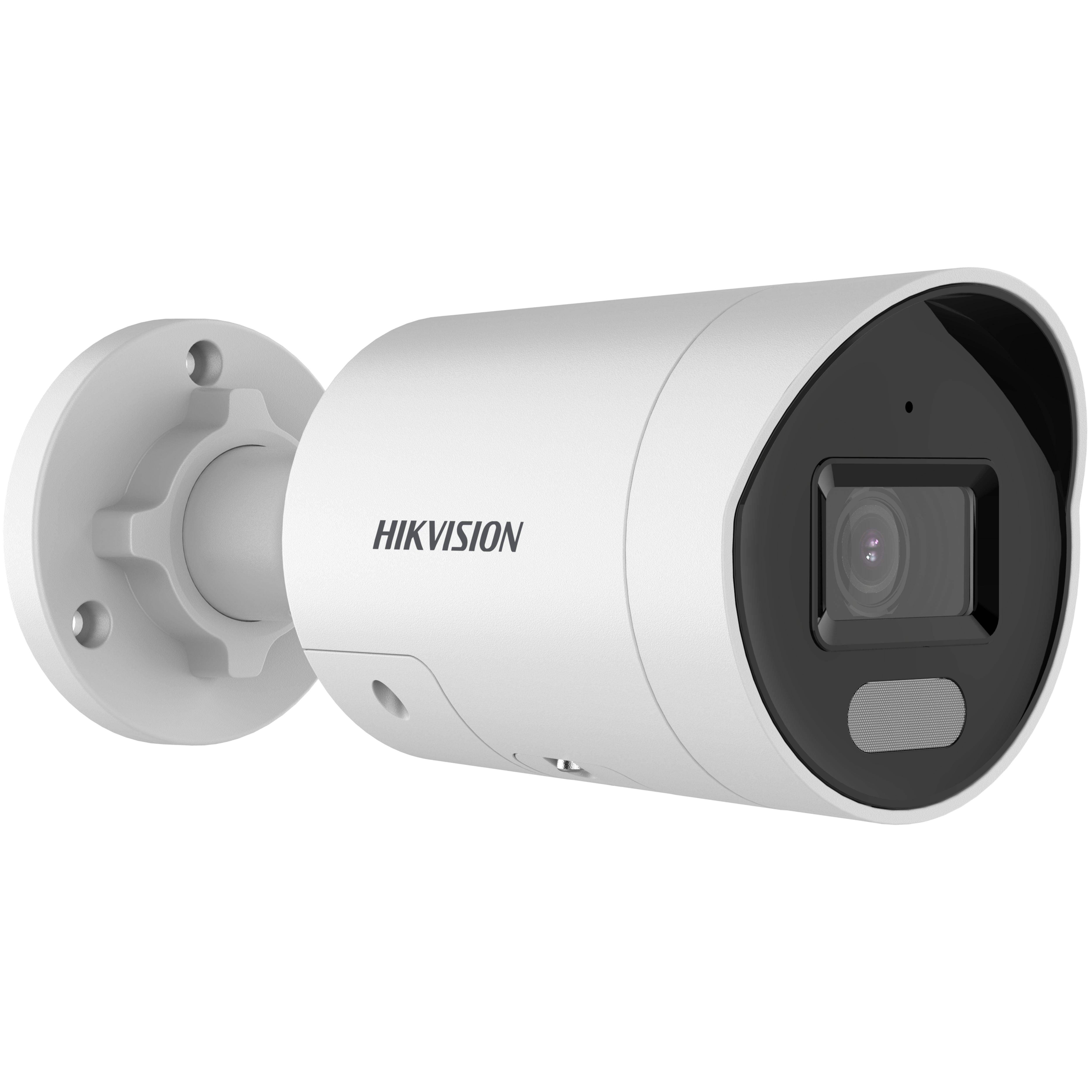

Hikvision 4MP AcuSense Mini Bullet Camera – Strobe Light & Audible Warning – IP67
The Hikvision AcuSense Mini Bullet Camera combines intelligent surveillance with active deterrence, offering strobe light and audible alarms for real-time intruder warnings. Powered by deep learning technology, it delivers 4MP high-resolution imaging, human and vehicle classification, and smart hybrid lighting for long-range clarity. Supports 12VDC and PoE installation, with on-board storage support up to 512 GB.
Features
-
4MP high-resolution imaging with 130 dB WDR for clear video
-
Smart Hybrid Light: IR & White Light up to 40 m
-
Built-in strobe light and audio alarm to deter intruders
-
Deep learning-based human and vehicle classification
-
Real-time two-way audio for monitoring and communication
-
Efficient H.265+ compression for reduced bandwidth and storage
-
Supports on-board storage via microSD card up to 512 GB
-
Hikvision Embedded Open Platform (HEOP) for third-party applications
-
IP67-rated weather and dust resistance for outdoor use
-
Perimeter protection: line crossing, intrusion, region entrance/exiting
-
Advanced events: motion detection, scene change, unattended baggage, object removal, audio exception, defocus detection
-
Built-in microphone and speaker
Specifications
Camera
- Sensor: 1/3" Progressive Scan CMOS
- Max Resolution: 2688 × 1520
- Min Illumination: 0.001 Lux (Color), 0 Lux with light
- Shutter: 1/3 s to 1/100,000 s
- Day/Night: IR cut filter
- Angle Adjustment: Pan 0–360°, Tilt 0–90°, Rotate 0–360°
Lens
- Type: Fixed focal lens, 2.8mm or 4mm
- FOV: 2.8mm: H 100.2°, V 54.7°, D 119.7°; 4mm: H 81.1°, V 44.7°, D 94.6°
- Iris: Fixed, Aperture F1.0
- Depth of Field: 2.8mm: 1.9 m–∞; 4mm: 2.5 m–∞
Illuminator
- Type: Smart Hybrid Light (IR + White Light)
- Range: Up to 40 m
- IR Wavelength: 850 nm
HEOP & Deep Learning
- Memory: 60 MB system, 400 MB smart RAM, 2 GB eMMC
- Computing Power: 1.5 TOPS
- Supported Frameworks: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
- Programming Languages: C, C++
Video
- Streams: Main, Sub, Third, Fourth (fps up to 30 depending on resolution)
- Compression: H.265/H.264/H.264+/H.265+
- Bitrate: 32 Kbps – 8 Mbps
- ROI: 5 fixed regions
Audio
- Built-in Microphone & Speaker
- Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
- Audio Type: Mono, 64 Kbps – 320 Kbps
Network & Security
- Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, SRTP
- Users: Up to 32 (Admin, Operator, User)
- Security: Password, HTTPS, 802.1X, IP filter, watermark, TLS, MAC authentication
Storage
- On-board microSD up to 512 GB
- NAS: NFS, SMB/CIFS, ANR support
Environment & General
- IP67-rated
- Power: 12 VDC ±25%, 0.7A, max 8.5 W / PoE IEEE 802.3af Class 3, max 10 W
- Material: Metal body, cover, and bracket
- Dimensions: Ø74.4 × 179.2 mm
- Weight: 525 g (camera), 750 g (with packaging)
- Operating/Storage Temp: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% non-condensing
Languages Supported
- 33 languages including English, Spanish, French, German, Chinese, Japanese, Korean, Portuguese, Russian
Approvals
- EMC: CE-EMC, RCM, IC
- Safety: UL, CB, CE-LVD, BIS, LOA
- Environment: CE-RoHS
