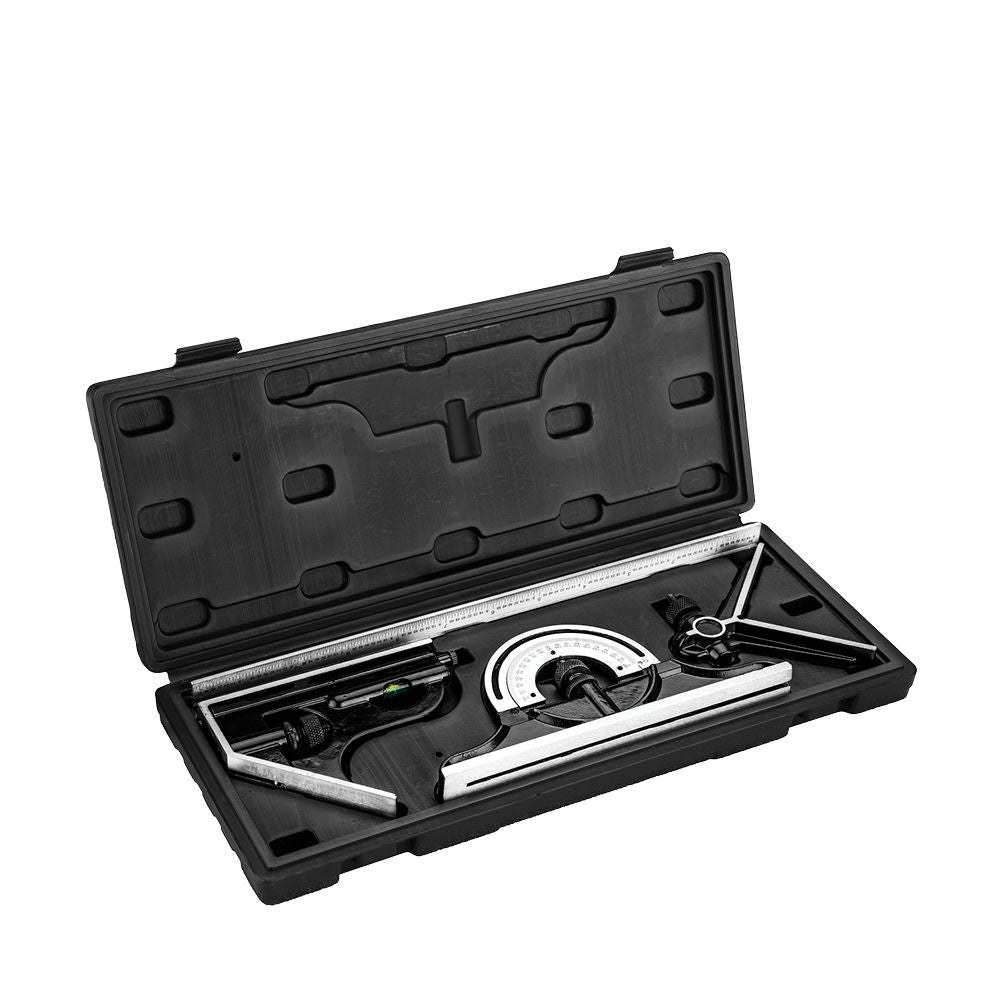

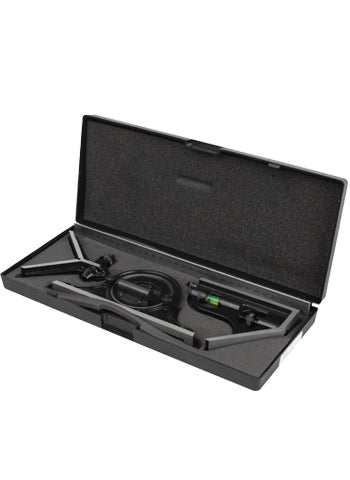

SQUARE GROZ COMBINATION SET 180-910
An exceptional set which combines several tools: Try squares, miter,
depth gauge, height gauge, marking gauge, level and a precision rule
Constructed from high quality cast iron
Comprises:
Square Head
Highly versatile layout tool for scribing right angles and parallel
lines
Precisely ground 90 degrees square face and a 45 degrees miter
face
Used as a measuring tool that can work as a try square, miter, depth
gauge, height gauge and a level
Center Head
Used for accurately locating center of a cylindrical or square work
piece
Protractor Head
Includes revolving turrets with direct reading double graduations
from 0 to 180degrees in opposite directions,
This permits accurate and quick direct reading of angles above or
below the blade
Steel Rule
Precision Steel Rule with shoulder on one side, Rule is 12 inch (300
mm) long x 1 inch
(25 mm) wide x 2 mm thick
Graduated with 0.50 mm and 32nds on one side and 1.0 mm and 64ths on
the reverse side
CODE: GRO6530
BARCODE: 8901486010700
HEIGHT: 5.5cm
LENGTH: 33.5cm
WIDTH: 18.5cm
WEIGHT: 1.52kg
