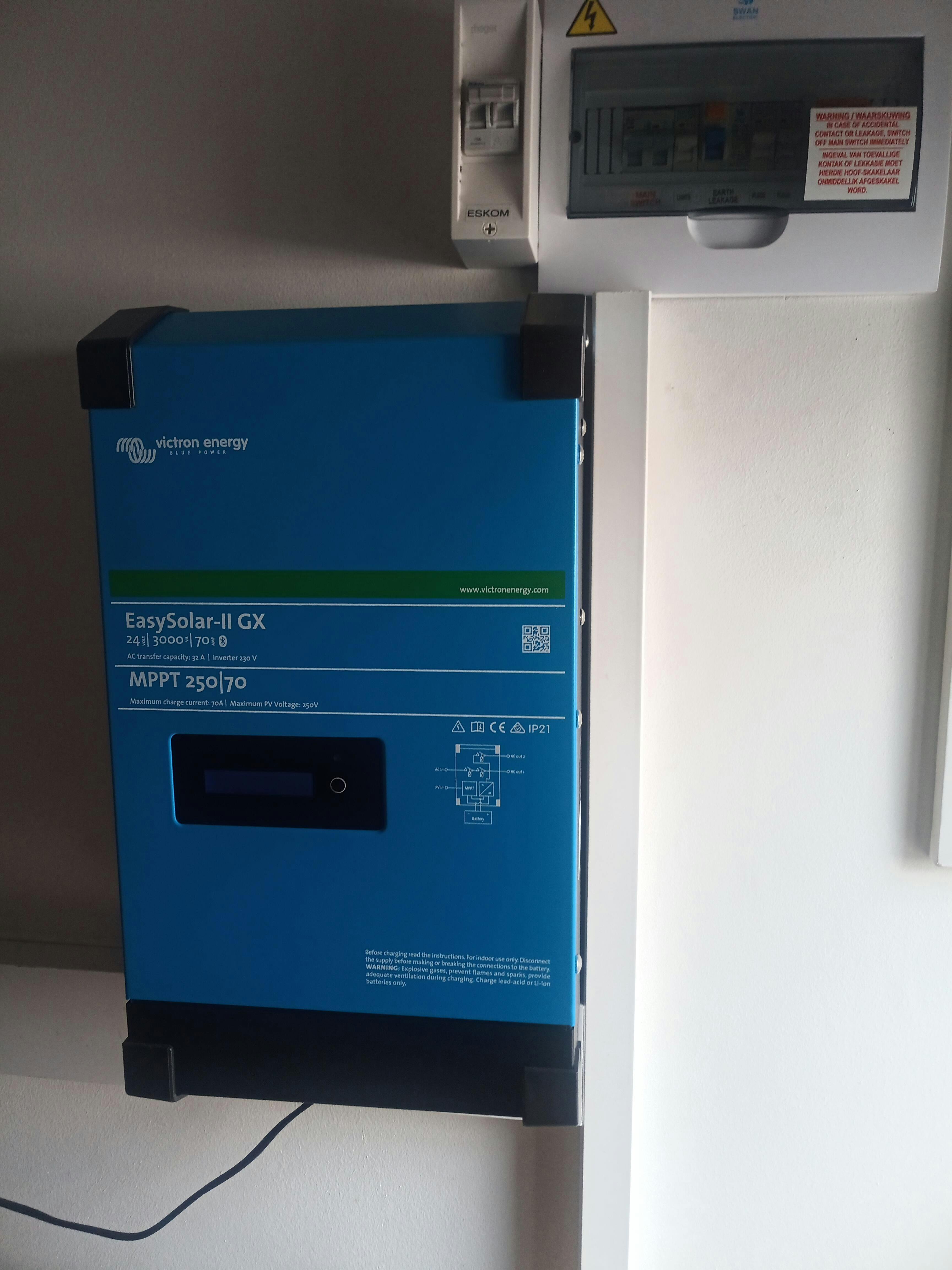

Victron EasySolar-II 24/3000/70-32 MPPT 250/70 GX Inverter Charger

The all-in-one solar power solution The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16 character display. These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and wifi The display reads battery, inverter, and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other wifi enabled device.
In addition, wifi can be used to set up the system and to change settings.
Solar charge controller The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device The integrated GX device includes:

• A VE.Can interface. This can be used to connect to Victron VE. Can devices (e.g. VE. Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery
• A USB port
• An Ethernet port
• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE. Bus and a VE.Direct connection.
