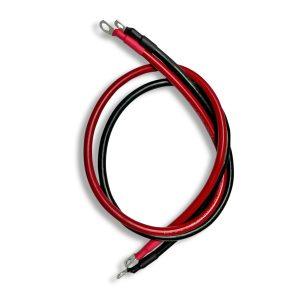

95mm2 3/0 AWG Battery Cable 150CM Red and Black Pair With 8mm Ring and 10mm Ring Lugs
DC Battery Cables for battery to battery or battery to inverter connections. Hydraulically crimped and insulated ring terminal lugs to minimise resistance and reduce the risk of a fire hazard. These cables have pure copper cores compared to aluminium cores that do not have an efficient CCC (Current Carrying Capacity).
While aluminium core cables are more popular on solar panel connections due to safety reasons and allow the cable to burn off internally and prevent fires, copper cables are in favor of battery connections to minimize voltage loss and current restrictions.
Therefore it is critically important to have battery cables professionally crimped and adequately sized for the application. Colour: Red and Black Pair One End Lug: 8mm Ring Other End Lug: 10mm Ring lug Strand Diameter: 0.3mm Cable Size AWG: 3/0 AWG Nominal Size MM2: 95mm2 Nominal External Diamter: 19mm Cable Type: DC Battery Cable Max Continious Current: 380 Amps Max Starting Current: 695 Amps Insulation/Wall Thickness: 2.6mm Max Resistance Mohm/km: 0.206 Conductor Type: Flexible annealded copper SABS 1411 Part 1 Class 5 resistance Operating Temperature: up to 70 C Stock Location: In Stock at Livestainable
