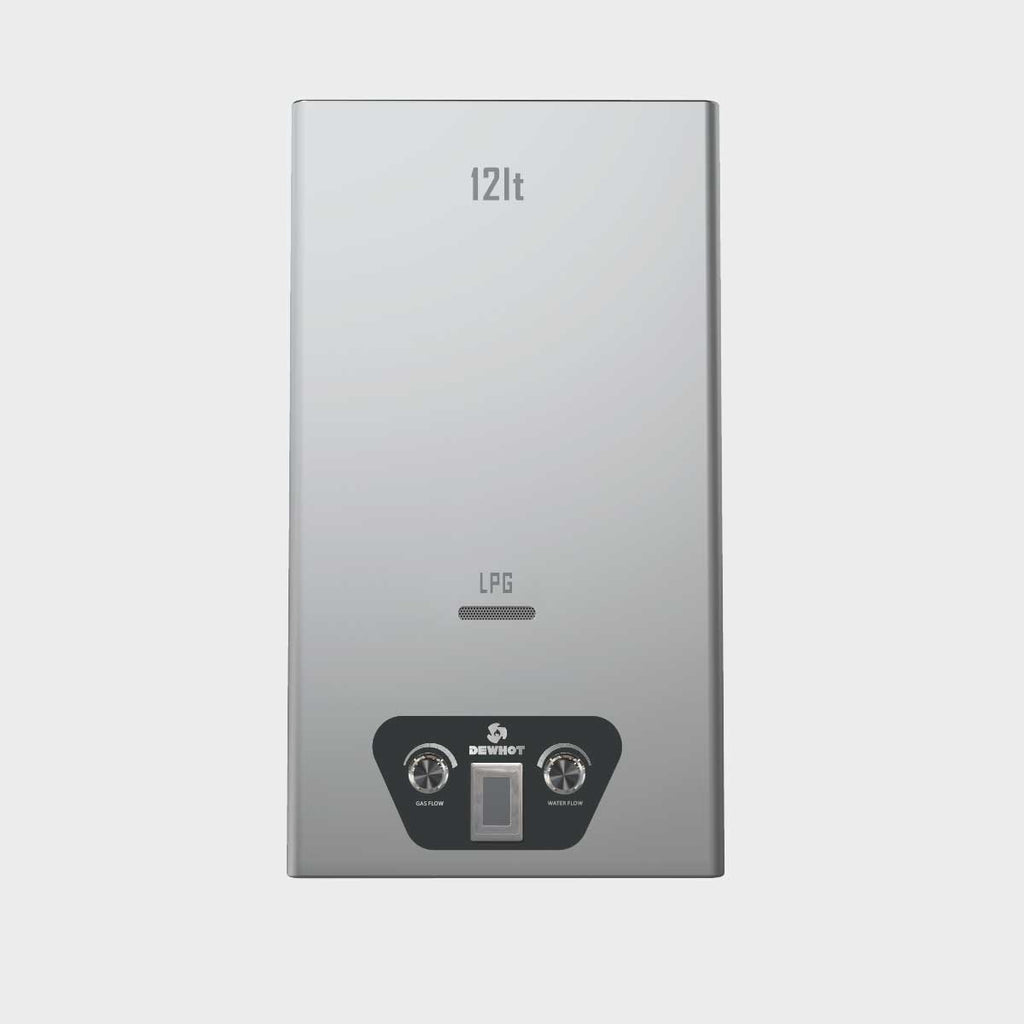

The Diaphragm Activated 12L Gas Geyser provides a reliable source of hot water with relatively low maintenance. This battery-ignited gas water heater can heat up to 12 litres of hot water per minute through a single outlet.
TYPE D install outdoors with a medium cover
Simple and reliable
Built with basic time-tested technology understood by most installers, diaphragm activated geysers provide a reliable hot water source with minimal maintenance needs.
Energy saving
Enjoy maximised energy savings with on-demand heating, only heating water as you need it.
Double safety
Flame shut-off and pressure relief protection for ultimate peace of mind.
Outdoor longevity
Install outdoors with a medium-size weather box cover to extend the lifespan and retain the warranty.
Features
- Diaphragm activated
- Requires no electricity – flame ignition and geyser functions are battery operated
- 84% energy efficiency
- Neat and compact Stainless steel cover
- LCD temperature display
- Flame failure safety device (FFD)
- Pressure relief protection (to function effectively,
the valve must be set to your water pressure)
Technical specifications
-
Max gas pressure: 2.8 kPa
-
Max gas consumption: 1.86 kg / hour
-
Rated Input: 24 Kw
-
Water pressure: 50-500 kPa
-
Water Output (min/max): 6L - 12L / min
-
Unit weight: 8.0 Kg
-
Unit size: 685 x 340 x 175 mm
-
Packaged weight: 9.35 kg
-
Packaged size: 710 x 395 x 210 mm
-
Gas Type : LPG
