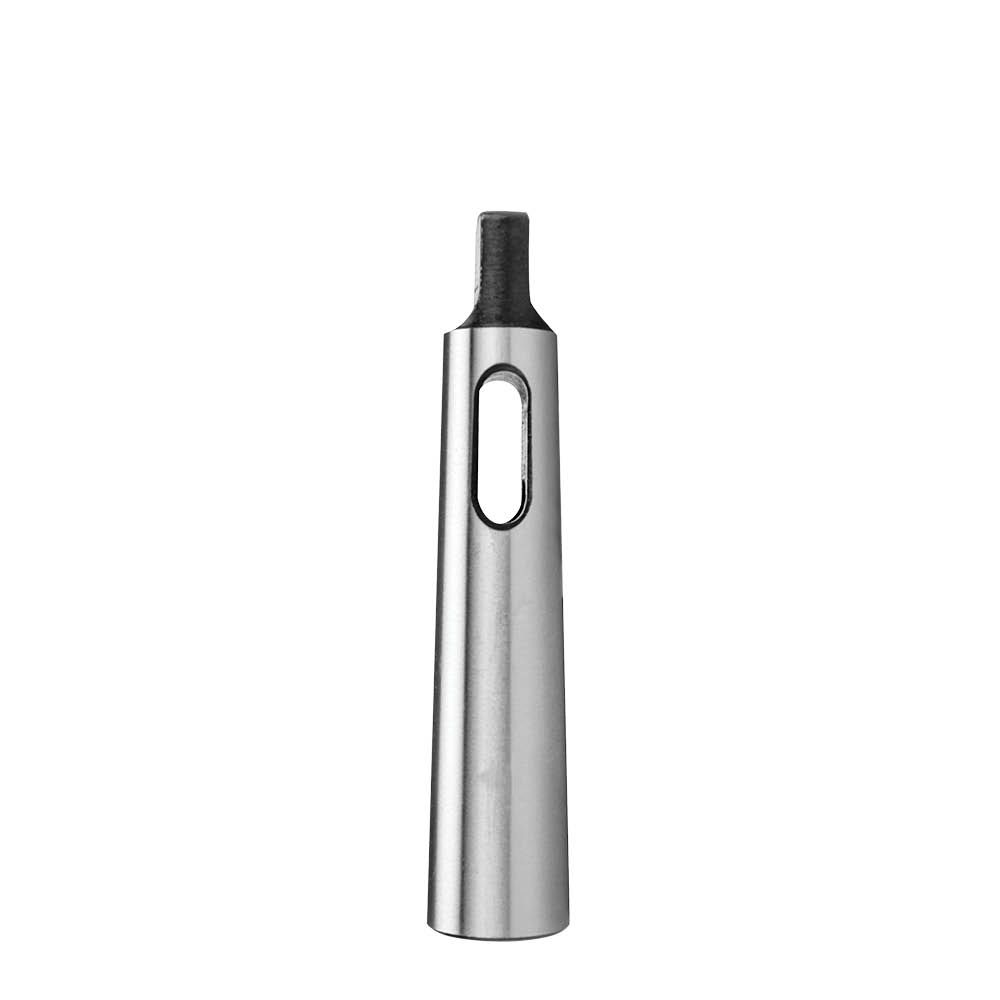

GROZ DRILL SLEEVE 2-3 TAPER DSW/3-2
Drill Sleeves are used to adapt smaller morse taper shank tools to
larger machine spindles
Concentricity and taper angles are precisely controlled for perfect
locking and concentric movement to the tool held
Available in two types:
Workshop Grade
Manufactured from carbon steel, these are ground on the outside and
have a reamed finish on the inside
Permanent marking of size on the tang ensures convenience in use
Specifications:
Material: Carbon Steel
Surface finish of external taper: Ground
Surface finish of internal taper: Reamed
Body Hardness: Unhard
Tang Hardness: 54 – 58 HRC
CODE: GRO1865
BARCODE: 8901486085234
HEIGHT: 2.7cm
LENGTH: 12.6cm
WIDTH: 2.7cm
WEIGHT: 0.19kg
GRADE: Workshop Grade
MORSE TAPER (MT): 3 Outside, 2 Inside
OVERALL LENGTH: 112mm
