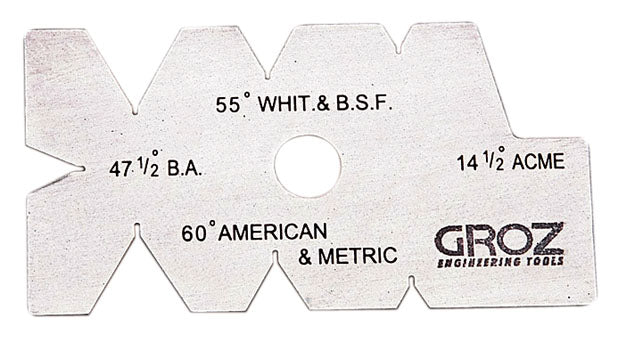

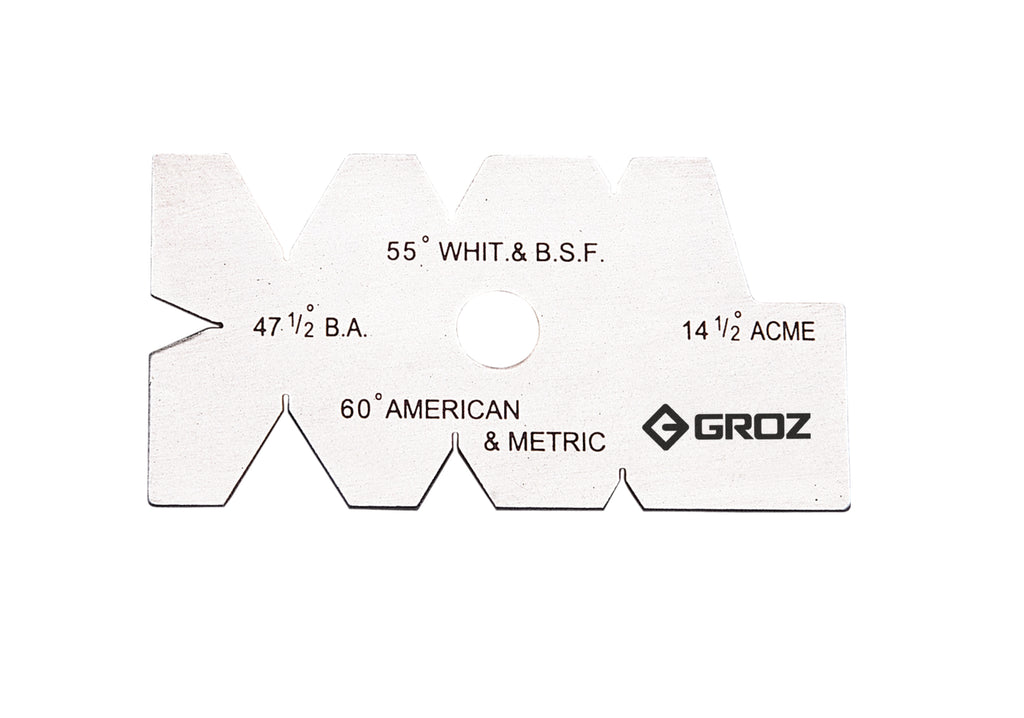

GROZ GAUGE SCREW CUTTING SCG4714
Manufactured from hardened and polished stainless steel
Gauge surfaces are accurately ground
Useful for checking tool angle while cutting threads in metal turning
lathes
The angle on the thread cutting tool is checked on the V slots in the
gauge
Specifications
Relief at the end of each slot enables proper seating of the cutting
tool in the slot thus ensuring correct angle
The gauge clearly indicates 55 degrees for Whitworth and BSF Threads;
47-1/2 degrees for BA Threads, 60 degrees for Metric and American
National Threads and 14-1/2 degrees for Acme threads
CODE: GRO1950
BARCODE: 8901486012230
HEIGHT: 0.1cm
LENGTH: 8.3cm
WIDTH: 4.5cm
WEIGHT: 0.01kg
