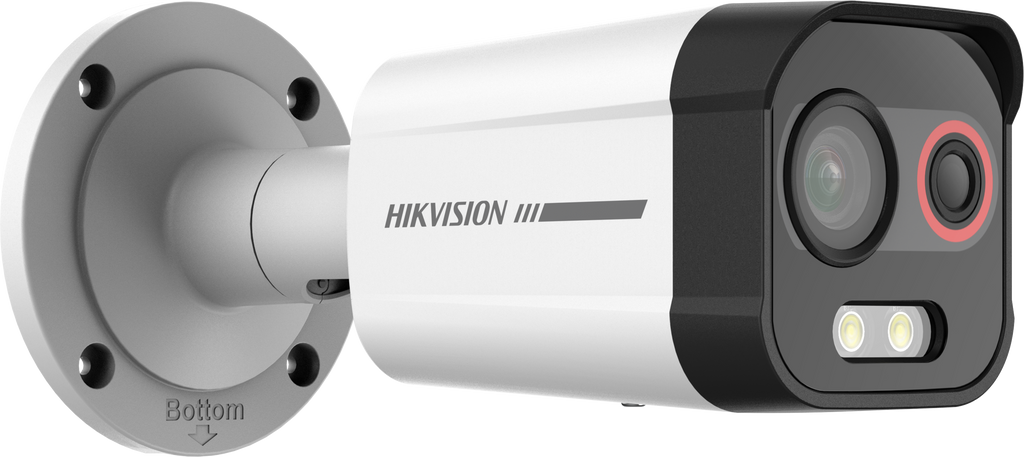

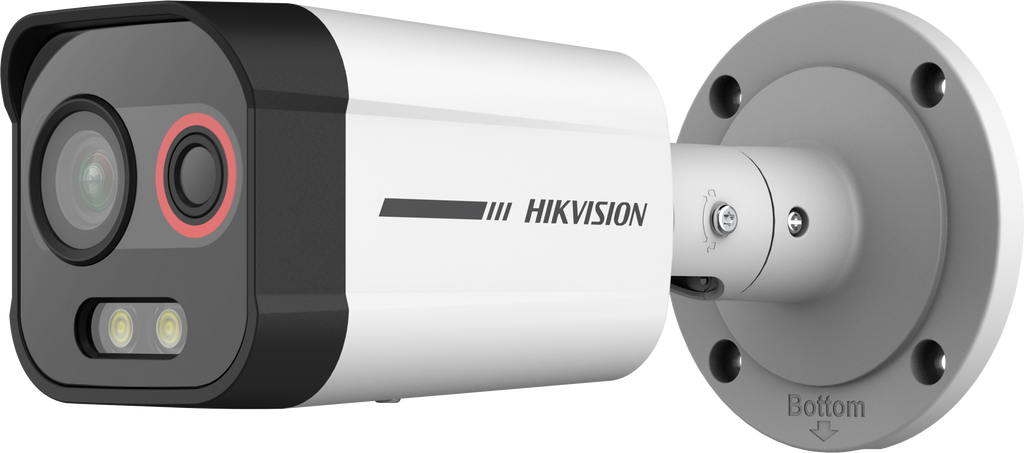

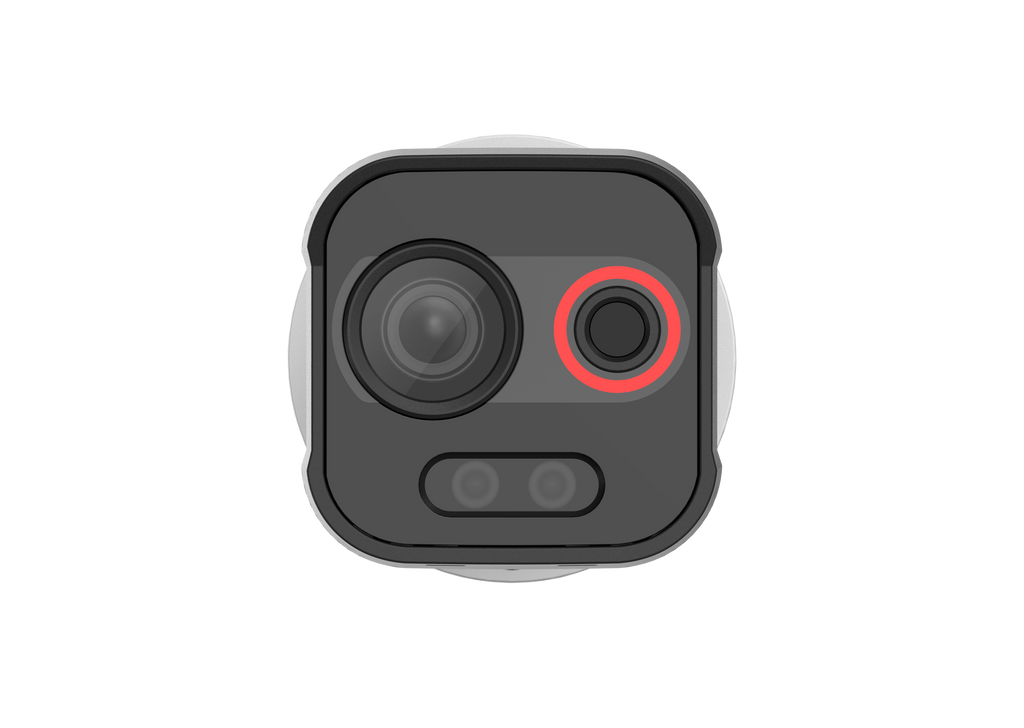

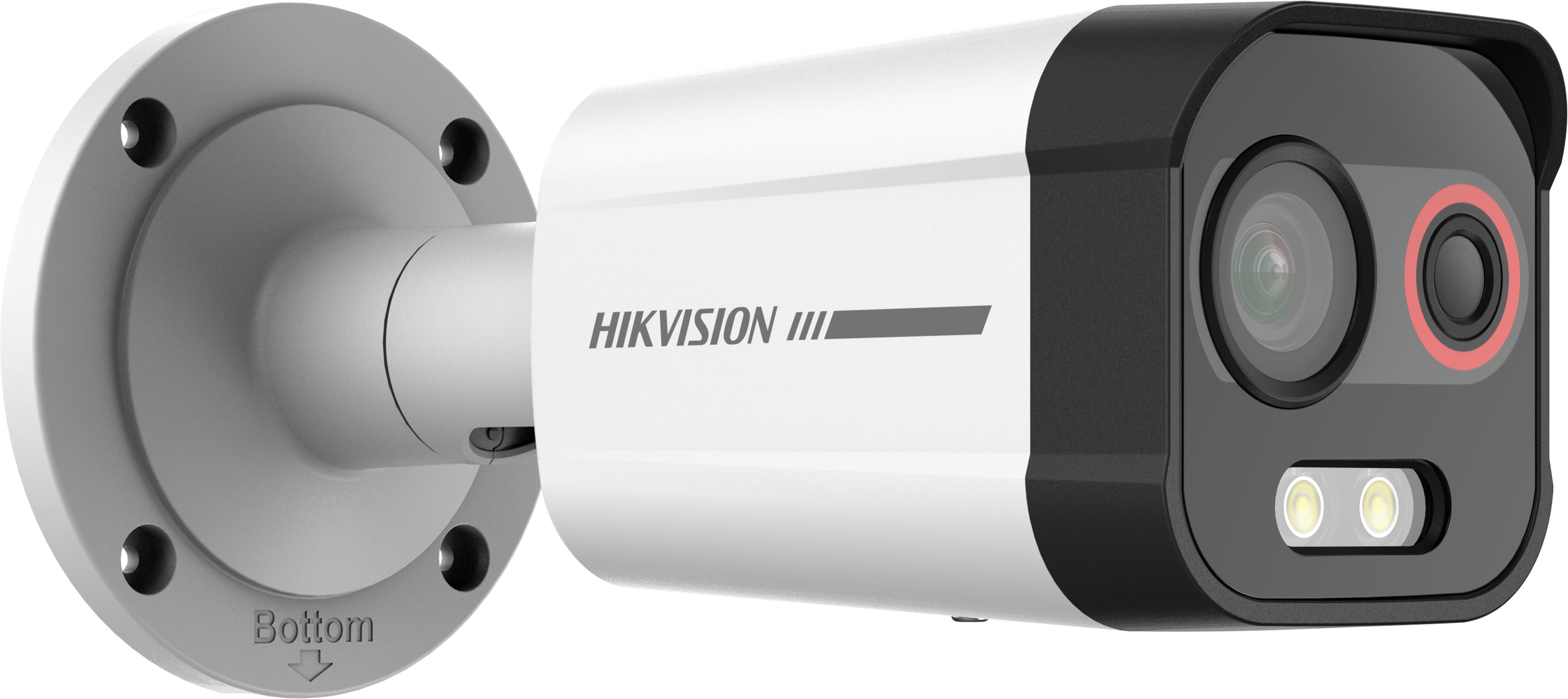

Heatpro bi-spectrum bullet 2mm thermal lens 6mm optical lens up to 30m IR AcuSense VCA 12VDC/POE

Heatpro Bi-Spectrum Bullet – 2mm Thermal Lens, 6mm Optical Lens, 30m IR, AcuSense VCA, 12VDC/PoE

Features

• Dual-spectrum imaging: thermal (96×72, 12 μm, VOx UFPA) and optical (4 MP, 6 mm lens)

• Video content analysis: human and vehicle classification

• High-quality image processing: linear, histogram, self-adaptive thermal AGC, DDE, 3D DNR

• Warm light illuminator up to 30 m for visual alerts

• Audible and visual alarms with preset and custom voice alerts

• High-quality thermal detector with 10-year guarantee

Specifications

Thermal Module

• Sensor: Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA)

• Resolution: 96 × 72, Pixel Pitch: 12 μm

• Spectral Range: 8–14 μm, NETD < 55 mK (25°C, F1.0)

• Focal Length: 2.6 mm, IFOV: 4.62 mrad

• Field of View: 25° × 18.75°, Min Focus: 0.05 m

• Aperture: F1.0, Digital Zoom: ×2, ×4

Optical Module

• Sensor: 1/1.8" Progressive Scan CMOS, Resolution: 2688 × 1520

• Min Illumination: 0.0005 Lux, 0 Lux with light

• Focal Length: 6 mm, Aperture: F1.0

• WDR: 120 dB

• Shutter: 1 s to 1/100,000 s

• Field of View: 56° × 30°

Illuminator & Alarm

• Warm light up to 30 m

• Visual and audio alarms, adjustable flashing frequencies

• 1 preset voice, 6 user-defined voice alerts

Smart Functions & VCA

• 4 VCA rule types: line crossing, intrusion, region entrance/exiting

• Up to 8 VCA rules in total

• Detection range: humans 20 m, vehicles 60 m

Video & Audio

• Thermal main stream: 25 fps (1280×720, 704×576, 640×480, 352×288, 320×240)

• Optical main stream: 25/30 fps (2688×1520, 1920×1080, 1280×720)

• Sub-stream: Thermal & optical, 25–30 fps

• Compression: H.265/H.264

• Audio: G.722.1, G.711u/a, MP2L2, G.726, PCM

Network & Storage

• Protocols: IPv4/IPv6, HTTP/HTTPS, 802.1x, FTP, SMTP, UPnP, SNMP, RTSP, TCP/IP, UDP, IGMP, ICMP, DDNS, SFTP, SSL

• Storage: MicroSD up to 256 GB, NAS (NFS/SMB/CIFS), ANR

• Client: iVMS-4200, Hik-Connect

• Simultaneous live view: up to 20 channels

• Security: user authentication, HTTPS, MAC binding, IP filtering, 802.1x

Interface & Event

• 1× RJ45 Ethernet, 2 alarm inputs, 2 alarm outputs

• Alarm linkage: trigger recording, upload pictures, notifications, PTZ actions

General

• Power: 12 VDC ±25% (Max 8.5 W) / PoE 802.3af Class 3

• Temp/Humidity: -40°C to 65°C, ≤95%

• Protection: IP67, IK10, TVS 4000V lightning/surge/voltage transient protection

• Dimensions: 211.5 × 105 × 105 mm, Weight: 869.2 g

• Web Client Languages: 32

Detection Range Table/Smart Function Range

• VCA Range for Humans20 m
• VCA Range for Vehicles60 m
