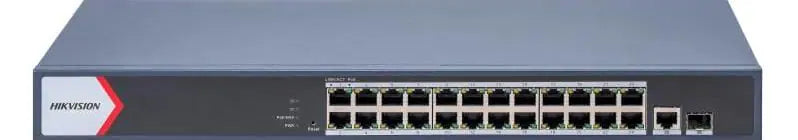

Hikvision 24-Port Smart Gigabit PoE Switch, 370W PoE Budget, SFP Combo Port, Cloud Topology Management

A powerful, enterprise-grade PoE switch designed for large CCTV deployments and business networks. Featuring 24 Gigabit PoE ports, a 370W PoE power budget, visualised topology management, and remote troubleshooting, this switch delivers high performance with intelligent Hikvision cloud management.

Ideal for medium to large surveillance systems needing long-range PoE, stability, and full network visibility.

Features

• 24 × Gigabit PoE Ports

• 1 × Gigabit RJ45 Uplink + 1 × Gigabit SFP Fiber Port

• 370W Total PoE Budget (up to 30W per port)

• Supports IEEE 802.3af/at

• Unified Cloud Management for Hikvision security systems

• Visualised Network Topology

• Remote Troubleshooting & Port Restart

• Up to 300 m Long-Range PoE Transmission

• 6 kV Surge Protection for reliability

• Link Aggregation (8 groups)

• VLAN Support (802.1Q) – up to 32 VLANs

• PoE Watchdog for automatic camera recovery

• Durable metal rack-mount design

Specifications

General

• Material: Metal

• Net Weight: 3.1 kg

• Gross Weight: 3.3 kg

• Dimensions: 440 × 220.8 × 44 mm

• Operating Temperature: 0°C to 45°C

• Storage Temperature: –40°C to 85°C

• Operating/Relative Humidity: 5%–95% (non-condensing)

• Power Supply: 100–240V AC, 50/60Hz, Max. 6.3A

• Max Power Consumption: 400W

• Idle Power Consumption: 30W

• Installation: Rack-mount (mounting ears included)

• Surge Protection: 6 kV

Network Parameters

• Ports:

  • 24 × Gigabit PoE RJ45

  • 1 × Gigabit RJ45

  • 1 × Gigabit SFP Fiber

• MAC Address Table: 8K

• Switching Capacity: 56 Gbps

• Forwarding Rate: 41.66 Mpps

• Buffer: 4.1 Mbit

PoE

• Standard: IEEE 802.3af / 802.3at

• PoE Pins: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE Ports: Ports 1–24

• Max Power per Port: 30W

• Total PoE Budget: 370W

Software & Smart Functions

Long-Range PoE

• Up to 300 m on ports 1–24 (performance varies by camera/cable)

PoE Watchdog

• Automatically detects and restarts unresponsive IP cameras

Link Aggregation

• Static link aggregation

• Supports 8 aggregation groups

Loop Prevention

• Supports 802.1D STP

• Supports 802.1w RSTP

VLAN

• 802.1Q VLAN support

• Up to 32 VLANs

• VLAN ID range: 1–4094

• Trunk & Access modes

Port Isolation

• Ports 1–24 can be isolated for enhanced security

System Maintenance

• Web-based management

• DHCP Client (default enabled)

• Super IP (fixed IP: 10.180.190.200)

• Remote management via Hik-Partner Pro

• Cable diagnostics (open/short & cable length)

• LLDP peer discovery

• Port mirroring

HPP Cloud Features

• One-click activation

• View port rate & bandwidth

• View PoE usage

• Visualised topology mapping

• Alarm notifications

• Remote port/device restart

• Remote firmware upgrade

Certifications

• EMC: CE-EMC compliant

• Safety: UL, CB, CE-LVD

• Environmental: RoHS, REACH, WEEE
