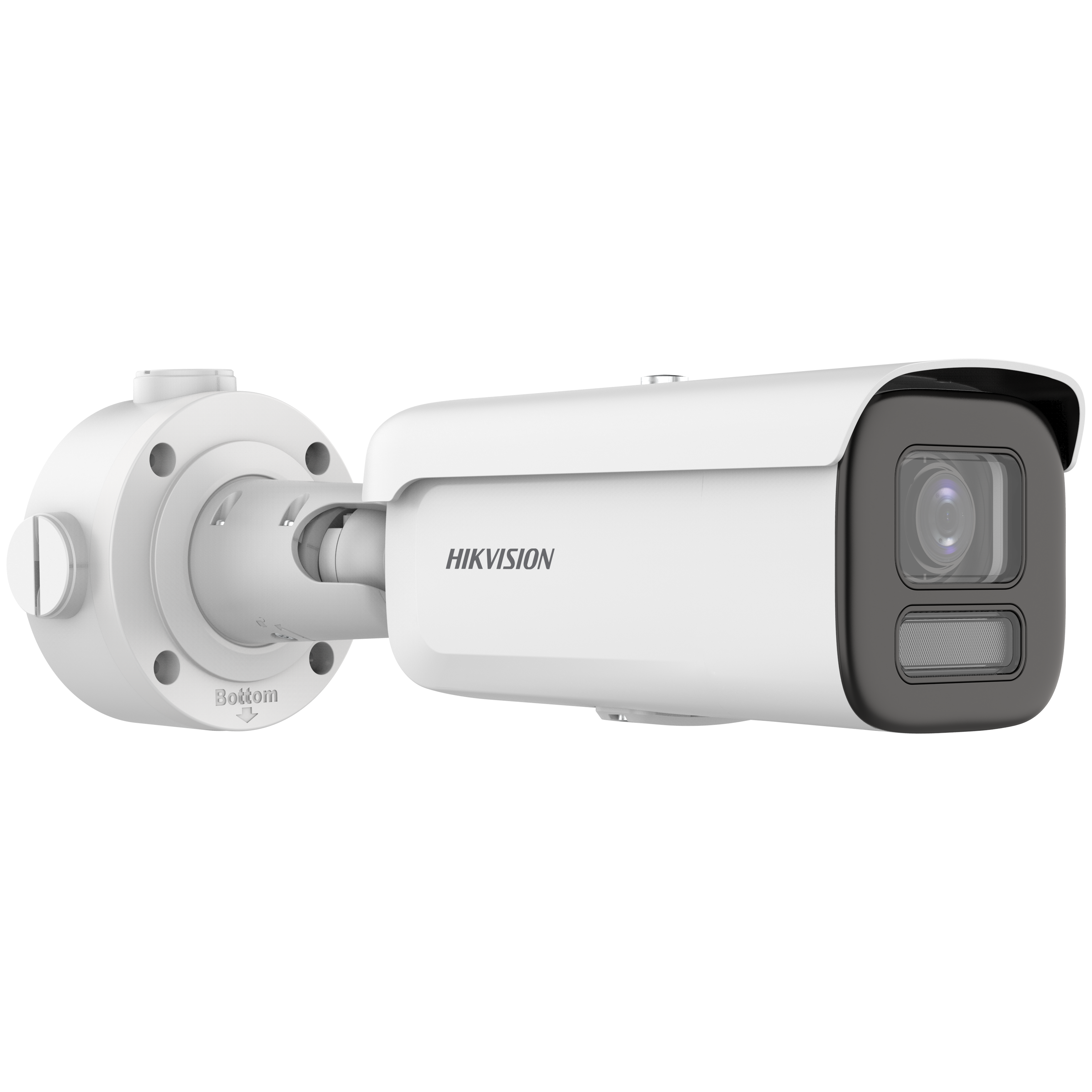

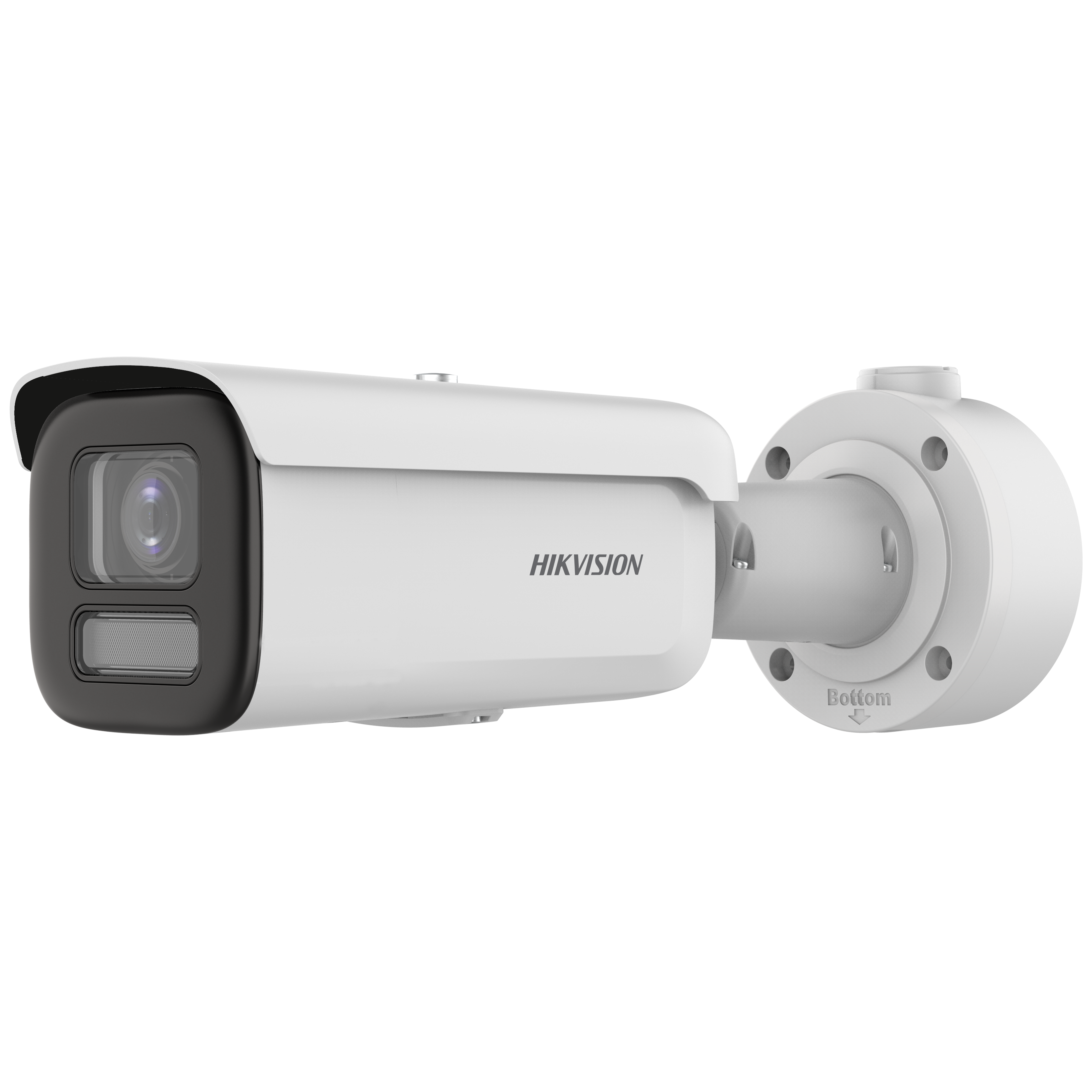

Hikvision AcuSense 4MP Bullet Camera – 2.7–13.5mm Lens, 60m IR, 120dB WDR, Alarm I/O, 12VDC/PoE
The Hikvision AcuSense 4MP Bullet Camera offers high-resolution imaging, advanced smart features including human/vehicle classification, motorized varifocal lens for flexible monitoring, IP67-rated weather resistance, and IK10 vandal protection. Supports 12VDC or PoE power.
Features
-
Supports Hikvision Embedded Open Platform (HEOP) and third-party applications
-
1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, 2 GB eMMC storage
-
High-quality 4MP imaging with Smart Hybrid Light technology
-
Clear imaging with 120dB WDR for strong backlight conditions
-
Efficient H.265+ compression
-
Motorized varifocal lens (2.7–13.5mm) for easy installation and monitoring
-
Focus on human and vehicle classification via deep learning
-
Water and dust resistant (IP67) and vandal resistant (IK10)
Specifications
Camera
-
Image Sensor: 1/1.8" Progressive Scan CMOS
-
Max Resolution: 2688 × 1520
-
Min Illumination: 0.001 Lux (Color), 0 Lux with light
-
Shutter Time: 1/3 s to 1/100,000 s
-
Day/Night: IR cut filter
-
Angle Adjustment: Pan 0–355°, Tilt 0–90°, Rotate 0–360°
Lens
-
Type: Motorized varifocal, 2.7–13.5 mm
-
FOV: H 114.6°–41.8°, V 59.3°–23.6°, D 141.3°–48.1°
-
Focus: Auto, Semi-auto, Manual
-
Iris: DC iris, Aperture F1.2
-
Depth of Field: 1 m–∞
DORI
-
Wide: D 60 m, O 23.8 m, R 12 m, I 6 m
-
Tele: D 149 m, O 59.1 m, R 29.8 m, I 14.9 m
Illuminator
HEOP & Deep Learning
-
Memory: 60 MB system, 400 MB smart RAM, 2 GB eMMC
-
Computing Power: 1.5 TOPS
-
Supported Frameworks: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
-
Programming Languages: C, C++
Video
-
Streams: Main, Sub, Third, Fourth
-
Compression: H.265/H.264/H.264+/H.265+
-
Bitrate: 32 Kbps – 8 Mbps
-
ROI: 5 fixed regions
-
Target Cropping: Yes
Audio & Alarm
-
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Input/Output: Line in/out, two-core terminal block
-
Alarm: 2 inputs, 2 outputs (max 24 VDC/24 VAC, 1 A)
Network & Security
-
Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket
-
Simultaneous Live View: Up to 6 channels
-
API: ONVIF Profile S/G/T, ISAPI, SDK, ISUP
-
Users: Up to 32 (Admin, Operator, User)
-
Security: Password, HTTPS, 802.1X, IP filter, watermark, TLS, MAC authentication
Storage
-
Built-in microSD slot: Up to 512 GB
-
NAS: NFS, SMB/CIFS, ANR support
Events
-
Basic Event: Motion detection, video tampering, exceptions
-
Smart Event: Scene change, audio exception, defocus, unattended baggage, object removal
-
Perimeter Protection: Line crossing, intrusion, region entrance/exiting
General
-
Power: 12 VDC ±25%, 1.21 A, max 14.5 W / PoE: IEEE 802.3at, Class 4, max 18 W
-
Material: Metal body, cover, bracket
-
Dimensions: 334 × 97.9 × 95.7 mm
-
Package Dimensions: 386 × 190 × 180 mm
-
Weight: 1085 g; With package: 1639 g
-
Operating/Storage Temp: -30°C to 60°C, Humidity ≤95% non-condensing
-
General Functions: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
-
Languages Supported: 33
Approvals
