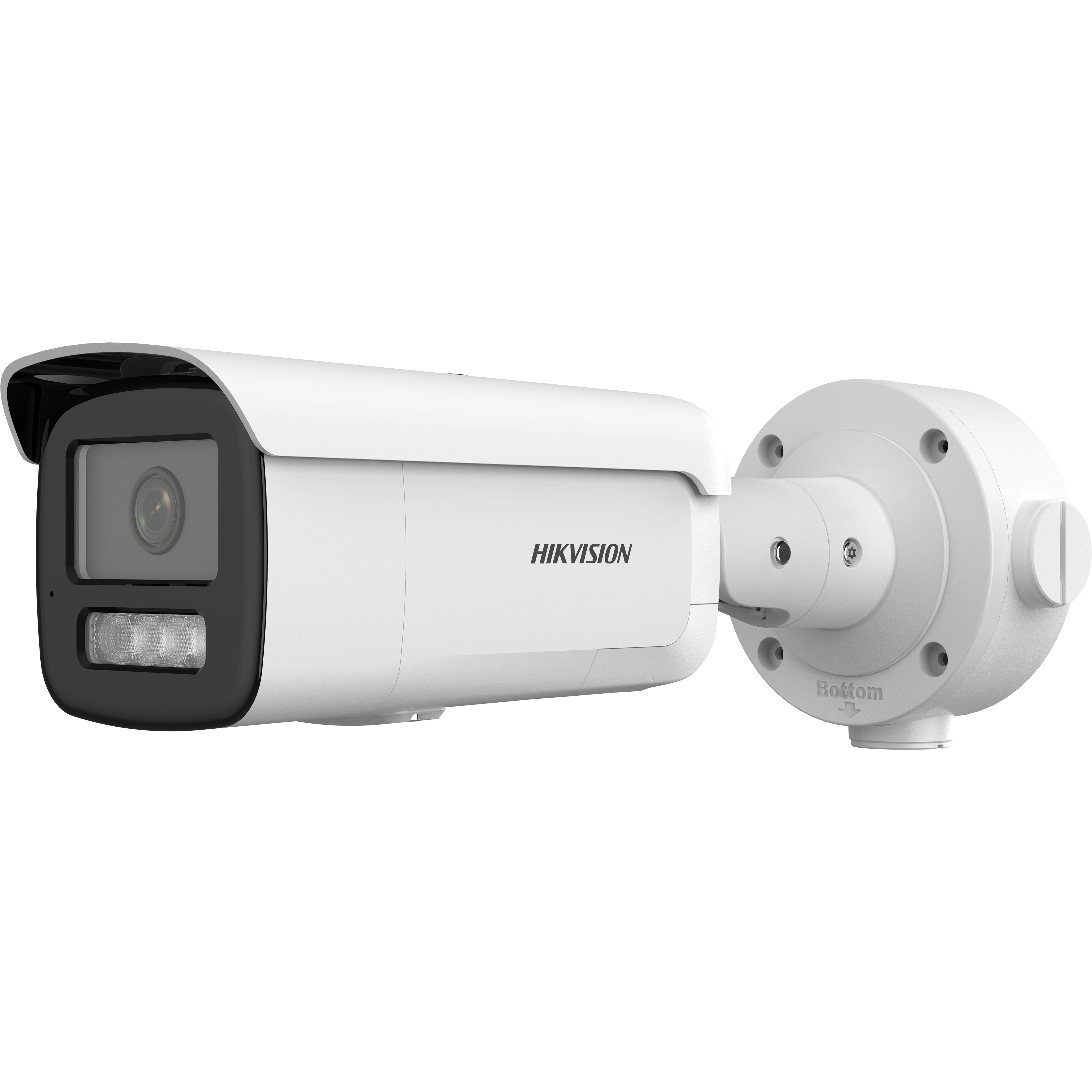

Hikvision AcuSense 4MP Bullet Camera – 4mm Lens, 60m IR, 120dB WDR, Strobe & Siren, 12VDC/PoE
The Hikvision AcuSense 4MP Bullet Camera provides high-resolution imaging, advanced smart features including human/vehicle classification, built-in strobe and siren alarms, and IP67-rated weather resistance. Supports 12VDC or PoE power.
Features
-
Supports Hikvision Embedded Open Platform (HEOP) and third-party applications
-
1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, 2 GB eMMC storage
-
High-quality 4MP imaging with Smart Hybrid Light technology
-
Clear imaging with 120dB WDR for strong backlight conditions
-
Efficient H.265+ compression
-
Focus on human and vehicle classification via deep learning
-
Support on-board storage up to 512 GB (SD card slot)
-
Built-in two-way audio for real-time security
-
Active strobe light and audio alarm to deter intruders
-
Audio and alarm interface available
-
Water and dust resistant (IP67)
Specifications
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Max Resolution: 2688 × 1520
- Min Illumination: 0.001 Lux (Color), 0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day/Night: IR cut filter
- Angle Adjustment: Pan 0–360°, Tilt 0–90°, Rotate 0–360°
Lens
- Type: Fixed focal lens, 4 mm
- FOV: H 81.1°, V 44.7°, D 94.6°
- Iris: Fixed, Aperture F1.0
- Depth of Field: 2.5 m–∞
DORI
- 4 mm: D 78 m, O 31 m, R 15 m, I 7 m
Illuminator
- Supplement Light Type: IR, White Light
- Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
HEOP & Deep Learning
- Memory: 60 MB system, 400 MB smart RAM, 2 GB eMMC
- Computing Power: 1.5 TOPS
- Supported Frameworks: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
- Programming Languages: C, C++
Video
- Streams: Main, Sub, Third, Fourth
- Compression: H.265/H.264/H.264+/H.265+
- Bitrate: 32 Kbps – 8 Mbps
- ROI: 5 fixed regions
- Target Cropping: Yes
Audio & Alarm
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Type: Mono
- Audio Input/Output: Line in/out, two-core terminal block, max input 3.3 Vpp, output 3.3 Vpp
- Alarm: 2 inputs, 2 outputs (max 24 VDC/24 VAC, 1 A)
- Built-in Microphone: Yes
- Built-in Speaker: Max 2 W, 10 cm: 97 dB
- Power Output: 12 VDC, max 100 mA
Network & Security
- Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket
- Simultaneous Live View: Up to 6 channels
- API: ONVIF Profile S/G/T, ISAPI, SDK, ISUP
- Users: Up to 32 (Admin, Operator, User)
- Security: Password, HTTPS, 802.1X, IP filter, watermark, TLS, MAC authentication
Storage
- Built-in microSD slot: Up to 512 GB
- NAS: NFS, SMB/CIFS, ANR support
Events
- Basic Event: Motion detection, video tampering, exceptions
- Smart Event: Scene change, audio exception, defocus, unattended baggage, object removal
- Perimeter Protection: Line crossing, intrusion, region entrance/exiting
- Supports alarm triggers for specified human/vehicle targets
General
- Power: 12 VDC ±25%, 1.08 A, max 13 W / PoE: IEEE 802.3at, Class 4, max 15.5 W
- Material: Metal body, cover, bracket
- Dimensions: 325.7 × 93.3 × 91.2 mm
- Package Dimensions: 386 × 157 × 155 mm
- Weight: 1220 g; With package: Model with EF: 2060 g, without EF: 1940 g
- Operating/Storage Temp: -30°C to 60°C, Humidity ≤95% non-condensing
- General Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter
- Languages Supported: 33
Approvals
- EMC: CE-EMC, RCM, IC
- Safety: UL, CB, CE-LVD, BIS, LOA
- Environment: CE-RoHS
- Protection: IP67
