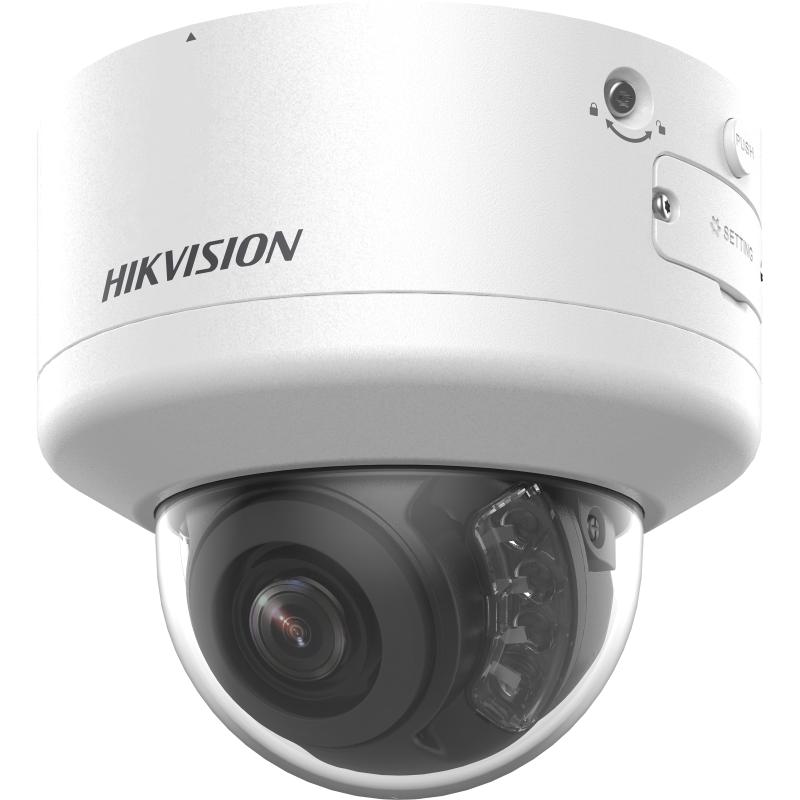

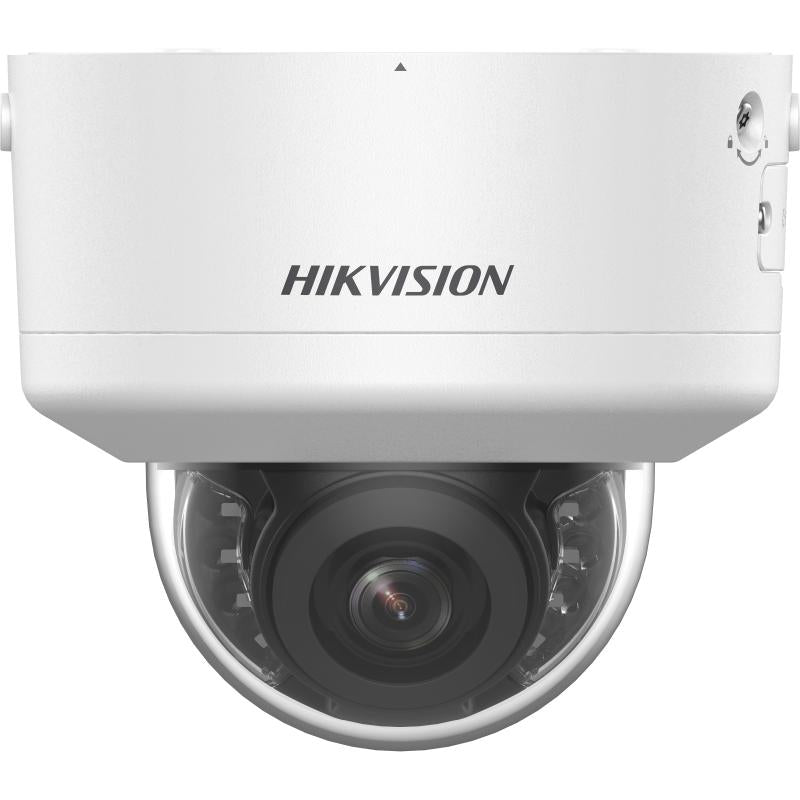

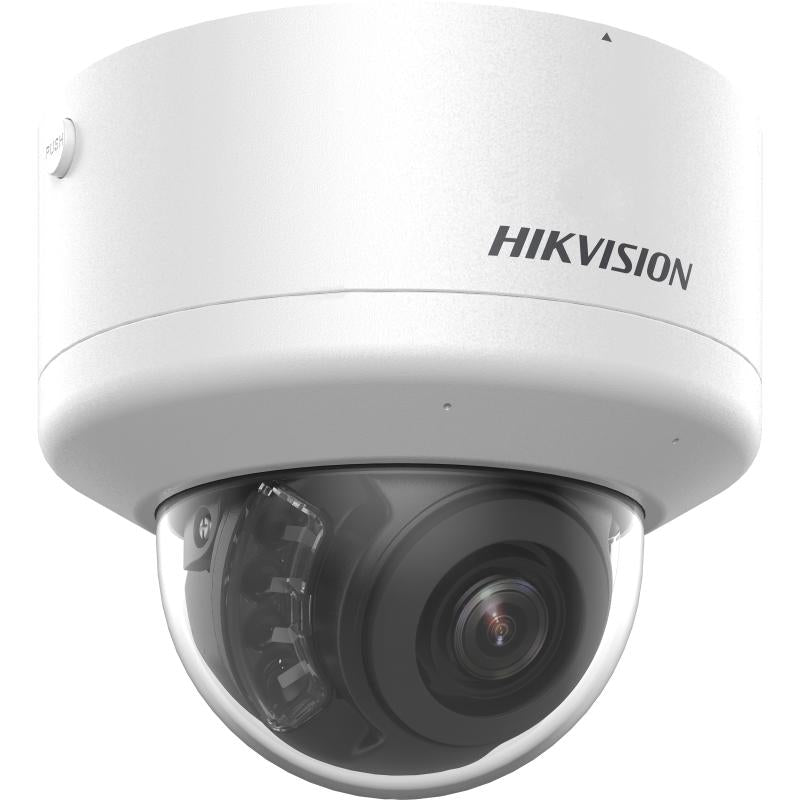

Hikvision AcuSense 4MP Dome – 2.7–13.5mm Motorized Lens, 40m IR, 120dB WDR, Alarm & Audio I/O, 12VDC/PoE
The Hikvision 4MP AcuSense Motorized Dome delivers flexible pan, tilt, rotate, and zoom for precise monitoring. Features ColorVu 24/7 color imaging, dual-array microphones for clear audio, and advanced smart detection with human/vehicle classification. Built-in alarm and audio outputs, IP66 weather and IK10 vandal protection.
Features
-
Motorized Pan, Tilt, Rotate, Zoom for easy installation
-
ColorVu technology for 24/7 color imaging
-
IR, white light, and Smart Hybrid Light modes
-
Clear imaging in strong backlight with 130dB WDR
-
Supports Hikvision Embedded Open Platform (HEOP) and third-party apps
-
1.5 TOPS computing, 40 MB system memory, 350 MB smart RAM, 2 GB eMMC
-
Dual-array microphones with two-way audio
-
Alarm & audio interface for real-time alerts
-
Water and dust resistant (IP66), vandal resistant (IK10)
Specifications
Camera
-
Image Sensor: 1/1.8" Progressive Scan CMOS
-
Max Resolution: 2688 × 1520
-
Min Illumination: 0.001 Lux (Color), 0 Lux with light
-
Shutter Time: 1/3 s to 1/100,000 s
-
Day/Night: IR cut filter
-
Remote PTZ: Pan -175° to 175°, Tilt 0° to 85°, Rotate 0° to 350° (Max. 1000 cycles)
Lens
-
Type: Varifocal motorized 2.7–13.5 mm
-
FOV: H 114.6°–41.8°, V 59.3°–23.6°, D 141.3°–48.1°
-
Focus: Auto / Semi-auto / Manual
-
Iris: DC iris, Max F1.2
-
Depth of Field: 1 m to ∞
DORI
-
Wide: D 61.5 m, O 24.4 m, R 12.3 m, I 6.2 m
-
Tele: D 151.7 m, O 60.2 m, R 30.3 m, I 15.1 m
Illuminator
-
IR & White Light, Smart Hybrid Light
-
Range: Up to 40 m, 850 nm IR
Video
-
Streams: Main, Sub, Third, Fourth
-
Compression: H.265/H.264/H.264+/H.265+
-
Bitrate: 32 Kbps–8 Mbps
-
ROI: 5 fixed regions, target cropping supported
Audio & Alarm
-
Dual-array microphones, two-way audio
-
Audio I/O: 1 input / 1 output (24 VDC/24 VAC, 1 A)
-
Event Trigger: Motion, human/vehicle detection, tampering, unattended baggage, audio exception, defocus, object removal
-
Linkage: FTP/NAS/memory card, email, alarm output, strobe & audible warning
Network & Security
-
Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, UPnP, 802.1X, IPv4/IPv6
-
Users: Up to 32, 3 levels
-
Security: Password, HTTPS, IP filter, TLS, MAC authentication
Storage
General
-
Power: 12 VDC ±25%, max 16 W / PoE IEEE 802.3at, Class 4, max 18 W
-
Material: Metal cover & body
-
Dimensions: Ø155 × 140.4 mm
-
Weight: 820 g / With package: 1200 g
-
Operating Temp: -30°C to 60°C, Humidity ≤95%
Approvals
