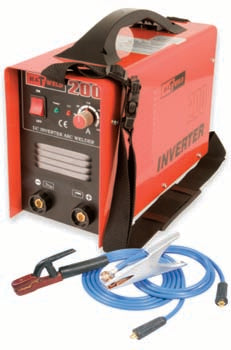

MATWELD WELDER INVERT 200A 220V VRD
VRD stands for Voltage Reduction Device
A VRD reduces the maximum open circuit voltage across the output
terminals to below 15 volts
This is a safety requirement of most mines in South Africa when the
unit is to be operated underground or in damp conditions. The presence
of a VRD can however cause difficulty in the striking and re-striking of
the arc with less skilled operators. This is because the machine has to
rapidly change from the reduced open circuit voltage of below 15 volts
to the open circuit voltage of around 56 volts necessary to strike the
arc.
Key Features
Compact and lightweight
Stable Arc with excellent striking capabilities
Hot Start MMA
Over Voltage and Over Current protection
Carry Handle and Convenient Shoulder strap
Suitable for Scratch Start TIG welding
Supplied with welding cables
Please Note: All VRD Machines must be Built in and can’t have an
on/off function
Technical Data
Input Power Voltage Single Phase AC 220V ±10%
Rated Input Power Capacity 5.3 KVA
No Load Voltage 9V
Output Current Range 20 - 200A
Rated Output Voltage 26.2V
Duty Cylce % 60%
Weight 8Kg
Dimensions - LWH 371 x 155 x 295mm
CODE: MAT9055VRD
BARCODE: 6008075008505
HEIGHT: 35.5cm
LENGTH: 53.0cm
WIDTH: 28.5cm
WEIGHT: 8kg
