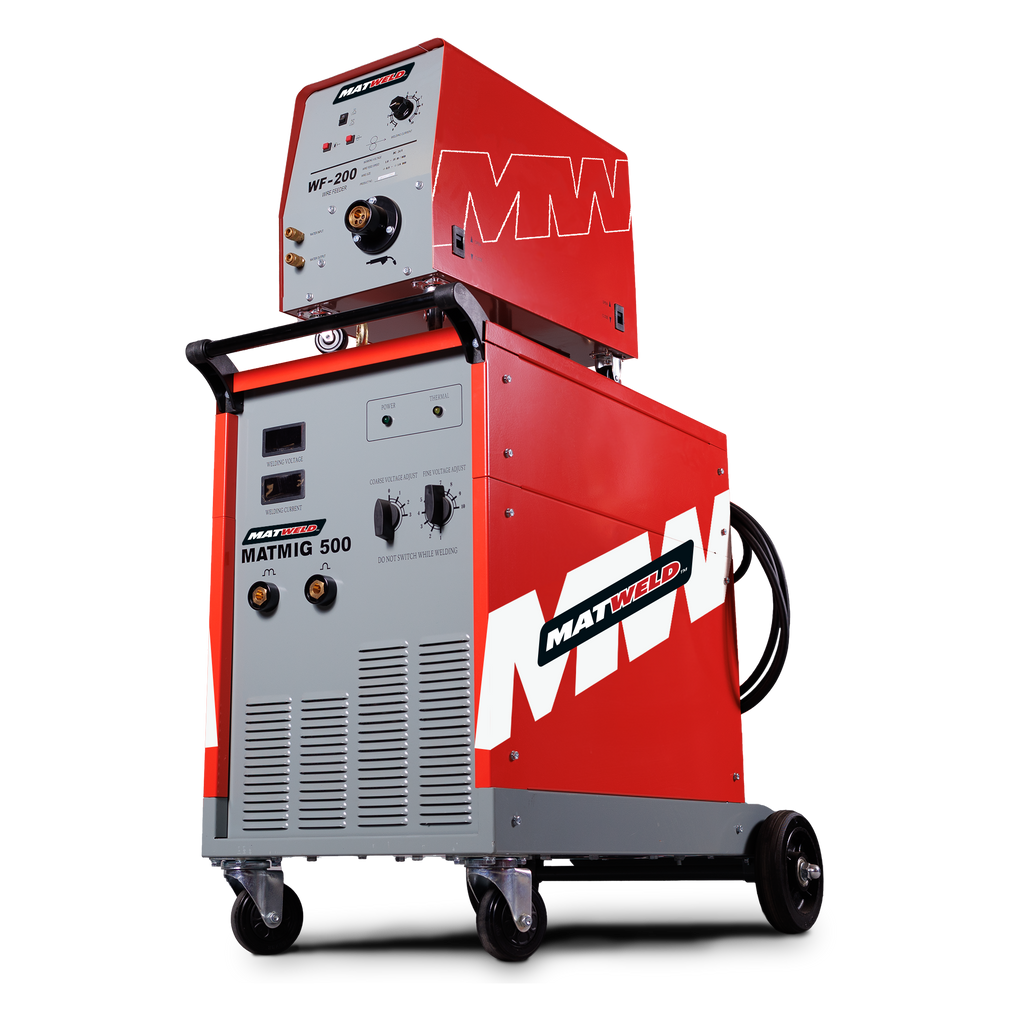

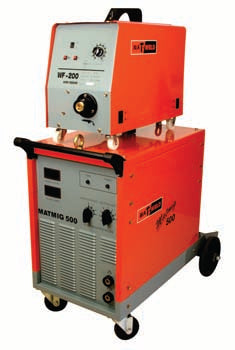

MATWELD WELDER MIG 500A 380V SEPARATE FEEDER HEAVY
DUTY
Key Features
Fully Industrial Silicon rectifier type welders
Heavy Duty applications
Digital Volt and Current meters
350 and 500 Amp Separate feeder models with 5m interconnecting
cable
Available in 380V
2T - 4T trigger function
Wire inching
NB: Air Cooled Configuration requires Accessory kit sold separately.
Water
Cooled Configuration requires MAT9073KWC.
Accessory kit and MAT9010 Water Cooler sold separately.
Technical Data
Input Power Voltage Three Phase AC 380V ±10%
Rated Input Power Capacity 32.6 KVA
No Load Voltage 21 - 53V
Output Current Range 110 - 540A
Duty Cycle % 60%
Wire Feed Speed 1.5 - 15m per minute
Weight 191Kg
Dimensions - LWH 790 x 500 x 840mm
CODE: MAT9073
BARCODE: 4895122213706
HEIGHT: 106.2cm
LENGTH: 143.5cm
WIDTH: 70.0cm
WEIGHT: 191kg
