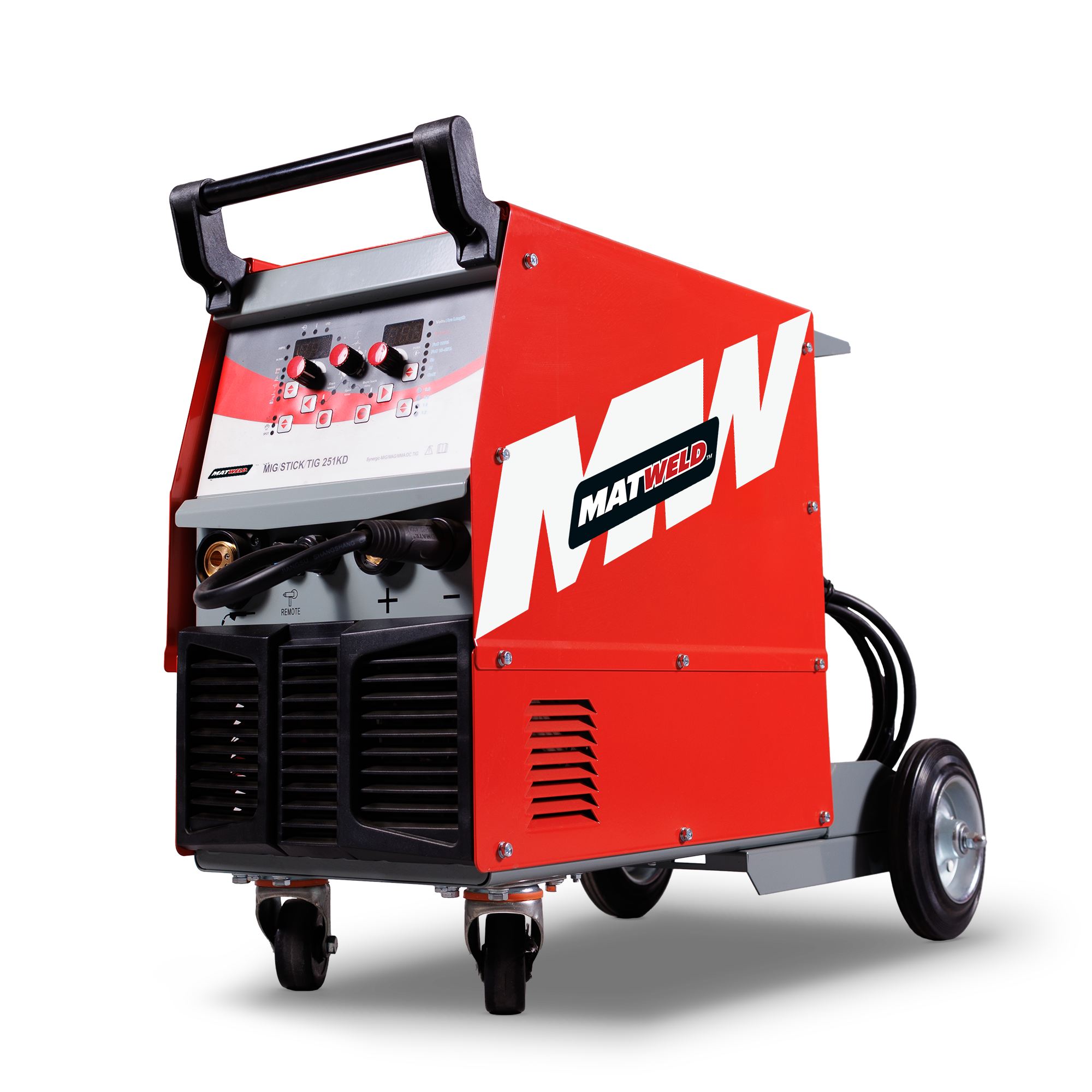

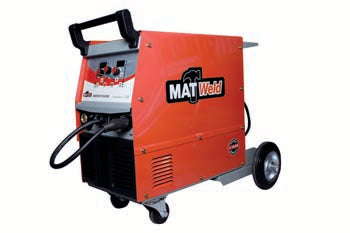

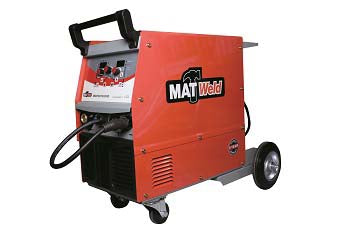

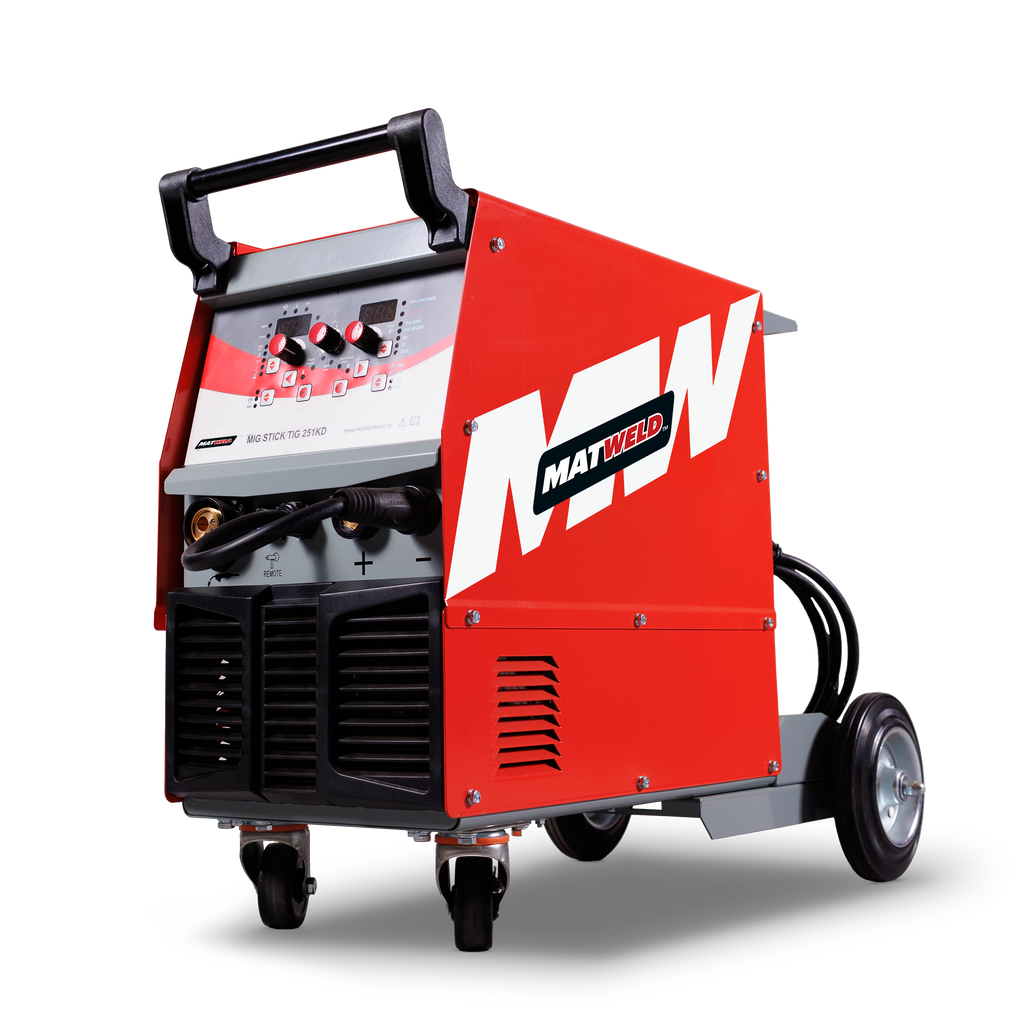

MATWELD WELDER MIG STICK TIG 250AM 220V
Key Features
Advanced IGBT inverter technology
Constant current, constant voltage CC/CV
Convenient 220V
High 60% duty cycle at 40°C
Three welding processes in one machine
MIG Welding
250A MIG - 30 to 250 Amps
2T - 4T trigger function
Built-in wire feeder with 2 roll driver
Wire inching facility
15kg spool capacity
0.8 – 1.0mm wires
Suitable for mild steel, aluminium and stainless steel MIG
welding
TIG Welding
220A TIG - 10 to 220 Amps
Lift Arc TIG function
One piece TIG torch - sold separately - see below
Trigger controlled gas solenoid
Not suitable for aluminium TIG welding
MMA Stick Welding
220A MMA - 10 to 200 Amps
DC stick welding
Up to 4mm electrode
Technical Data
Input Power Voltage 220V ±15%
Frequency 50/60HZ
Rated Input Power KVA 45 KVA
No Load Voltage 60V
Output Current Range MMA 20 - 200A
TIG 15 - 250A
MIG 30-250A
Rated Work Voltage 28
Duty Cycle% 35%
Suitable Welding Wire 0.8/1.0mm
Type of Wire Feeder Internal
Protection Class IP21S
CODE: MAT9105
BARCODE: 6008075939205
HEIGHT: 71.0cm
LENGTH: 96.5cm
WIDTH: 46.0cm
WEIGHT: 70kg
