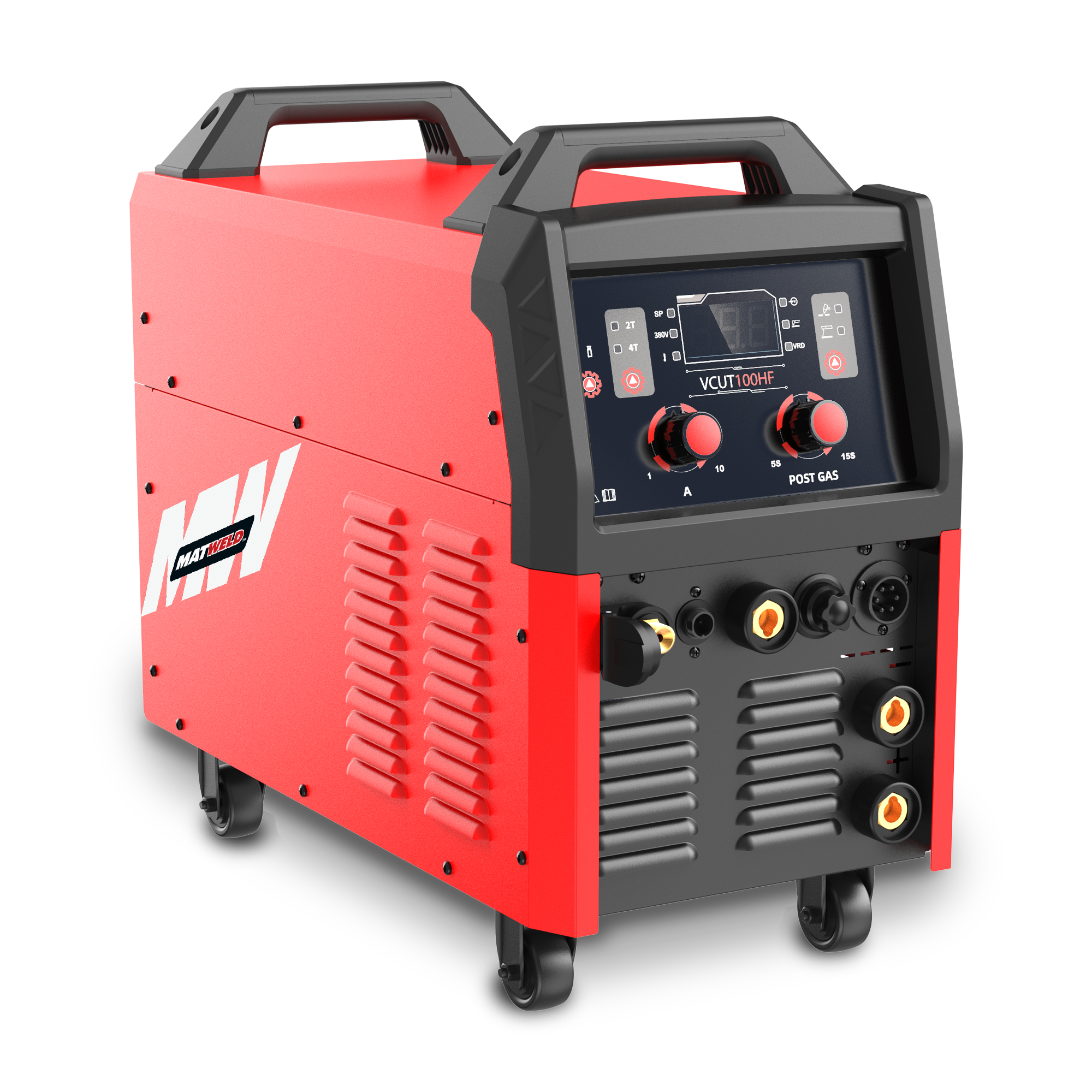

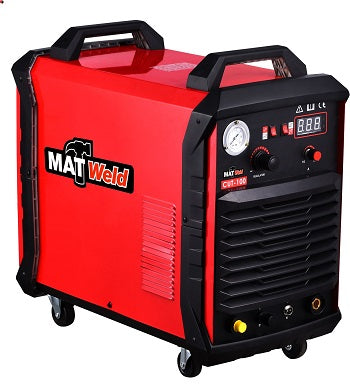

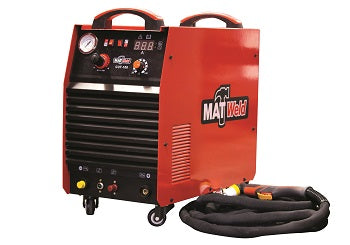

MATWELD WELDER PLASMA PROFESSIONAL CUT 100H 380V
Built in Regulator
Supplied with Filter
Technical Data
Rated Input Voltage 3P - 380V
Frequency 50/60HZ
Rated Input Power - KW 14.1
Rated Input Current - A 23.1
Duty Cycle - 40°C 10min 60% 100A
No Load Voltage - V 300
Welding Current Range - A 30 - 100
Efficiency % ≥80
Power Factor 0.93
Protection Class IP23
Cutting Thickness 30mm
Insulation Class H
N.W. 28.5Kgs
G.W. 33Kgs
Packing Size 64 x 44 x 53.5cm
Accessories 5M P80 Cutting Torch,
3M Earth Clamp
CODE: MAT9215
BARCODE: 704129501119
HEIGHT: 62.7cm
LENGTH: 65.1cm
WIDTH: 39.2cm
WEIGHT: 33.0kg
