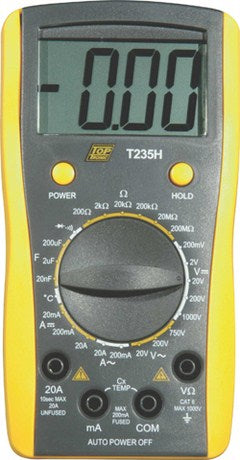

MULTIMETER TOPTRON DIGITAL PRO T235H
Hand held electricians digital multimeter
Capacitance
Transistor test
Data Hold
Non-contact voltage EF detection – NCV -
Auto Power Off
Backlight
Temperature
Torch
Application: Widely used on measuring DCV, ACV, DCA, ACA, resistance,
capacitance, diode and continuity test, and temperature
Technical Specifications:
DC Voltage (V): 200mV/ 2/ 20/ 200/ 1000V – Accuracy: ±0.5% + 3
Digit
AC Voltage (V): 2/ 20/ 750V - Accuracy: ±0.8% + 5 Digit
DC Current (A): 200µA/ 2mA/ 20mA/ 200mA/ 20A – Accuracy: ±0.8% + 10
Digit
AC Current (A): 200mA/ 20A - Accuracy: ±2.0% + 5 Digit
Resistance (Ù): 200Ù/ 2kÙ/ 20kÙ/ 200kÙ/ 2MÙ/ 20MÙ – Accuracy: ±0.8% +
5 Digit
AC Frequency Response: 40 - 400Hz
Temperature (°C): -20 to +1000ºC – Accuracy: <400ºC ±1.0% + 5
Digit
Input Impedance: 10MÙ
Capacitance (F): 6nF/ 60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 20mF –
Accuracy: ±3.5 % + 20 Digit
Display: 3½ Digits - Accuracy: 1 999 Counts
CODE: BTH0680
BARCODE: 6005242023484
HEIGHT: 6.0cm
LENGTH: 25.5cm
WIDTH: 18.0cm
WEIGHT: 0.49kg
APPLICATION: DIY
COLOUR: Dark Grey, Orange
CONTENT ACCESSORIES: Temp Probe TBMTEMPPROBE, Test Leads,
Instruction Manual
MATERIAL: Metal,
Plastic
