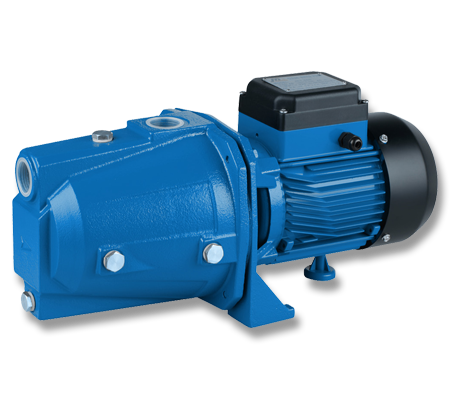

Speck Johntech Jet JM-100 Self-Priming Peripheral Pump
The JOHNTECH JET – JM Series pump is self-priming, so the suction side of the pump can be installed below or above water level of the tank. The pump must be installed on a flat surface that would not flood in heavy rain. The pump is intended for clean water usage such as drinking water or non-potable water piping systems. This pump is designed for small to medium scale irrigation systems. The JOHNTECH JET – JM Series pump is perfect for use between the borehole pump-to-storage tank applications and from tank-to-house applications.
Features
- Single Phase.
- Self-Priming.
- Pump body: Cast Iron.
- Motor housing:
- Brass Impeller.
- Diffuser: Techno-polymer (P.P.O)
- Energy efficient.
- Automatic start / stop when fitted with the PS-01 controller (optional extra).
- Run-dry protection when fitted with the PS-01 controller (optional extra).
- Motor fitted with an overload switch.
- Liquid temperature stability up to 60°C.
- Total electric separation.
- Mechanical seal: carbon / ceramic / stainless steel.
- Simple servicing.
- Fully factory tested.
- Pre-wired with cable.
- Insulation: Class B.
- Protection: IP 44
- Stainless Steel / Carbon steel shaft.
- Cooling: External ventilation.
-
12 month ex-factory warranty under normal operating conditions from date of purchase.
Technical Specifications
- Motor speed approx. (rpm) 2850
- Max. Liquid temperature (°C) 60
- Max. Ambient temperature (°C) 40
- Max. Suction line (meter) 9
| TECHNICAL DATA |
JOHNTECH JET – JM100 |
| Inlet / outlet connection |
1” / 1” |
| Power input P1 (kW) 1~230V |
1.10 |
| Power output P2 (kW) 1~230V |
0.75 |
| Power HP 1~230V |
1.00 |
| Rated current (A) 1~230V |
5.20 |
| Max. Flowrate (Q) |
50 L/min |
| Total Manometric Head (H) in meter |
50m |
| Max. Total Dynamic Head (bar) |
5 |
