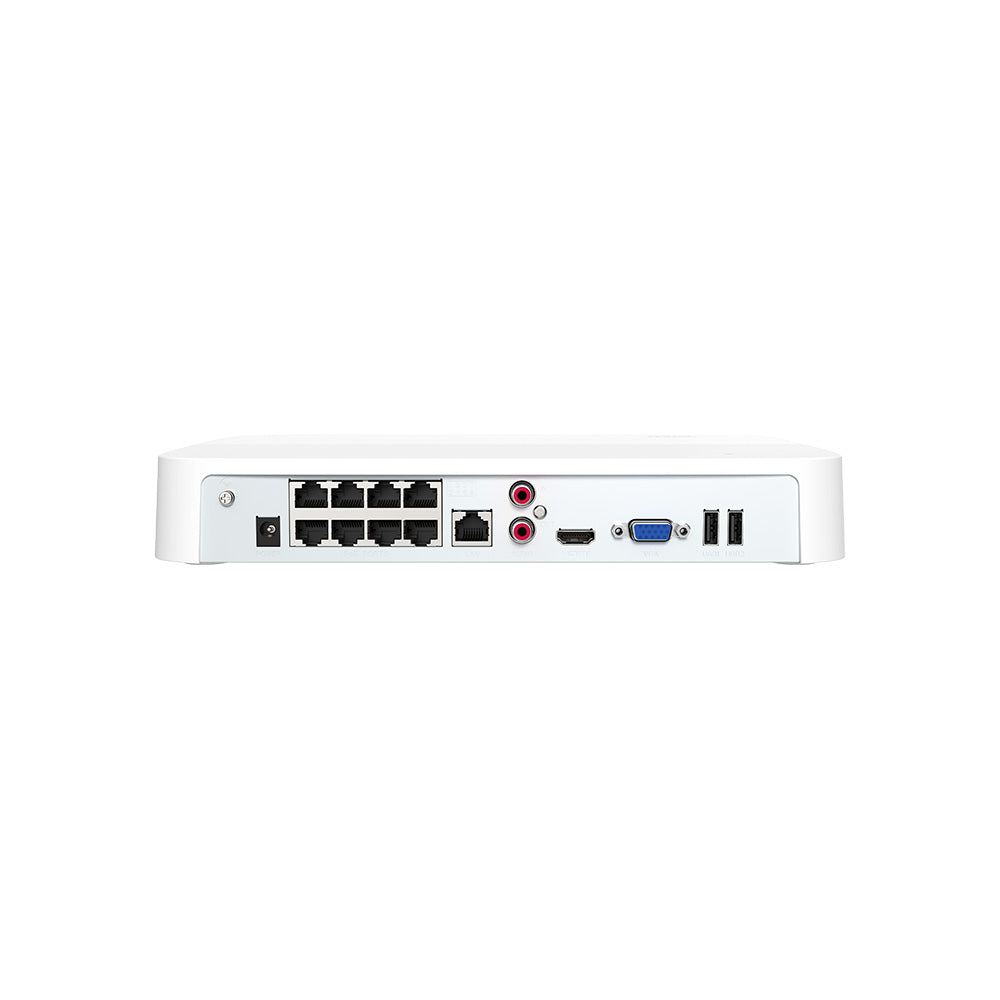

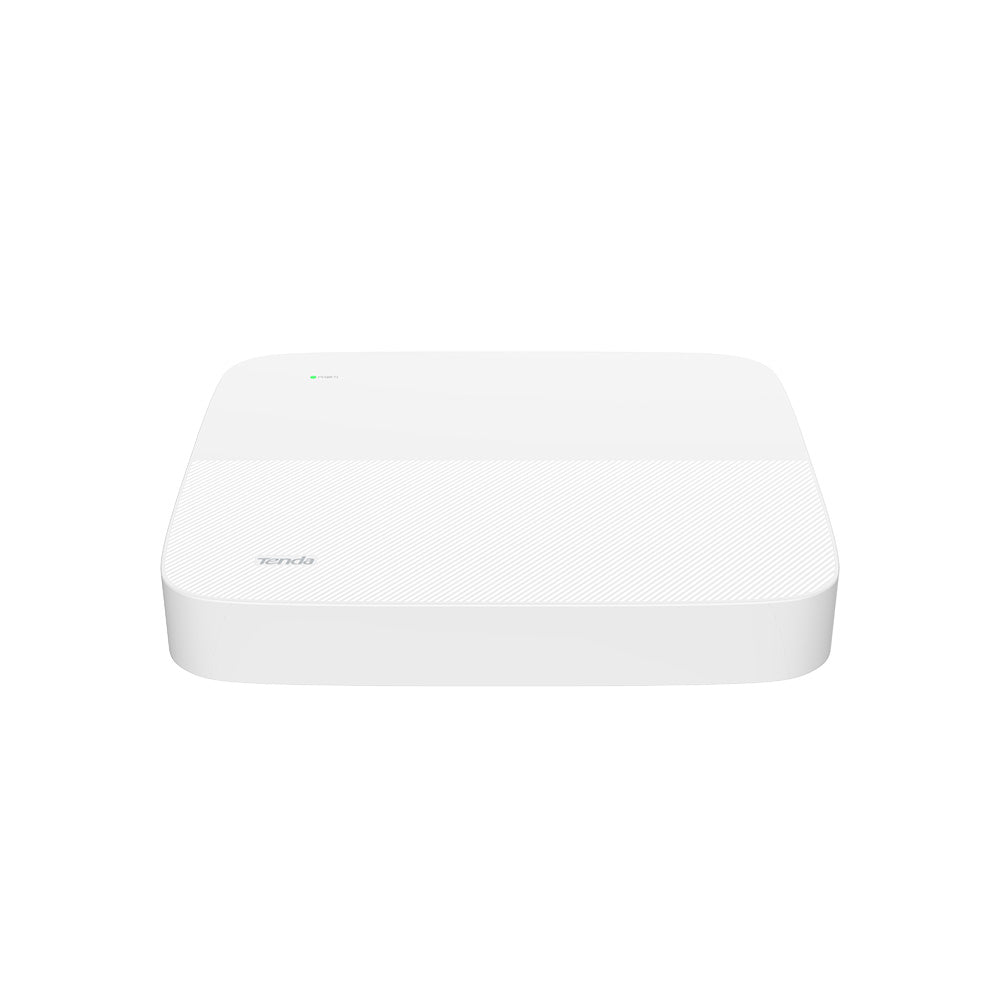

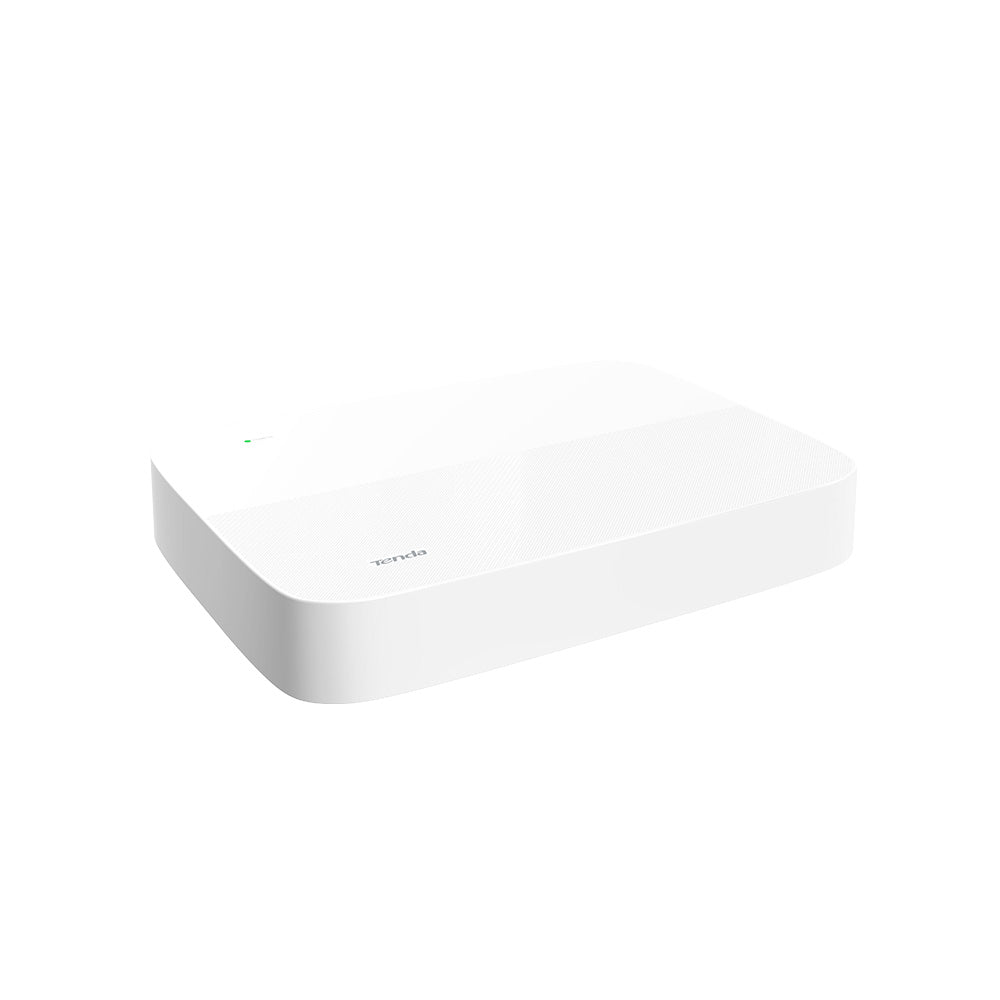

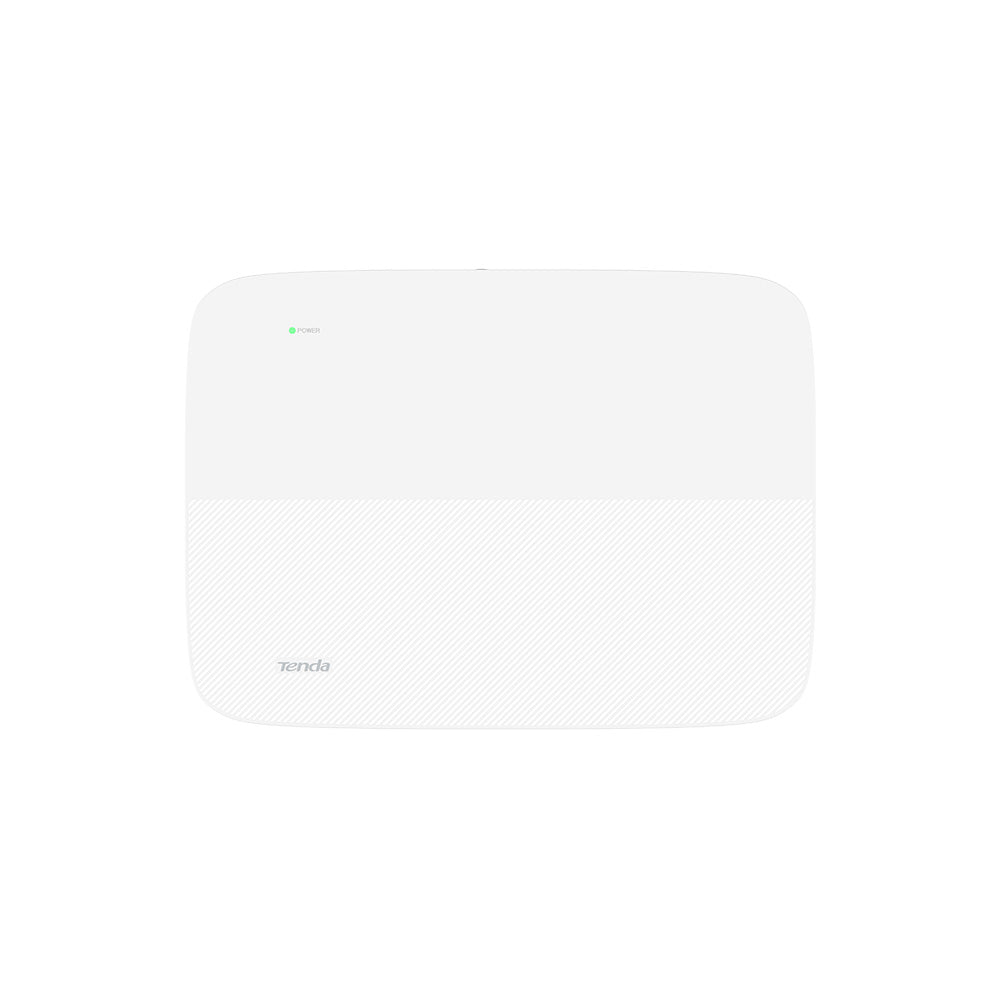

Tenda 16 Channel PoE HD Network Video Recorder
4K UHD Monitoring Image Captures Clear and Delicate Monitoring Details
4K UHD camera connected and 4K high-definition HDMI output with up to 3840 x 2160 resolution provides you with clear images with more details, even when zoomed.
Plug and Play Without Further Configuration
Network Video Recorder will automatically search and add the camera connected to the PoE port, then you can monitor images without further configuration.
Technical Specification
| Weight |
780 g |
| Dimensions |
300 × 425 × 405 mm |
| IP Video Input |
16-ch
|
| IP Video Resolution |
Up to 8MP
|
| Input Bandwidth |
80 Mbps
|
| Audio Input |
1-ch, RCA (2.0 Vp-p, 10kΩ)
|
| HDMI Output |
1-ch, 4K(3840×2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
|
| VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
|
| Dimension |
284 mm × 207 mm × 43 mm (11.2 ” × 8.2 ”× 1.7 ”)
|
