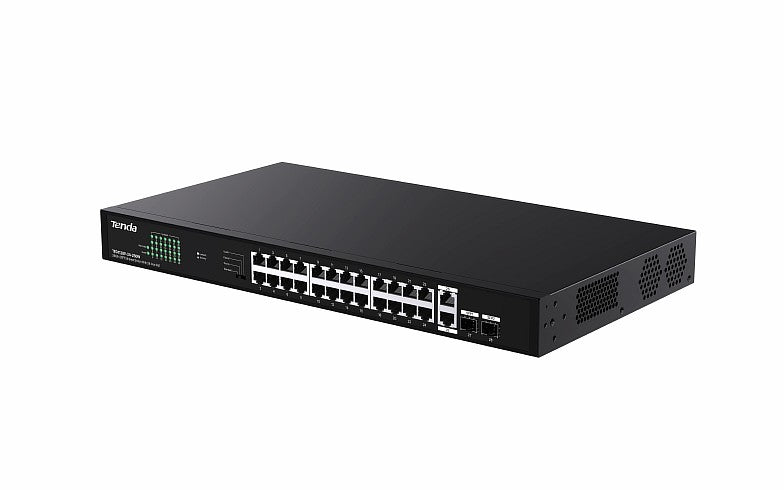

Tenda 26GE And 2SFP Ethernet Switch With 24-Port PoE

The Tenda TEG1128P-24-250W is an unmanaged gigabit Ethernet switch designed to meet the networking and power needs of medium to large-scale deployments. Equipped with 24 IEEE 802.3af/at-compliant PoE ports, it delivers up to 30W per port, with a total PoE power budget of 230W, ensuring reliable power and data transmission for devices such as IP cameras, wireless access points, and VoIP phones. The switch offers four selectable operation modes—Standard, VLAN, Priority, and Extend—providing flexibility to adapt to various network requirements. Its robust design includes 6KV lightning protection for both ports and power inputs, safeguarding against electrical surges. The standard 19-inch rackmount form factor allows for easy integration into existing network infrastructures.

Key Features

• 24 PoE Ports: Twenty-four 10/100/1000 Mbps RJ45 ports supporting IEEE 802.3af/at compliance, delivering up to 30W per port.

• High PoE Power Budget: Total PoE power output of 230W, suitable for powering multiple PoE-enabled devices simultaneously.

• Four Operation Modes: Selectable modes—Standard, VLAN, Priority, and Extend—allow for flexible network configuration to meet specific requirements.

• 6KV Lightning Protection: Enhanced protection against electrical surges for both ports and power inputs, ensuring stable operation in challenging environments.


• Rackmount Design: Standard 19-inch metal chassis supports rack, desktop, and wall mounting options for versatile deployment.

Technical Specifications

• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

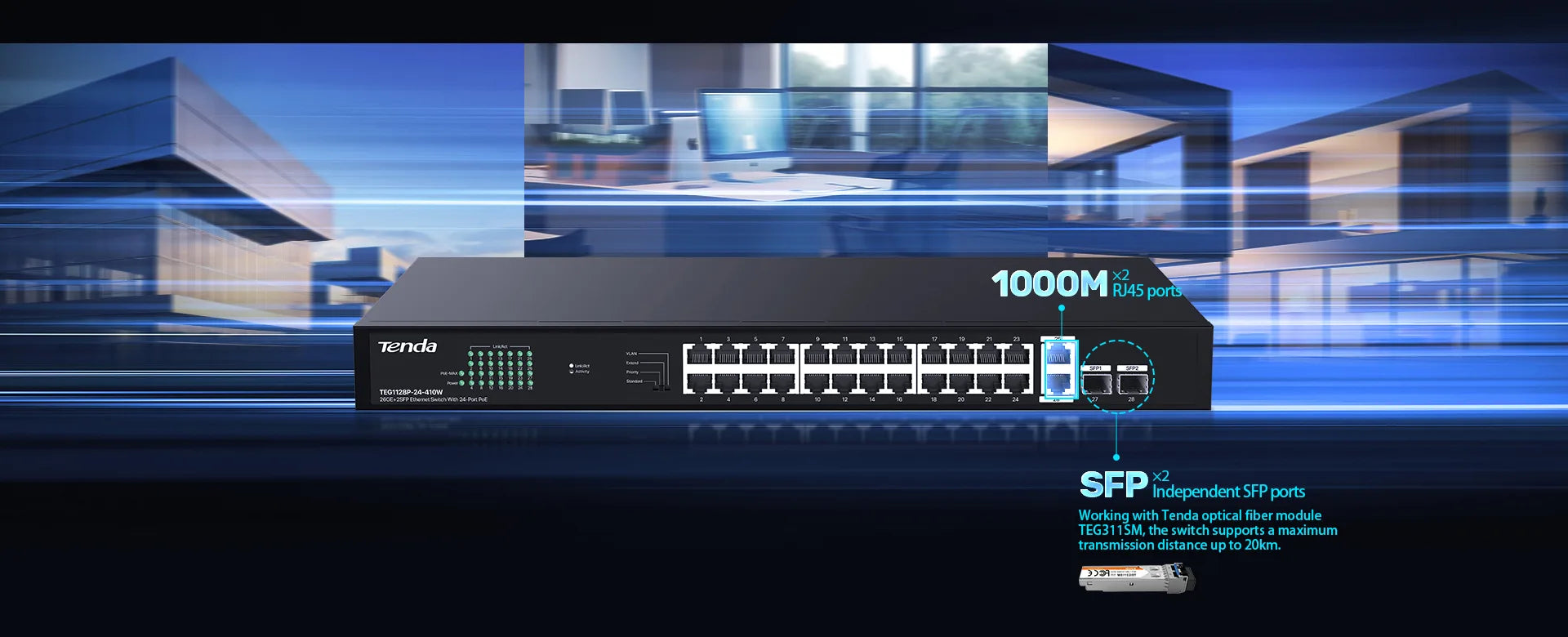

• Interfaces: 24 × 10/100/1000 Mbps RJ45 PoE ports, 2 × 10/100/1000 Mbps RJ45 uplink ports, 2 × 100/1000 Mbps SFP optical ports

• Transmission Media: CAT5/5e UTP or better

• Forwarding Mode: Store-and-forward

• Switching Capacity: 56 Gbps

• Packet Forwarding Rate: 41.7 Mpps

• MAC Address Table: 8K entries

• Buffer Size: 4 MB

• PoE Power Supply: Supports IEEE 802.3af/at standards; single port max: 30W; total device max: 230W

• Power Consumption: 250W

• Input Voltage: AC 100–240V, 50/60Hz

• Dimensions: 440 mm × 178 mm × 44 mm

• Mounting Options: Rackmount, desktop, wall-mountable

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

• Certifications: FCC, CE, RoHS
