Description

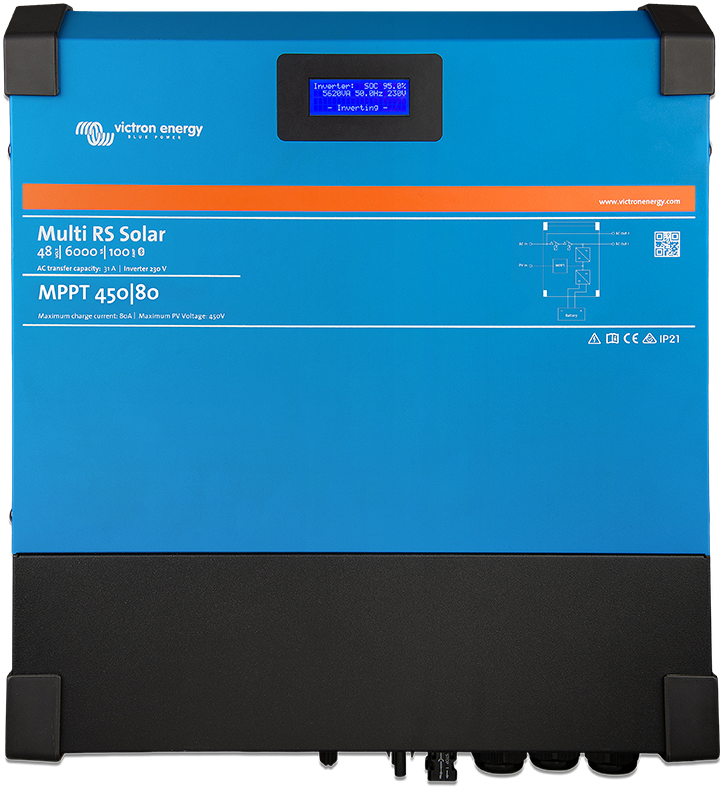

Victron Multi RS Solar 48/6000/100-450/100
Multifunctional Hybrid Bi Directional Inverter/ AC Charger / MPPT Solar Charge Controller:
Multi RS Solar
Hybrid Inverter/Charger
The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input.
Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.
Models: 6000VA
Hybrid Inverter/Charger The Multi RS Solar 48/6000 is a 48 V 6 kVA Inverter/Charger with 450 VDC 4 kWp PV input.
Combination of an inverter, AC charger, and Solar MPPT The inverter produces a perfect sine wave, and able to supply high powered appliances. It is also bi-directional, charging the battery when excess solar power or AC supply is available, or converting from the battery when it is needed.
Wide MPPT voltage range 80 – 450 VDC, with a 120 VDC PV startup voltage.
Light weight, efficient and quiet Thanks to high frequency technology and a new design this powerful inverter weighs only 11 kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
Display, Bluetooth and VictronConnect app The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.
Extendable PV capacity, both AC-coupled and DC-coupled The integrated 4 kWp PV capacity can be extended by adding Solar Chargers to the system, for example our Smart Solar Charger range, including the Smart Solar RS models. When connected in a VE.Can network, all battery charging will operate synchronously and be coordinated. Alternatively, the PV capacity can be extended by installing AC PV Inverters, of which the output power will be automatically controlled by the integrated Frequency Shift Power Control.
Communication ports VE.Can connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring. I/O Connections Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.
