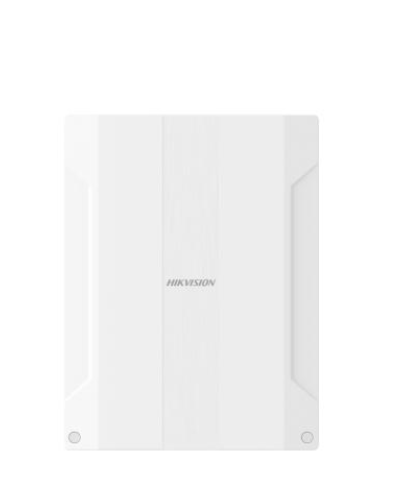

Hikvision Wireless Multi-Channel I/O Transmitter – 16 Wired Inputs, 2 Outputs, 12VDC 1A Output, Supports 8Ah Lead-Acid/Gel Batteries
Features
-
868 MHz two-way wireless communication
-
LED display shows real-time device status
-
16 onboard inputs and 2 outputs for connecting wired detectors
-
Two 12V power outputs to power external wired detectors
-
Large space for backup storage battery
Specifications
Software Features
Hardware Features
-
Serial Port: 1
-
Battery Port: 1, 12 VDC input
-
Tamper-Proof: Front and Rear
-
Power Switch: 1
-
Alarm Input: 16
-
Alarm Output: 2
-
Power Output: 2 (12V, total 1A)
Display
Electrical Characteristics
-
Battery Type: Compatible with 12V 7Ah
-
Power Supply: 100–240 VAC, 30W
-
Operation Temperature: –10°C to 40°C
-
Operation Humidity: 10%–90%
-
Battery Supply: Quiescent Current 50 mA, Max 1500 mA, Voltage 13.8V
-
220V Supply: Quiescent Current 45 mA, Max 300 mA, Voltage 220V
-
Battery Life Span: Up to 36 hours
Wireless Transmission
General
-
Installation Method: Wall Mounting
-
Dimensions (WxHxD): 261 × 199 × 86.4 mm
-
Shell Material: Plastic
-
Color: White
-
Weight: 975 g (without battery), 3024 g (with battery)
