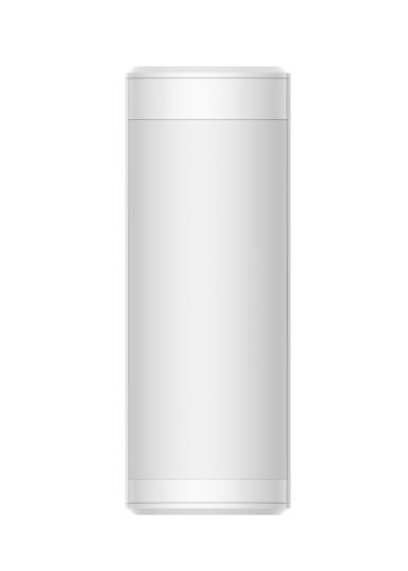

Hikvision Wireless Outdoor PIR Detector – 15m / 180°, 40kg Pet Immunity, Active IR Anti-Masking, 5× CR123A Batteries, IP65
Features
-
180° panoramic coverage
-
Active IR anti-masking
-
IP65 weather resistance for outdoor use
-
Multiple enrollment methods for easy installation
-
Frequency hopping for reliable anti-jamming wireless transmission
Specifications
Detection Performance
-
Detection Method: Passive Infrared
-
Detection Range: 15 m
-
Detection Angle: 180°
-
Detection Zones: 40
-
Detectable Speed: 0.3–2 m/s
-
Sensitivity: Auto / Low
-
White Light Filter: 20,000 lux
-
Pet Immunity: Up to 40 kg
-
Digital Temperature Compensation: Supported
-
Anti-Masking: Supported
-
Adaptable Coverage: Pattern mask included
Features
-
Digital Processing: Supported
-
Sealed Optics: Supported
-
Tamper Protection: Front & Rear
-
Environment Temperature Indicator: Supported
-
Signal Strength Indicator: Supported
Interface
Transmission
-
Technology: Tri-X Wireless
-
Method: Two-Way RF Wireless
-
Transmission Frequency: 868 MHz
-
Security: AES-128 Encryption
-
Transmission Range (Free Space): 1.6 km
-
Frequency Hopping: Supported
-
Enrolling Method: Power-up / Remote ID / QR Code
Electrical Characteristics
-
Standard Battery Life: Up to 5 years (standby, reduced in low temperatures)
-
Power Supply: Battery powered
-
Battery Type: CR123A × 5
-
Typical Voltage: 3V
General
-
Operating Temperature: -25°C to 60°C
-
Storage Temperature: -25°C to 60°C
-
Operating Humidity: 10%–90%
-
IP Rating: IP65
-
Dimensions: 75 × 202 × 73 mm
-
Weight: 512.5 g
-
Mounting Height: 0.8–1.2 m
-
Mounting Method: Wall
-
Application Scenario: Outdoor
