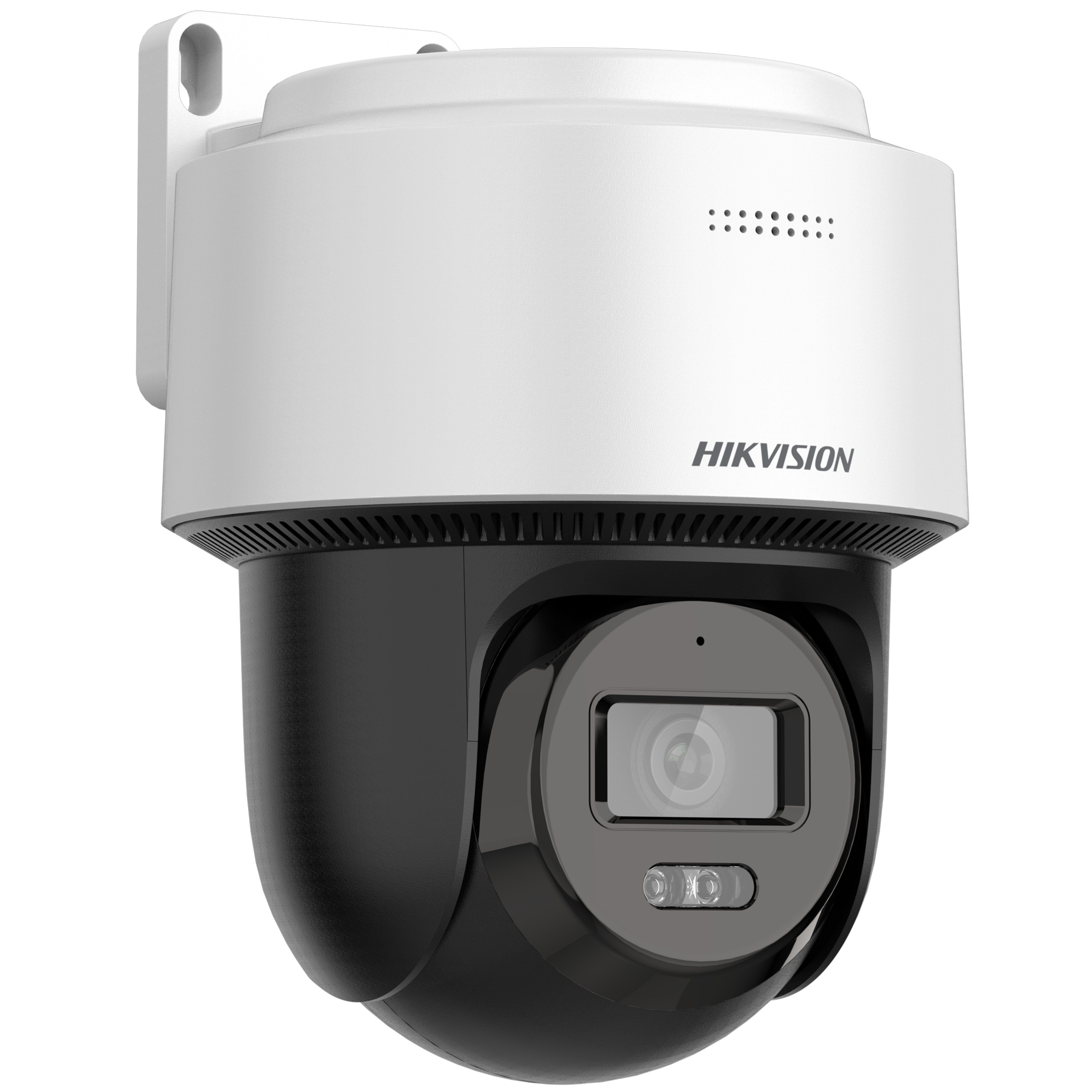

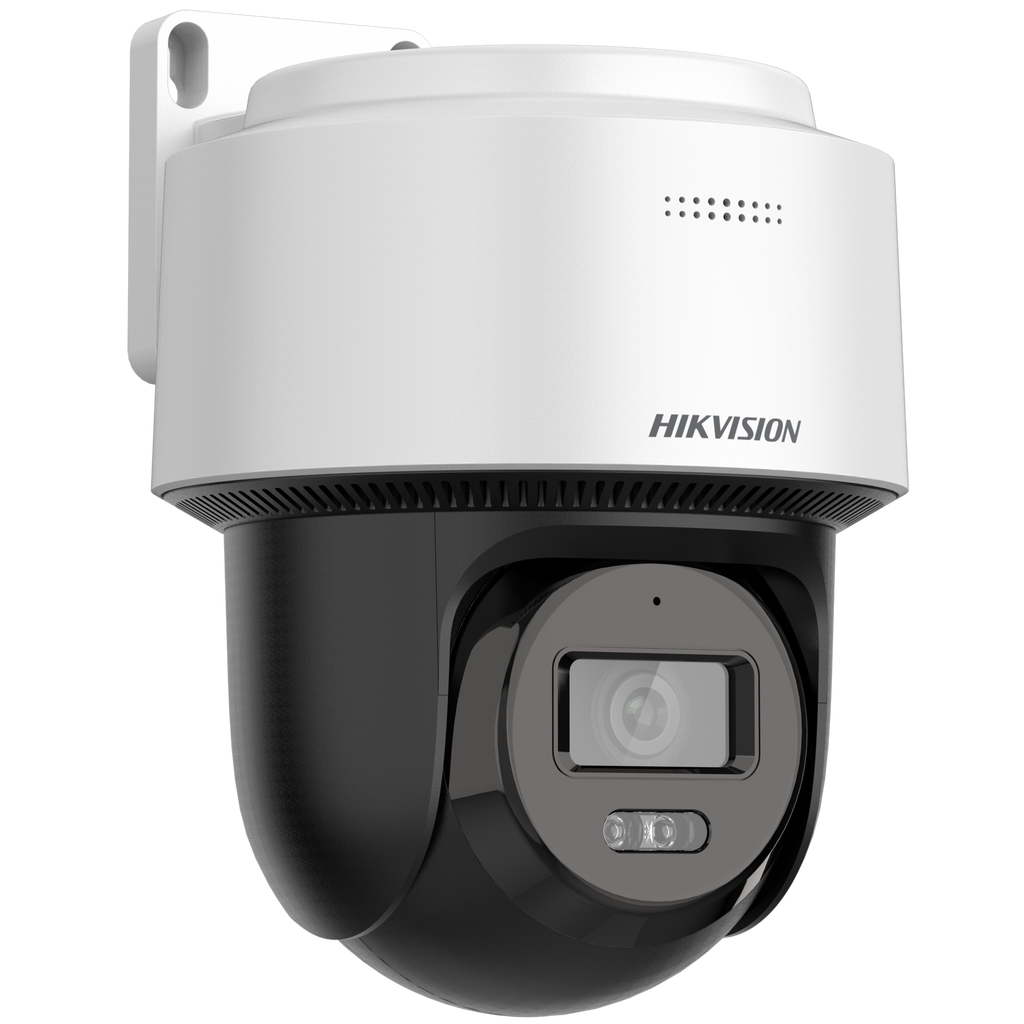

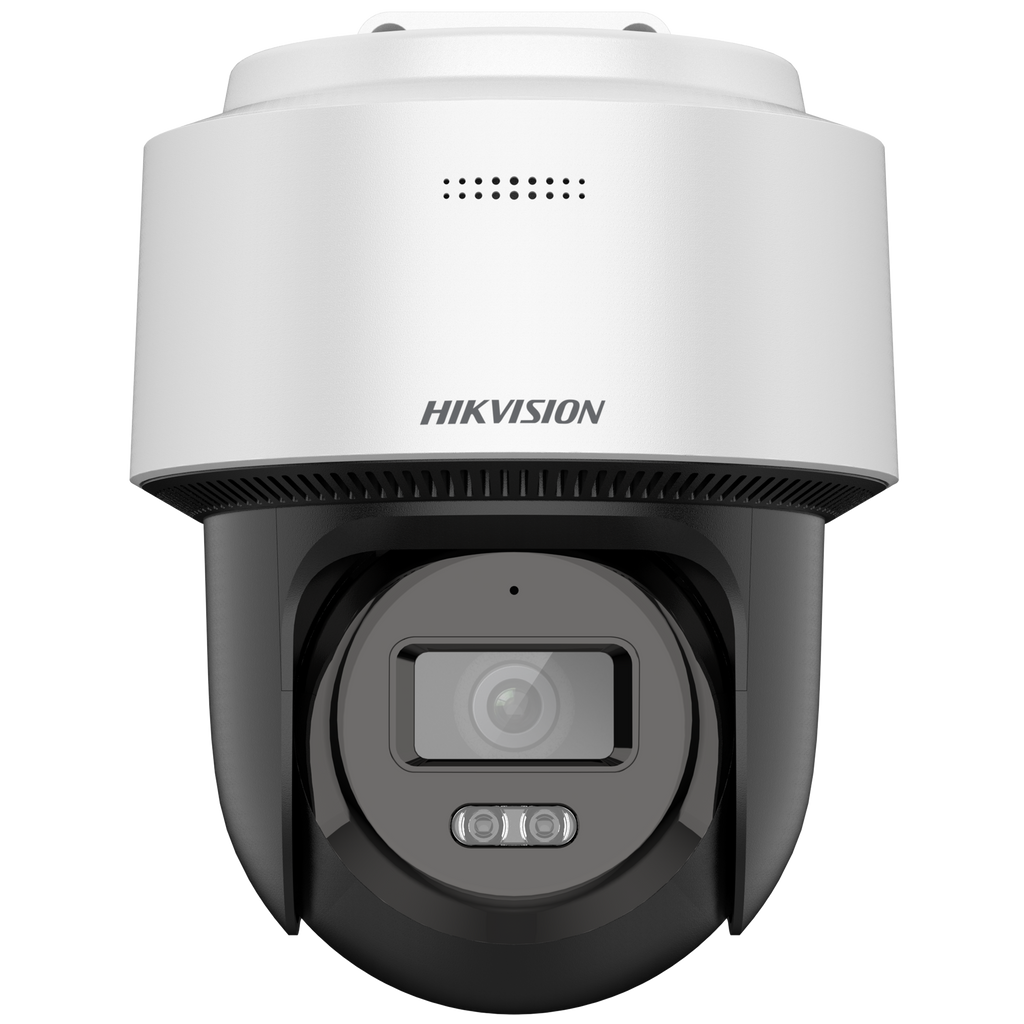

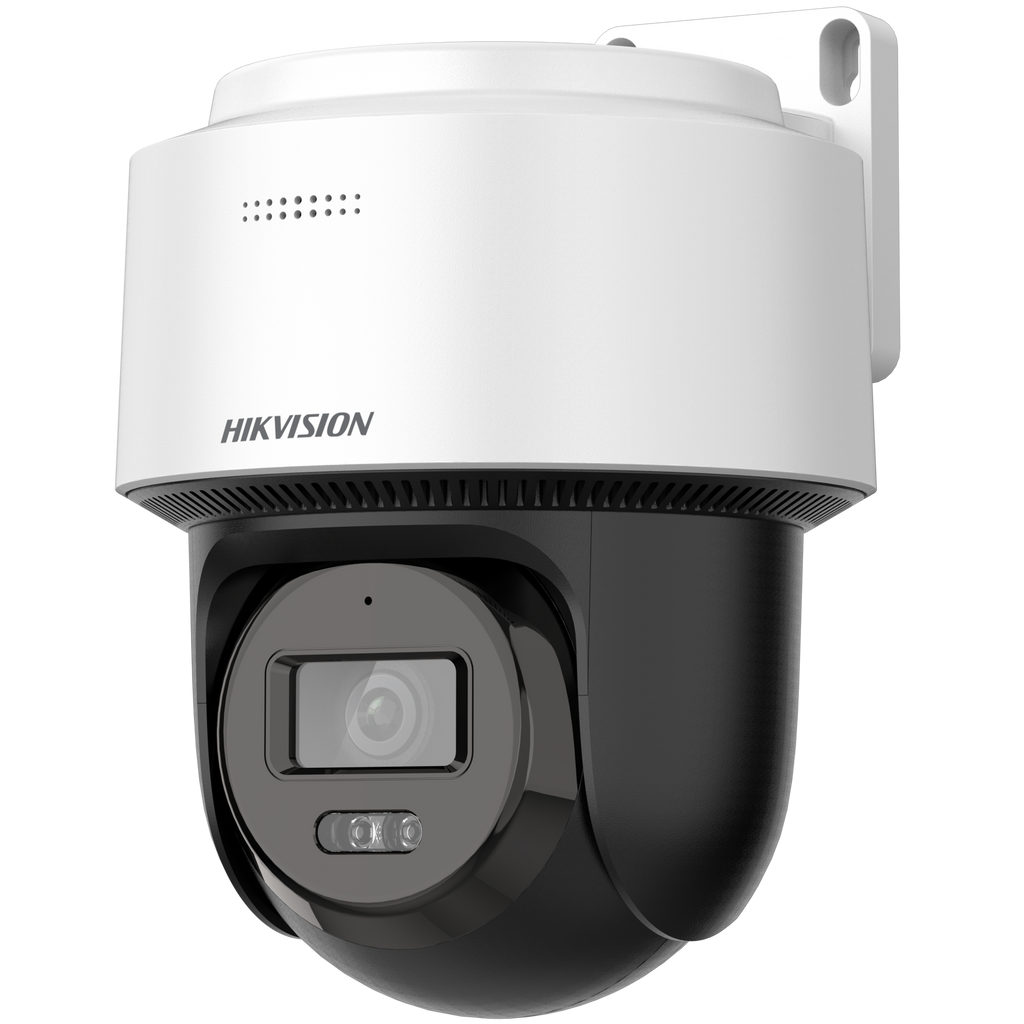

4MP 2.8mm PT Camera 30m Hybrid-Light Auto-Track Lite Microphone + Speaker Motion 2.0 VCA 12VDC/PoE – No Adapter Included

Features

• High-quality imaging with 4 MP resolution

• Supports Human Detection and Auto-tracking Lite

• Smart Hybrid Light: advanced technology with long range

• Hik-Connect cloud service and app for remote management and device viewing

• Built-in microphone and speaker for real-time audio security

• Built-in memory card slot supporting microSD/SDHC/SDXC up to 512 GB

• Water and dust resistant (IP66)

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Max. Resolution: 2560 × 1440

• Min. Illumination: Color 0.01 Lux (F2.0, AGC ON), B/W 0.005 Lux (F2.0, AGC ON), 0 Lux with light

Lens

• Focal Length: 2.8 mm, 4 mm

• FOV:

  • 2.8 mm – Horizontal 94°, Vertical 49°, Diagonal 114°

  • 4 mm – Horizontal 70°, Vertical 35°, Diagonal 85°

• Aperture: F1.6

Illuminator

• Supplement Light Type: IR, White Light

• Supplement Light Range: White light up to 30 m, IR up to 30 m

• IR Wavelength: 850 nm

PTZ

• Pan Range: 0°–345°

• Tilt Range: 0°–80°

• Pan Speed: Up to 25°/s

• Tilt Speed: Up to 20°/s

Video

• Main Stream: 50 Hz / 60 Hz – 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream: 50 Hz – 25 fps (640 × 480, 640 × 360)

• Video Compression: H.265, H.264, MJPEG

• Bit Rate: 32 Kbps to 8 Mbps

• H.264 Type: Baseline, Main, High profile

• H.265 Type: Main profile

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

• Bit Rate: 8–192 Kbps depending on codec

• Sampling Rate: 8 kHz, 16 kHz

• Environment Noise Filtering: Yes

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour

• API: ONVIF (Profile S/G/T), ISAPI, SDK


• Settings: Saturation, brightness, contrast, sharpness adjustable via software/web

• WDR: Digital WDR

• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet: 1 RJ45 10/100 M self-adaptive port

• Microphone: Built-in

• Speaker: Built-in

• On-board Storage: MicroSD/SDHC/SDXC up to 512 GB

Event

• Basic Event: Motion detection (supports human target), video tampering alarm, exception

• Linkage: Upload to FTP/memory card, notify center, send email, trigger capture, audible warning, auto-tracking lite

General

• Power: 12 VDC ±25%, 0.75 A, max 9 W (Ø5.5 mm plug, reverse polarity protection), PoE IEEE 802.3af, 36–57 V, max 10.5 W

• Dimensions: Camera 163.9 × 185.8 × 131.9 mm; Package 224 × 164 × 230 mm

• Weight: Camera 600 g; Package 900 g

• Material: Plastic

• Operating Conditions: -30 °C to 40 °C, ≤90% humidity, non-condensing

• Functions: Mirror, password protection, watermark

Approval & Protection

• EMC: CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 50130-4:2011 + A1:2014)

• Safety: CB (IEC 62368-1:2014 + A11), CE-LVD (EN 62368-1:2014/A11:2017)

• Environment: CE-RoHS, REACH

• Protection: IP66
