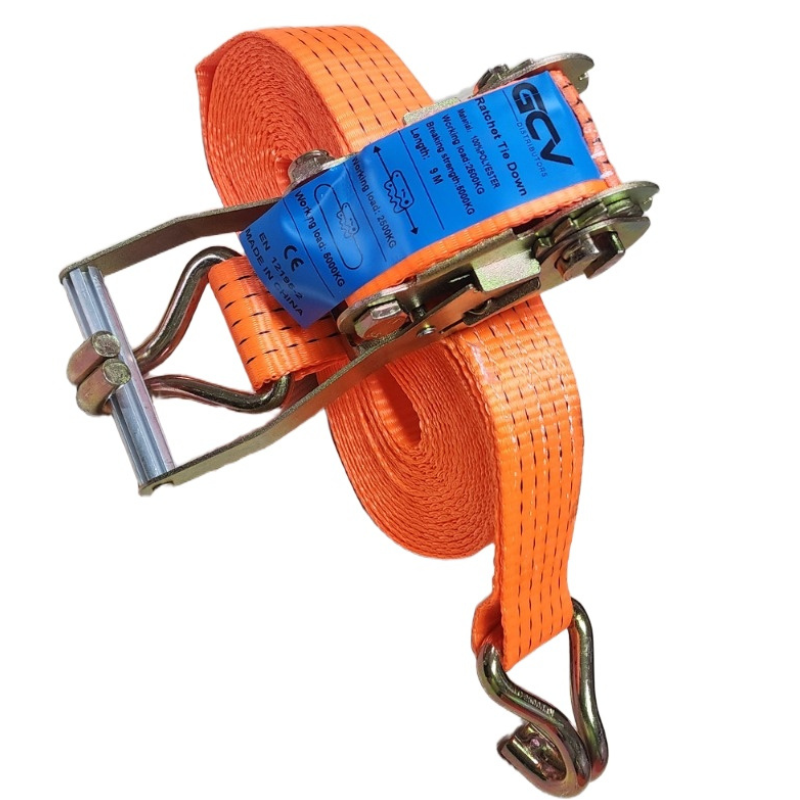

This 5-ton, 50mm x 9m heavy-duty ratchet tie-down set is designed for securing heavy loads during transport, typically on flatbed trailers, trucks, and, for industrial use.
Key Specifications & Technical Data:
Strap Width:50 mm (2 inches)
Strap Length:9 meters
Breaking Force (BF) / Minimum Breaking Strength (MBS):5000 kg (5 Tonnes)
Working Load Limit (WLL) / Lashing Capacity (LC):2500 kg (2.5 Tonnes)
Material:High-quality, durable polyester webbing
Hardware:Equipped with J-hooks (or claw hooks) and a ratchet buckle for tensioning
Mechanism:One-hand tensioning and quick-release handle
Features & Applications:
Compliance:EN 12195-2 compliant (standard for safety in load restraint)
Usage:Ideal for securing machinery, vehicles, steel, and large equipment
Durability:High resistance to abrasion and wear
Design:Two-part system (long strap with hook + short ratchet strap with hook)
Note: Based on standard industry, the "5 Ton" rating often refers to the total breaking strength of the assembly, with a working load (using it in a "straight pull" or "straight line" configuration) of 2500kg or half the breaking capacity. Some products may refer to a 15-ton breaking strength for the whole assembly, but 5000kg is standard for 50mm heavy-duty, which equates to a 2500kg lashing capacity.
