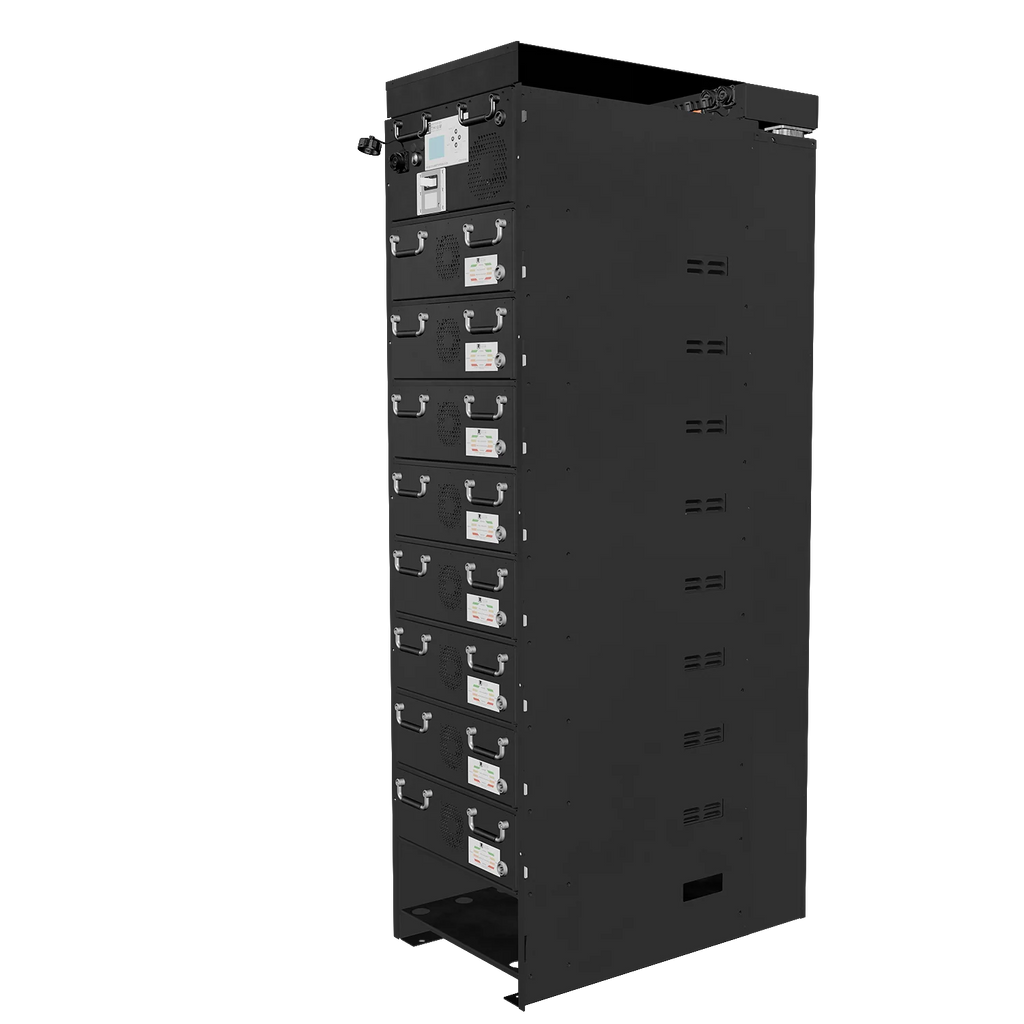

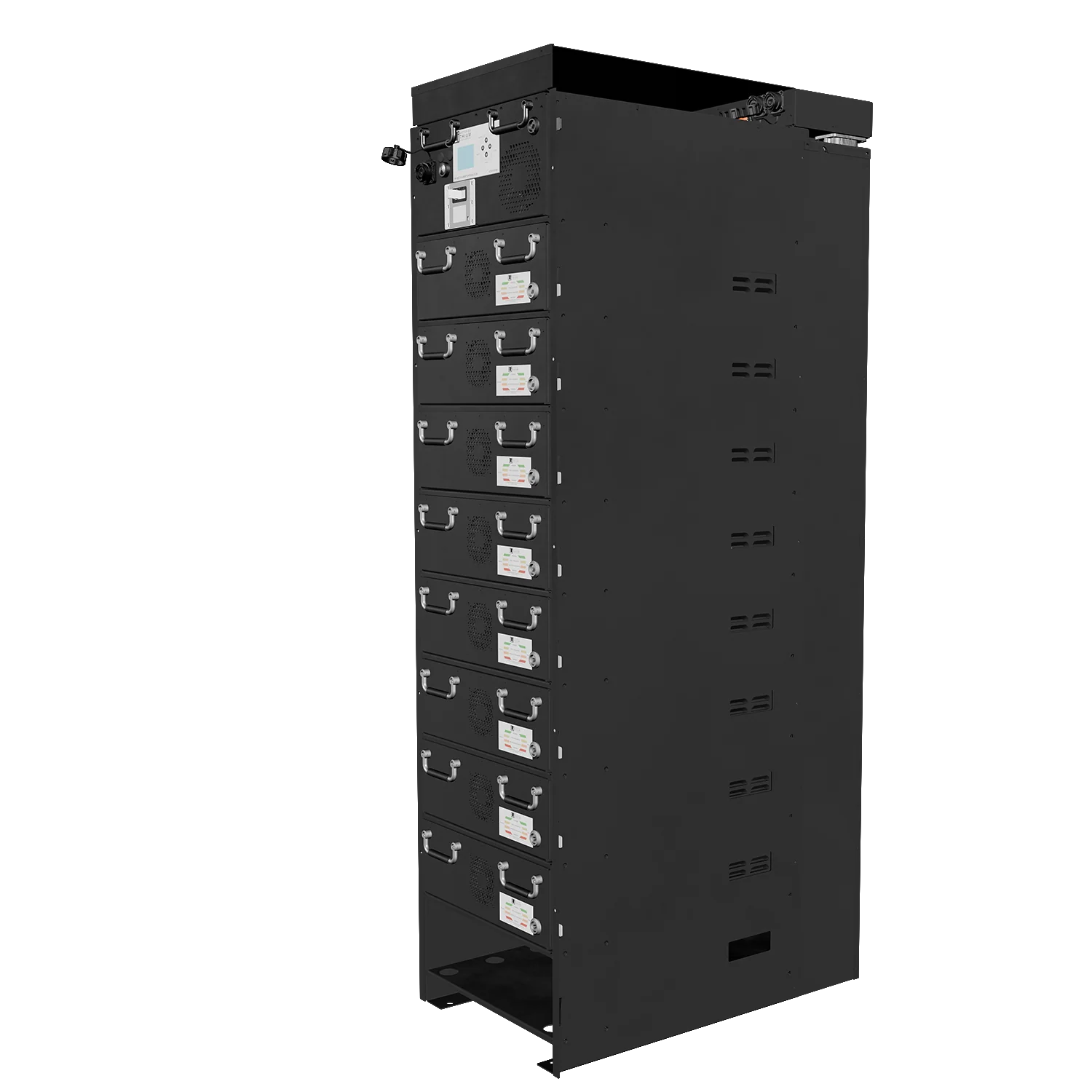

614.4V 104Ah 63.9kWh LBSA Rhino Intelliflex High Voltage Battery
Meet the LBSA High-Voltage Built Unit – a fully assembled, ready-to-install energy storage solution combining a steel rack, HV104-14WFRE modules, and controller for a clean, high-efficiency system. With built-in click-connectors and a concealed main cable compartment, it offers a neat, cable-free appearance while ensuring hassle-free installation. Available in configurations from 3 to 11 modules, these units provide scalable energy storage for residential, commercial, industrial, or utility-scale applications. Designed for reliability and flexibility, each built unit delivers future-ready performance in a compact, organized, and fully integrated package.
| Number of Modules |
Capacity |
Min Voltage |
Max Charge Voltage |
| 3 x Modules |
23.9 kWh |
198 V |
249.64 V |
| 4 x Modules |
31.9 kWh |
264 V |
332.87 V |
| 5 x Modules |
39.9 kWh |
330 V |
416.07 V |
| 6 x Modules |
47.9 kWh |
396 V |
499.28 V |
| 7 x Modules |
55.9 kWh |
462 V |
582.50 V |
| 8 x Modules |
63.9 kWh |
528 V |
665.71 V |
| 9 x Modules |
71.8 kWh |
594 V |
748.93 V |
| 10 x Modules |
79.8 kWh |
660 V |
832.14 V |
| 11 x Modules |
87.8 kWh |
726 V |
915.35 V |
WARRANTY
The LBSA Rhino Intelliflex High Voltage Rack is built for long-term reliability and peace of mind, offering a 10-year warranty with unlimited cycles. Designed to deliver consistent performance year after year, it's a rack solution you can depend on for both durability and efficiency.
KEY FEATURES
The LBSA Rhino IntelliFlex High Voltage Rack offers a robust housing solution designed to accommodate HV104-14WFRE modules and controllers. Built for scalability, it supports up to 9 or 11 modules (depending on configuration) with integrated cable management and click-connector technology. The rack features a concealed cable compartment ensuring longevity and reliability. Its steel construction facilitates easy integration into existing setups, making it suitable for various applications from residential to utility-scale.
| CABLE FREE POWER AND COMMUNICATION EASY. |
| BUILT-IN CLICK CONNECTORS. |
| SIMPLE MODULE INSTALLATION. |
| CONCEALED CABLE COMPARTMENT. |
| ROBUST STEEL CONSTRUCTION. |
| SCALABLE MODULE CAPACITY (UP TO 9 OR 11 MODULES). |
