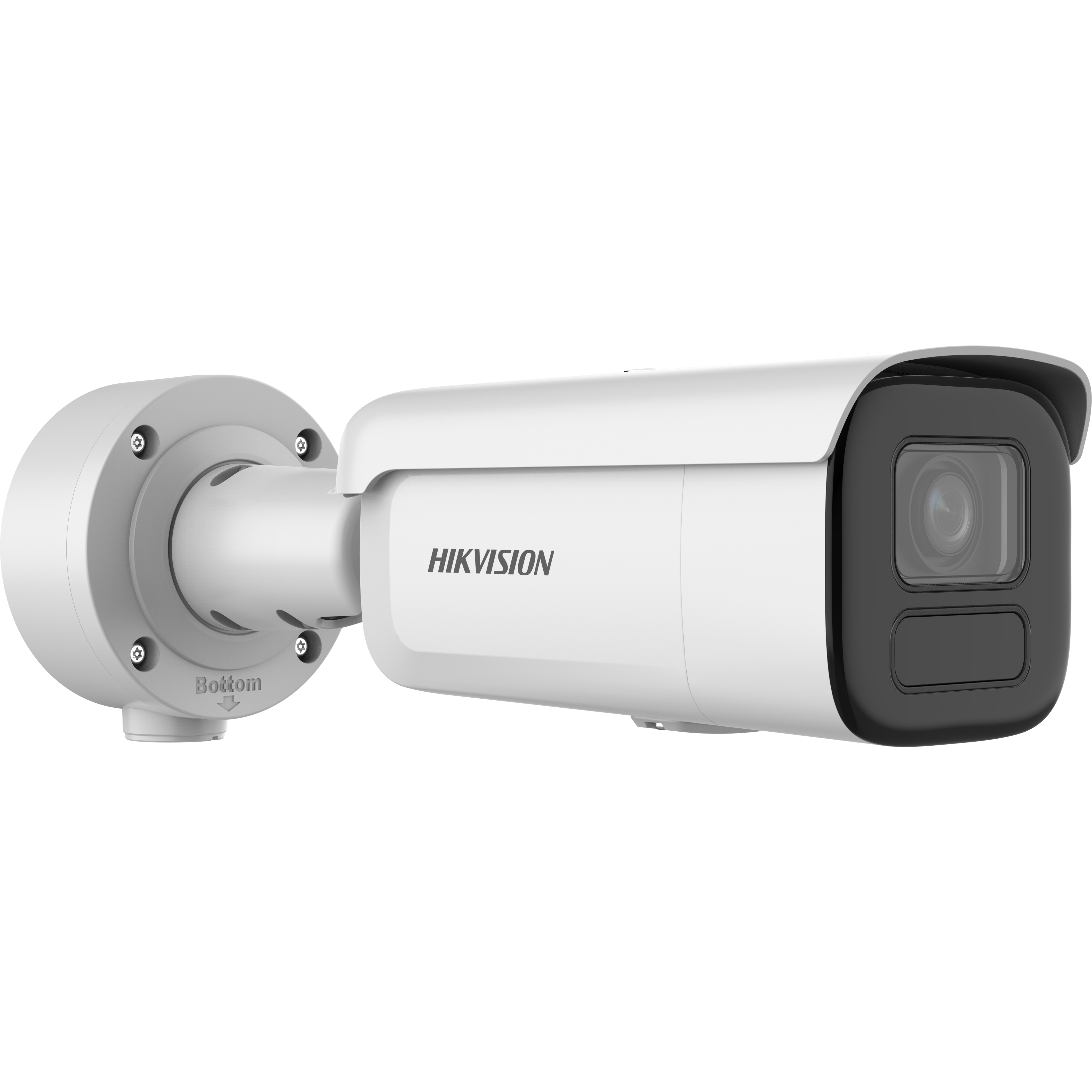

AcuSense 4MP Bullet Camera – 2.8–12 mm Lens, 60 m IR, 120 dB WDR, Audio/Alarm, 12 VDC/PoE

Hikvision AcuSense technology provides clear images with advanced low-light performance using DarkFighter technology, 24/7. The motorized varifocal lens allows flexible installation and optimized coverage. Intelligent features help detect and classify humans and vehicles, while the robust housing ensures long-term reliability.

Features

• High-quality imaging with 4 MP resolution

• Excellent low-light performance via DarkFighter technology

• Clear images in strong backlight with 120 dB WDR

• Efficient H.265+ compression

• Motorized varifocal lens (2.8–12 mm) for flexible monitoring

• Focus on human and vehicle classification via deep learning

• Active IR illumination up to 60 m

• Water and dust resistant (IP67) and vandal resistant (IK10)

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Max. Resolution: 2688 × 1520

• Min. Illumination: Color 0.001 Lux @ F1.0, B/W 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day/Night: IR cut filter

• Angle Adjustment: Pan 0°–355°, Tilt 0°–90°, Rotate 0°–360°

Lens

• Type: Motorized varifocal, 2.8–12 mm

• FOV: Horizontal 105.4°–34.3°, Vertical 56.1°–19.3°, Diagonal 125.8°–39.4°

• Iris: Fixed, Aperture F1.0

• Depth of Field: 1 m – ∞

• DORI: Wide D 63.4 m, O 25.2 m, R 12.7 m, I 6.3 m; Tele D 180.6 m, O 71.7 m, R 36.1 m, I 18.1 m

Illuminator

• Type: IR

• Range: Up to 60 m

• Wavelength: 850 nm

• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz 25 fps (2688 × 1520, 1920 × 1080), 60 Hz 30 fps

• Sub-Stream: 50 Hz 25 fps (1280 × 720, 640 × 480), 60 Hz 30 fps

• Compression: H.265/H.264/H.265+/H.264+

• WDR: 120 dB

• Image Enhancement: BLC, HLC, 3D DNR

• Privacy Mask: 4 programmable polygon

Audio & Alarm

• 1 audio input / 1 audio output

• 1 alarm input / 1 alarm output (max. 24 VDC/24 VAC, 1 A)

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, SSL/TLS, WebSocket

• User Access: Up to 32 users, 3 levels (admin, operator, user)

• Storage: microSD up to 512 GB, NAS, ANR, NVR compatible

• Client: iVMS-4200, Hik-Connect, Hik-Central

General

• Power: 12 VDC ±25%, max 13 W; PoE IEEE 802.3at, max 15 W

• Material: Metal body, cover, and bracket

• Dimensions: 298 × 97.9 × 95.7 mm

• Weight: 1490 g (3.3 lb), With Package: 2349 g (5.2 lb)

• Operating Temp: -30 °C to 60 °C, Humidity ≤95% non-condensing

• Protection: IP67, IK10
