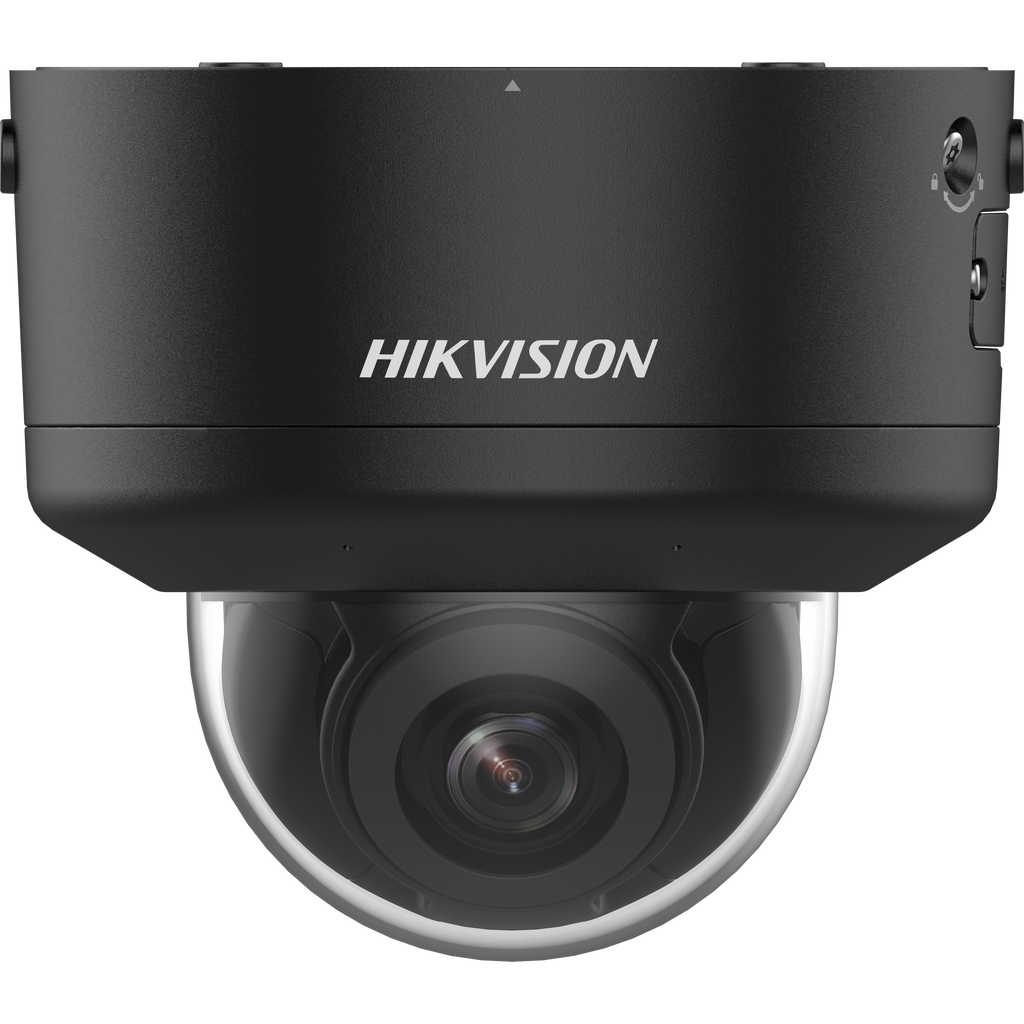

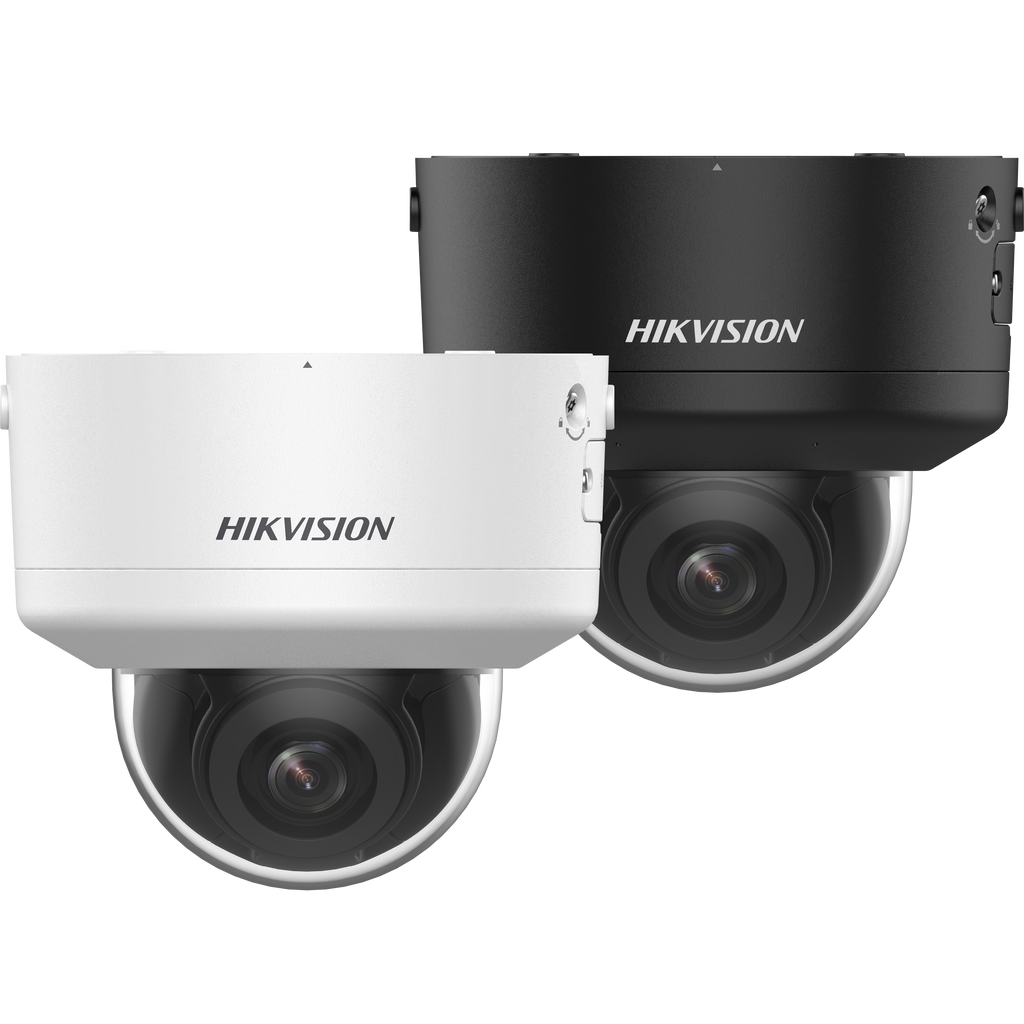

AcuSense 4MP PTZ Dome – 2.8–12mm Lens, 40m IR, 120dB WDR, 12VDC/PoE

A versatile 4MP PTZ dome camera with motorized pan, tilt, rotate, and zoom. Powered by DarkFighter technology for excellent low-light performance, plus deep learning-based human and vehicle detection. IP66-rated and IK10 vandal resistant.

Features

• Motorized PTZ (Pan/Tilt/Rotate) and zoom for easy installation and monitoring

• Excellent low-light imaging with DarkFighter technology

• Clear imaging against strong backlight via 120 dB WDR

• Human and vehicle classification based on deep learning

• Built-in audio and alarm interface

• Water and dust resistant (IP66) and vandal resistant (IK10)

Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max Resolution: 2688 × 1520

• Min Illumination: 0.0008 Lux @ F1.2 (Color), 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day/Night: IR cut filter

• Angle Adjustment: Remote, Pan 0°–350°, Tilt 0°–85°, Rotate 0°–350° (up to 1,000 cycles)

Lens

• Type: Varifocal, motorized 2.8–12 mm

• FOV: 114.6°–41.8° H, 59.3°–23.6° V, 141.3°–48.1° D

• Iris: Fixed, Max Aperture F1.2

• Depth of Field: 1 m to ∞

DORI

• Wide: D 61.5 m, O 24.4 m, R 12.3 m, I 6.2 m

• Tele: D 151.7 m, O 60.2 m, R 30.3 m, I 15.1 m

Illuminator

• Type: IR, Smart Supplement Light

• Range: Up to 40 m

• IR Wavelength: 850 nm

Video

• Main Stream: 25–30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream: 25–30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Compression: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

• Bit Rate: 32 Kbps to 16 Mbps

• ROI: 1 fixed region for main and sub-stream

Audio & Alarm

• Audio: Mono, 1 input, 1 output, multiple codecs supported

• Alarm: 1 input, 1 output (max 24 VDC/24 VAC, 1 A)

Network

• Protocols: TCP/IP, HTTP/HTTPS, RTSP, FTP, DHCP, DNS, IPv4/IPv6, SNMP, UPnP, 802.1X, SSL/TLS, WebSocket, etc.

• Users: Up to 32 (Admin/Operator/User)

• Live View: Up to 6 channels

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, IE 11


• WDR: 120 dB

• Enhancement: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• Day/Night: Day, Night, Auto, Schedule

• Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance

Interface & Storage

• Ethernet: 1 × RJ45 (10/100 Mbps)

• On-board Storage: microSD up to 512 GB

General

• Power: 12 VDC ±25%, max 12.6 W; PoE IEEE 802.3at, max 15 W

• Material: Metal

• Dimensions: Ø155 × 140.4 mm

• Weight: 840 g (1.9 lb), With Package: 1450 g (3.2 lb)

• Operating Temperature: –30 °C to 60 °C, Humidity ≤95%

• General Functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding, flash log

• Languages: 33

Approval

• EMC: CE-EMC, IC, RCM

• Safety: CB, CE-LVD

• Environment: CE-RoHS, WEEE, REACH

• Protection: IP66, IK10
