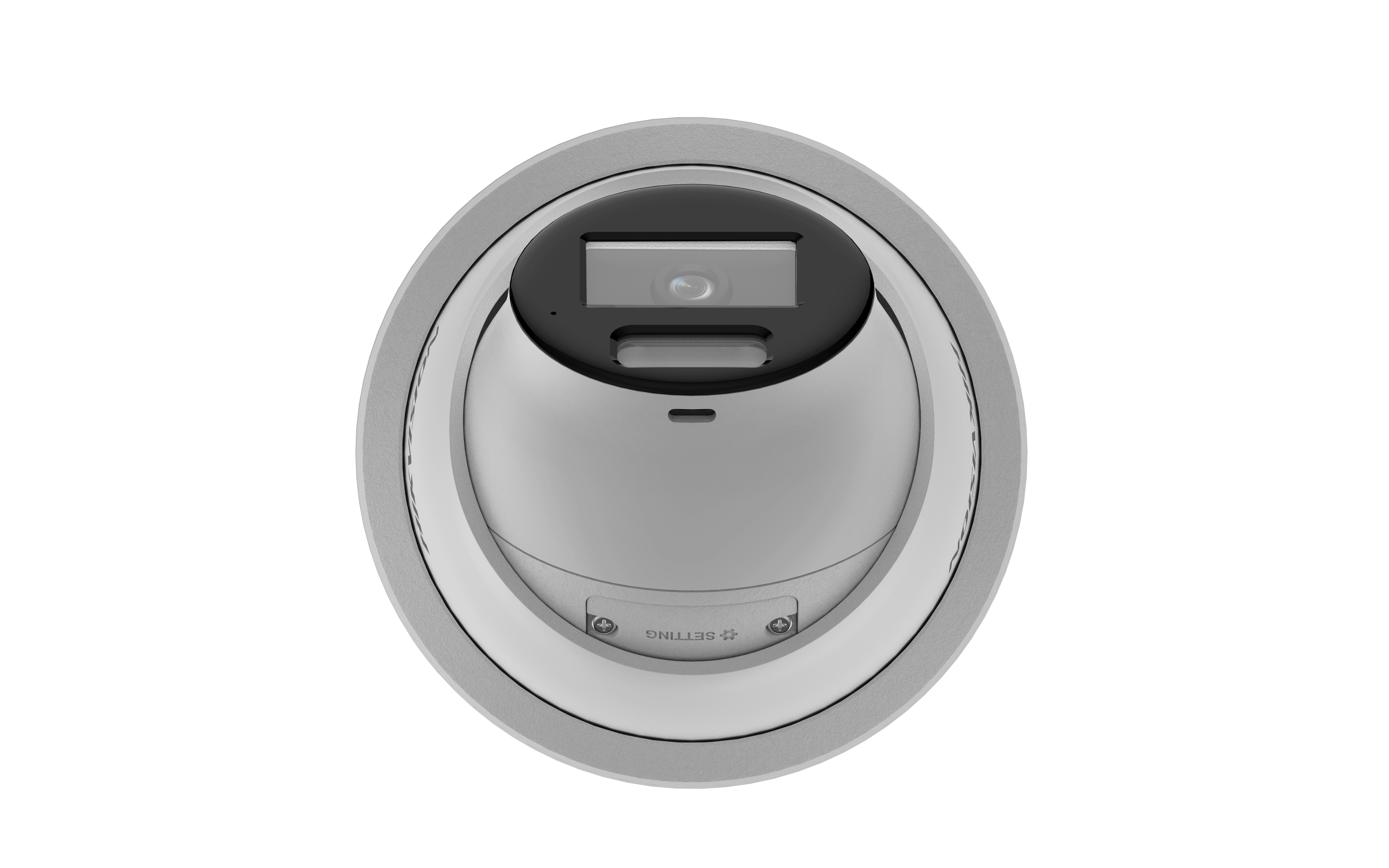

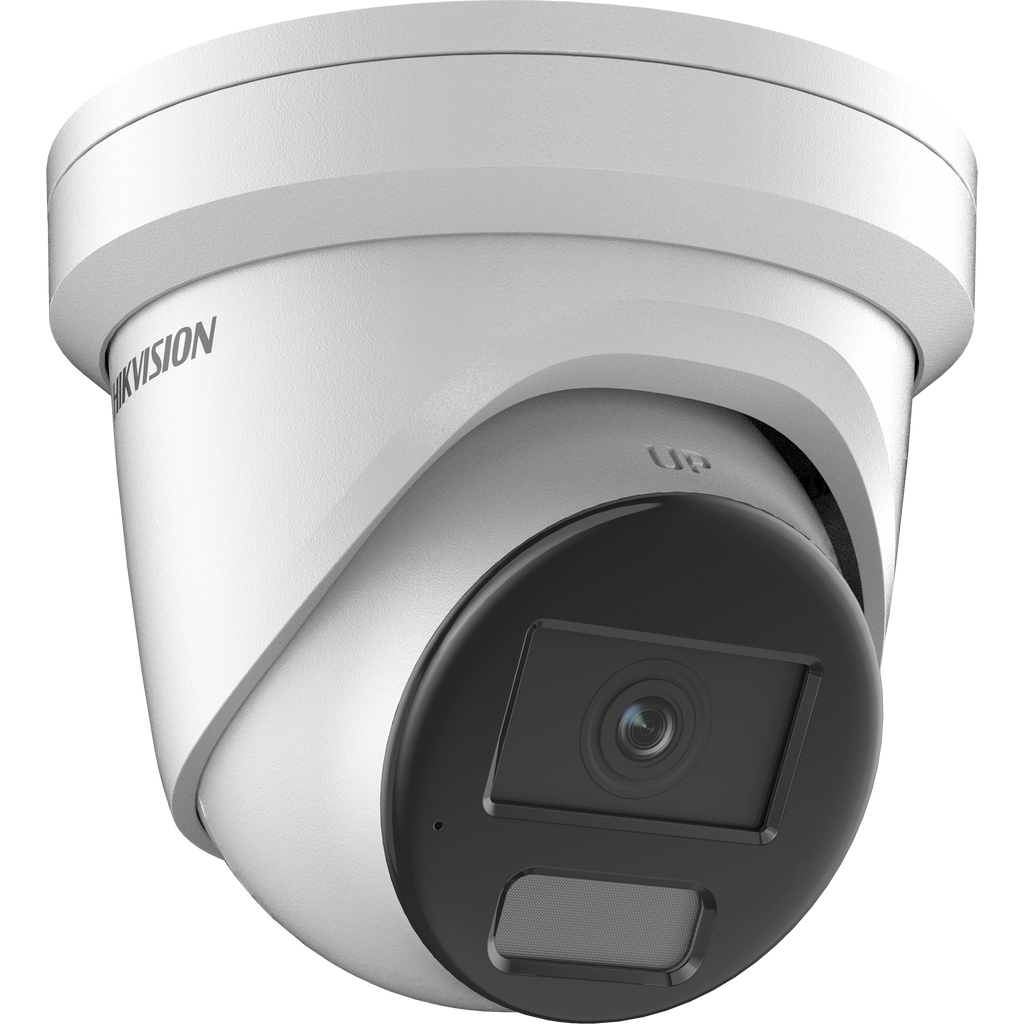

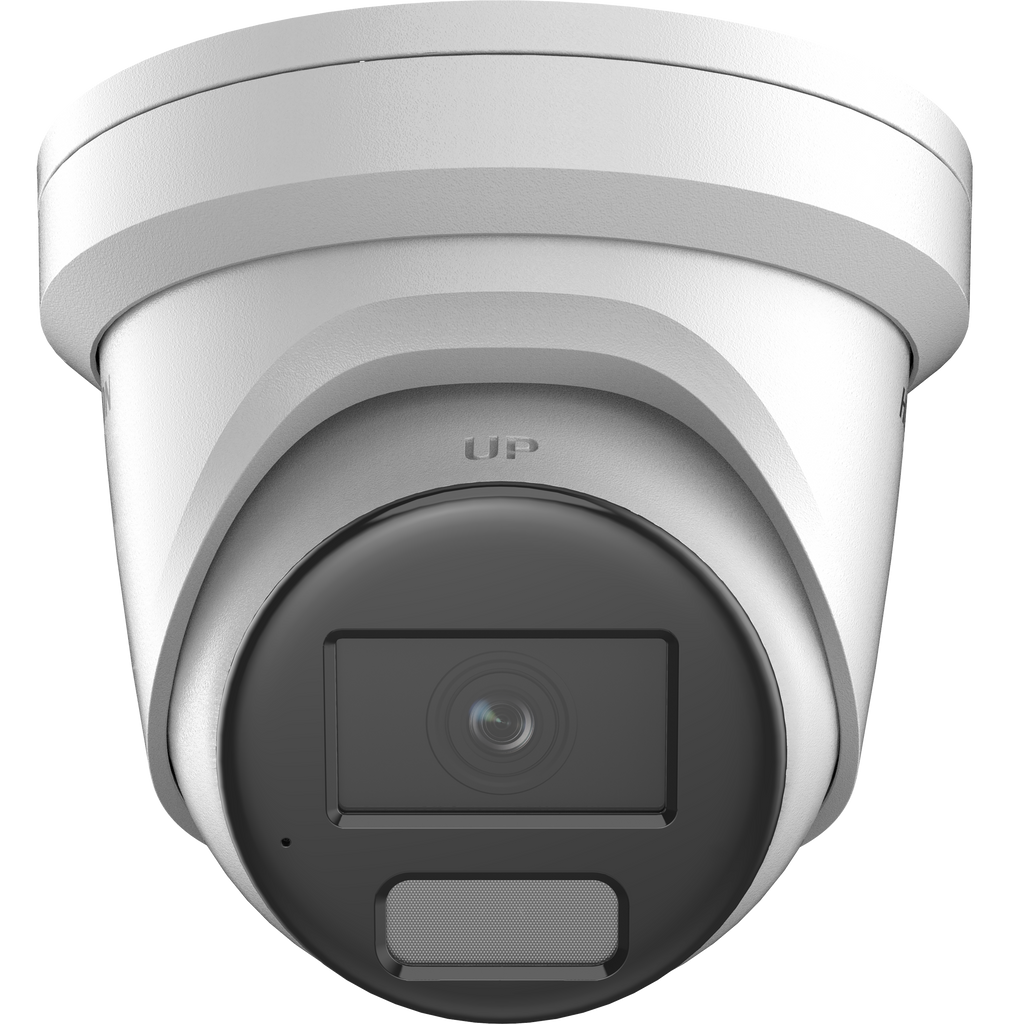

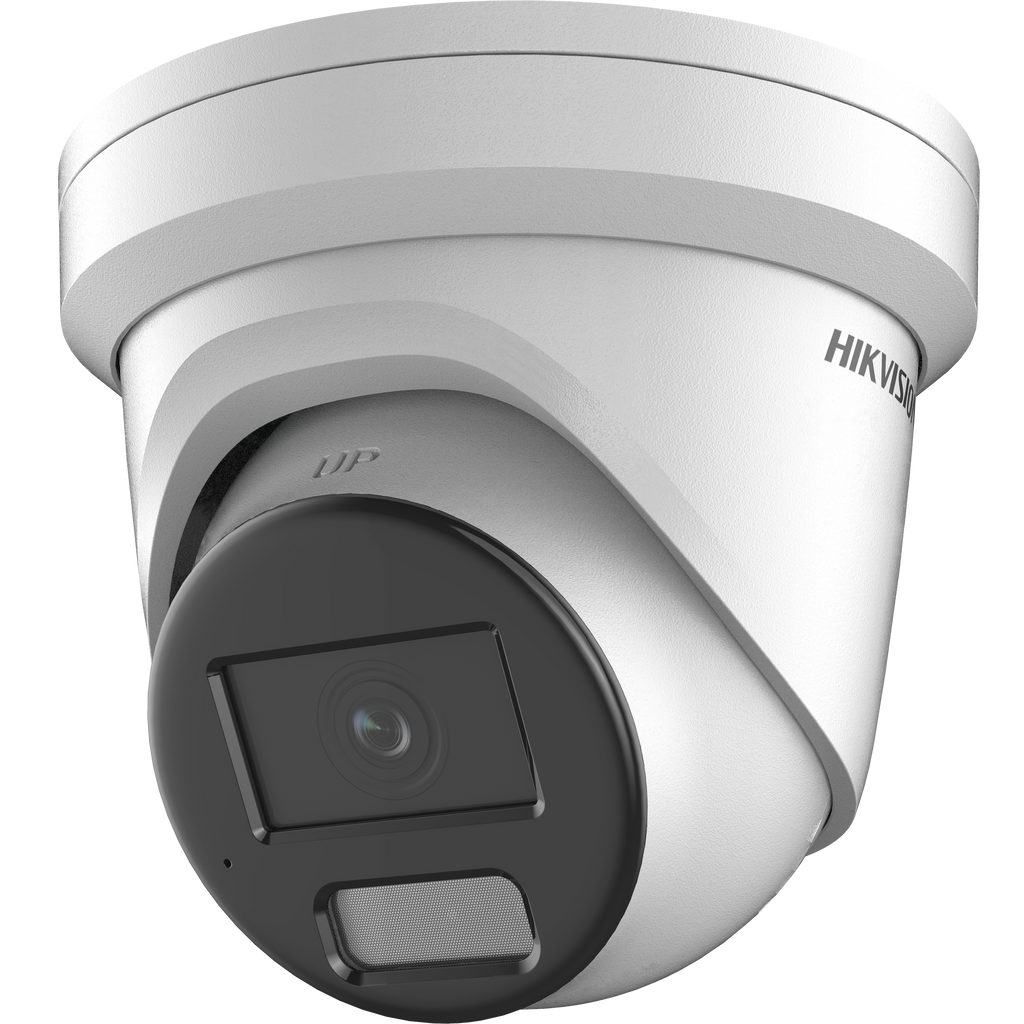

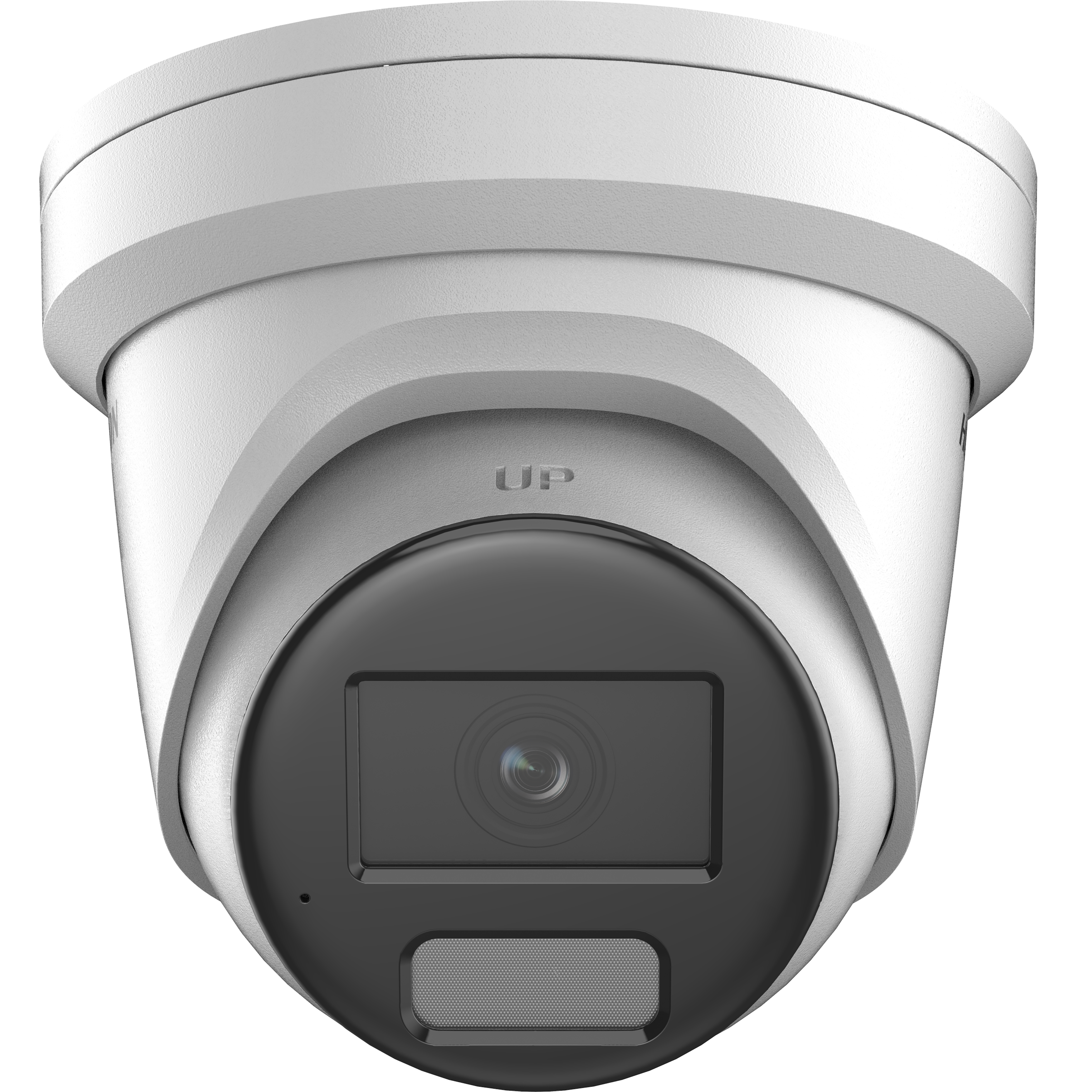

ColorVu 4MP Turret – 2.8mm Lens, 40m Hybrid-Light, 130dB WDR, 12VDC/PoE

This 4MP ColorVu turret camera delivers full-color imaging with long-range Smart Hybrid Light. It supports human and vehicle classification via deep learning, offers clear imaging under strong backlight, and includes an optional built-in microphone for real-time audio security. The camera is water and dust resistant (IP67).

Features

• High-quality 4 MP resolution imaging

• Smart Hybrid Light for long-range illumination

• 130 dB WDR for clear imaging in backlit environments

• Efficient H.265+ video compression

• Human and vehicle classification with deep learning

• Built-in microphone (-U) for audio security

• IP67 weather resistance

Specifications

Camera

• Image sensor: 1/1.8" Progressive Scan CMOS

• Max resolution: 2688 × 1520

• Min illumination: 0.0005 Lux @ F1.0, 0 Lux with light

• Shutter: 1/3 s to 1/100,000 s

• Day/Night: IR cut filter

• Angle adjustment: Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°

Lens

• Type: Fixed focal lens, 2.8mm or 4mm optional

• 2.8mm FOV: 111.1° H, 57.6° V, 138.5° D

• 4mm FOV: 95.2° H, 48.3° V, 117.4° D

• Mount: M16

• Aperture: F1.0

• Depth of field: 2.8mm: 2.5 m to ∞, 4mm: 3.1 m to ∞

DORI Range

• 2.8mm: Detect 61 m | Observe 24 m | Recognize 12 m | Identify 6 m

• 4mm: Detect 75 m | Observe 30 m | Recognize 15 m | Identify 7 m

Illuminator

• Type: IR + White Light

• Range: up to 40 m

• Smart lighting supported

• IR wavelength: 850 nm

Video

• Main stream: 25–30 fps (up to 2688 × 1520)

• Sub-stream & third stream supported

• Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Bitrate: 32 Kbps to 8 Mbps

• ROI and SVC supported

Audio (-U)

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Bit rate: 16–320 Kbps

• Sampling rate: 8–48 kHz

• Built-in microphone supported

• Environment noise filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, RTSP, FTP, DHCP, DNS, IPv4/IPv6, SNMP, ONVIF, and more

• Users: up to 32

• Storage: microSD up to 512 GB, NAS, ANR

• Client software: iVMS-4200, Hik-Connect, Hik-Central

• Live view: up to 6 channels


• WDR: 130 dB

• Enhancements: BLC, HLC, 3D DNR

• SNR: ≥ 52 dB

• Privacy masks: 4

• Image adjustments: brightness, contrast, saturation, sharpness, gain, white balance

Interface

• 1 × RJ45 (10/100 Mbps)

• Reset key: Yes

Events

• Motion detection with human/vehicle filtering

• Video tampering detection

• Scene change detection

• Event actions: recording, snapshots, email, NAS/memory card upload

Deep Learning & Perimeter Protection

• Face capture

• Line crossing, intrusion, region entrance/exit

• Alarm support triggered by human/vehicle detection

General

• Power: 12 VDC ±25%, 0.41 A, max 5 W; PoE 802.3af, Class 3, max 6 W

• Material: Metal cover and main body

• Dimensions: Ø138.3 × 115.4 mm

• Weight: approx. 770 g

• Operating temperature: –30 °C to 60 °C

• Protection: IP67

Approval

• EMC: CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environment: CE-RoHS
