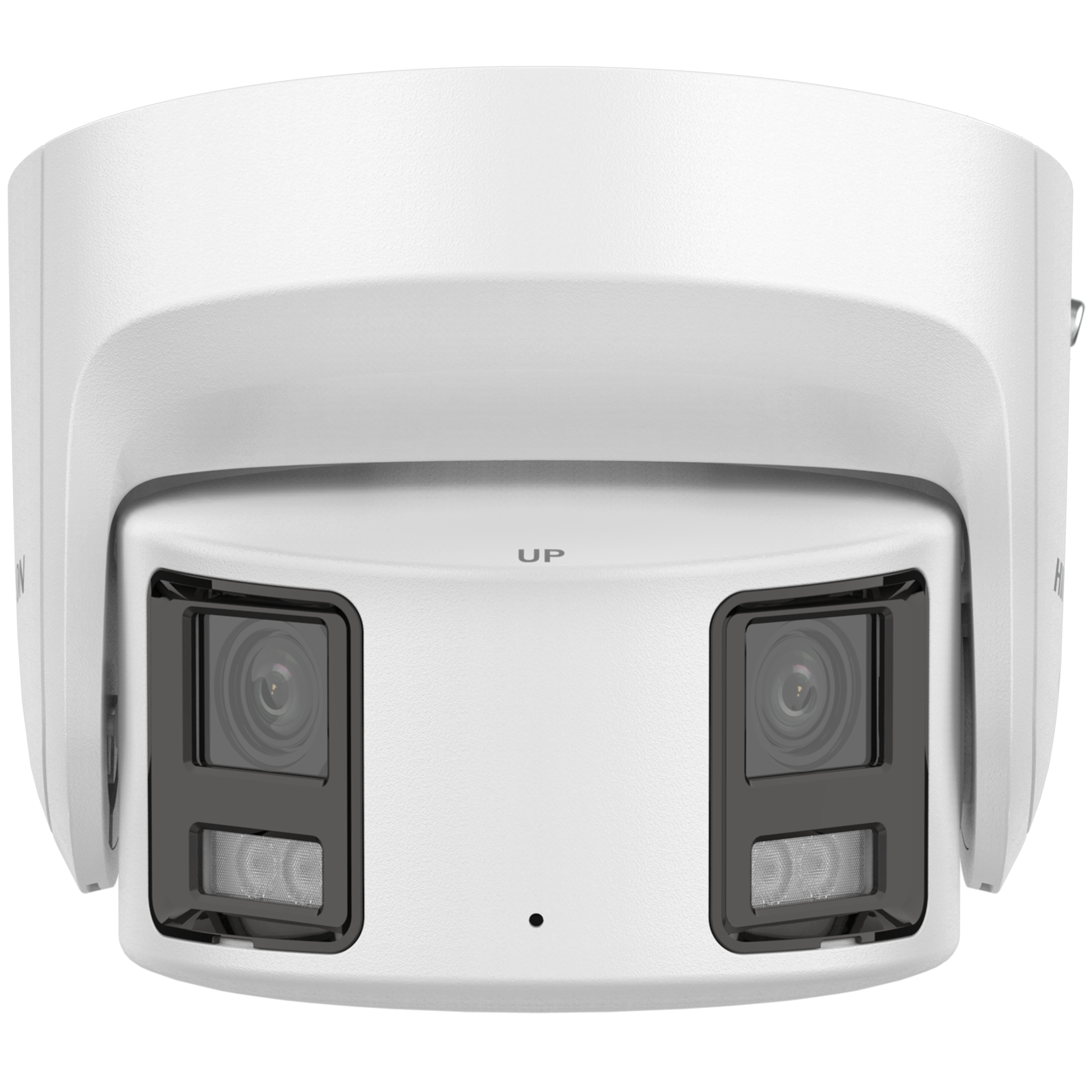

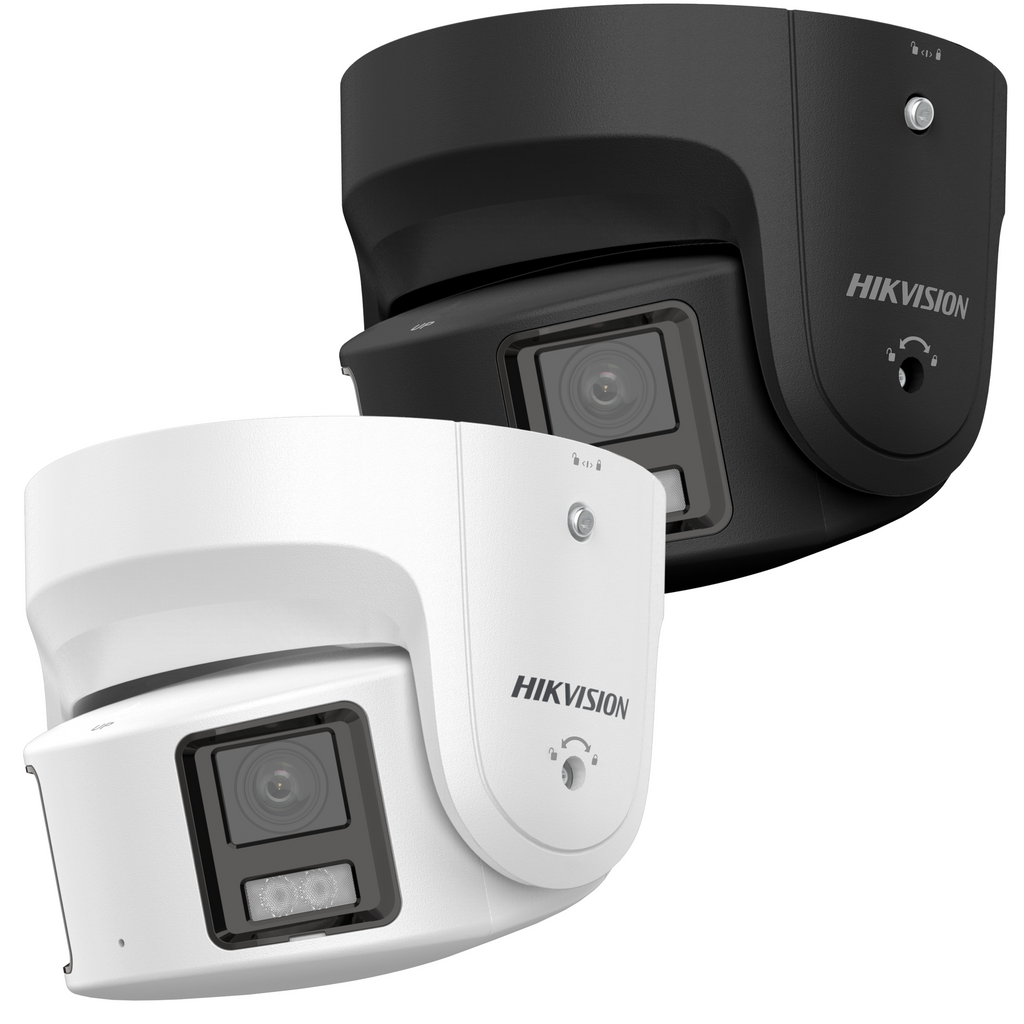

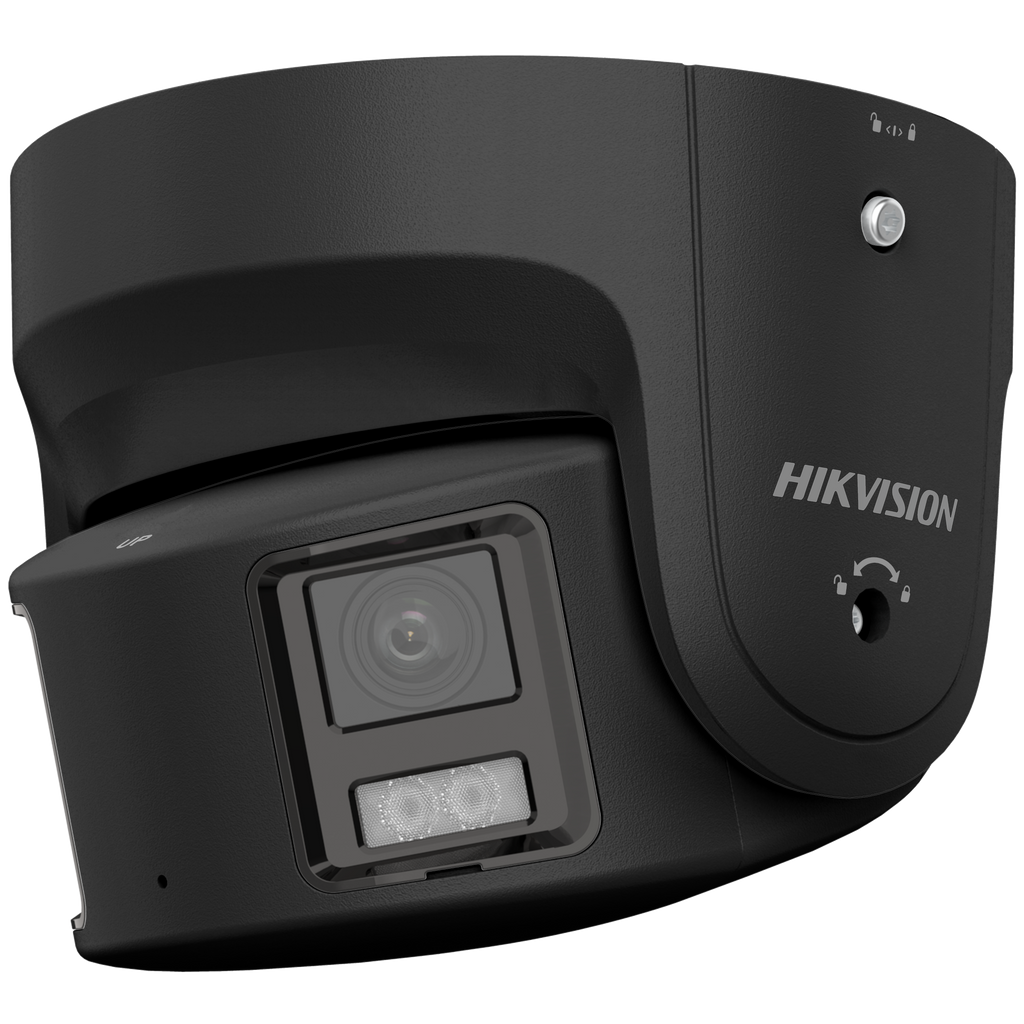

ColorVu 8MP Turret Camera – 4 mm Lens, 30 m Illumination, 130 dB WDR, Microphone, 1 Audio/1 Alarm I/O, Built-in Strobe Light & Siren, 12 VDC/PoE
Hikvision ColorVu technology provides 24/7 vivid, full-color images with F1.0 super-aperture lenses and high-performance sensors. Advanced sensor technology improves the use of available light, while smart lighting ensures brighter, clearer images even in low-light conditions.
Features
-
High-quality 8 MP imaging for wide coverage
-
Single image covers entire scene
-
24/7 full-color imaging via ColorVu
-
Efficient H.265+ compression
-
Clear images in strong backlight with 130 dB WDR
-
Deep learning-based human and vehicle detection
-
Built-in strobe light and audio alarm to deter intruders
-
Water and dust resistant (IP67)
Specifications
Camera & Lens
-
Image Sensor: 2 × 1/1.8" Progressive Scan CMOS
-
Max. Resolution: 5120 × 1440
-
Min. Illumination: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with light
-
Shutter Time: 1/3 s – 1/100,000 s
-
Angle Adjustment: Pan 0°–30°, Tilt -75°–75°
-
Lens Type: Fixed focal lens, dual lens 4 mm
-
FOV (H × V): 180° × 44°
-
Iris Type: Fixed, Aperture F1.0
-
Depth of Field: 3.6 m – ∞
-
DORI: D 77 m, O 30 m, R 15 m, I 7 m
-
Lens Mount: M16
Illuminator
Video
-
Main Stream: WDR On: 50 Hz 12.5 fps / 60 Hz 15 fps @ 5120×1440; WDR Off: 50/60 Hz 20 fps
-
Sub-Stream: 50 Hz 12.5 fps / 60 Hz 15 fps (1920×536, 960×272) WDR On; 50/60 Hz 20 fps WDR Off
-
Third Stream: 10 fps @ 1920×1080 (supported under certain settings)
-
Video Compression: H.265+/H.265/H.264+/H.264
-
Video Bit Rate: 32 Kbps – 16 Mbps
-
H.264 Type: Baseline, Main, High Profile
-
H.265 Type: Main Profile
-
Bit Rate Control: CBR, VBR
-
ROI: 1 fixed region for main stream
Audio & Alarm
-
Audio Type: Mono
-
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate: 8–320 Kbps (depending on codec)
-
Audio Sampling Rate: 8–48 kHz
-
Environment Noise Filtering: Yes
-
Audio I/O: 1 input, 1 output
-
Alarm I/O: 1 input, 1 output (max 24 VDC, 1 A)
-
Built-in Microphone & Speaker, Strobe Light & Siren
Network
-
Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket
-
Simultaneous Live View: Up to 6 channels
-
API: ONVIF (Profiles S, T, G), ISAPI, SDK, ISUP
-
Users: Up to 32 (Admin, Operator, User)
-
Security: Password, HTTPS, 802.1X, watermark, IP filter, digest auth, TLS 1.2, host MAC auth
-
Network Storage: NAS (NFS, SMB/CIFS), ANR, NVR support
-
Client: iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser: IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+ (plug-in free)
-
Image Parameters: Switchable
-
Settings: Saturation, brightness, contrast, sharpness, gain, white balance
-
Day/Night Switch: Day, Night, Auto, Schedule
-
WDR: 130 dB
-
SNR: ≥52 dB
-
Image Enhancement: BLC, HLC, 3D DNR
-
Privacy Masks: 8 rectangular
Interface & Storage
Event & Smart Functions
-
Basic Event: Motion detection (human/vehicle), alarm input/output, flashing alarm light, audible alarm, exception
-
Smart Event: Scene change detection
-
Linkage: FTP/NAS/memory card upload, notifications, trigger recording/capture, audible warning, white light flashing
-
Deep Learning: Face Capture
-
Perimeter Protection: Line crossing, intrusion, region entrance/exit
General
-
Power: 12 VDC ±25%, 0.88 A, max 10.5 W; PoE IEEE 802.3af, Class 3, max 12.5 W
-
Material: Metal (base & cover)
-
Dimensions: Ø155 × 155.3 mm (Ø6.1 × 6.1")
-
Package: 230 × 230 × 230 mm (9" × 9" × 9")
-
Weight: 1110 g (2.4 lb), With Package: 1900 g (4.2 lb)
-
Storage & Operating: -30 °C to 60 °C, humidity ≤95% non-condensing
-
General Functions: Anti-banding, heartbeat, password reset via email, one-key reset, flashing light
-
Language: 33 languages
Approval & Protection
-
EMC: FCC, CE-EMC, RCM, IC
-
Safety: UL, CB, CE-LVD
-
Environment: CE-RoHS, WEEE, REACH
-
Protection: IP67
