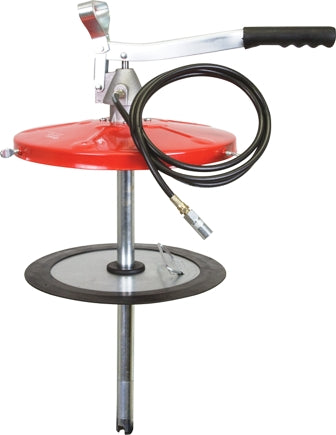

GROZ GREASE PUMP 20KG GFP/HP03-SPL/RD2
An easy and portable high pressure hand operated grease pump
Useful for clean greasing of machinery, equipment, trucks and
cars
Provides high pressure greasing, where power is not available or when
an air operated grease pump cannot be afforded
Steel construction with aluminium cast head and solid steel pumping
chamber
Pump includes:
Lift handle, Drum Cover
Rubber Lining Follower plate
48 inch, 1220 mm flexible grease hose fitted with professional 4 jaw
coupler
Model HPG-10 additionally includes a 10 kg, 22 lb steel grease
bucket
Specifications:
Develops: Up to 3 500 PSI, Up to 240 Bar
Maximum Output: 1 oz per 19 strokes, 1.5g per stroke
GFP/HP-03 For use with 20kg, 25 to 50 lb grease pails
CODE: GRO2172
BARCODE: 8901486442334
HEIGHT: 8.0cm
LENGTH: 51.5cm
WIDTH: 32.0cm
WEIGHT: 3.91kg
PAIL CAPACITY: 20kg, 25 to 50 lb
PUMP LENGTH BELOW DRUM COVER: 348mm
DRUM COVER DIAMETER: 310mm
TYPE OF FOLLOWER PLATE: Rubber Lining
FOLLOWER PLATE DIAMENSIONS
(O.D. STEEL END): 9-1/2 inch
(O.D. PLATE): 11-11/32 inch
(I.D. GROMMET): 1 inch
