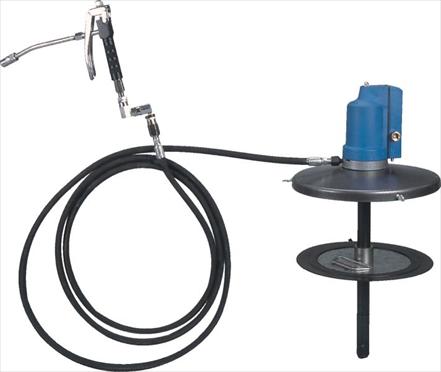

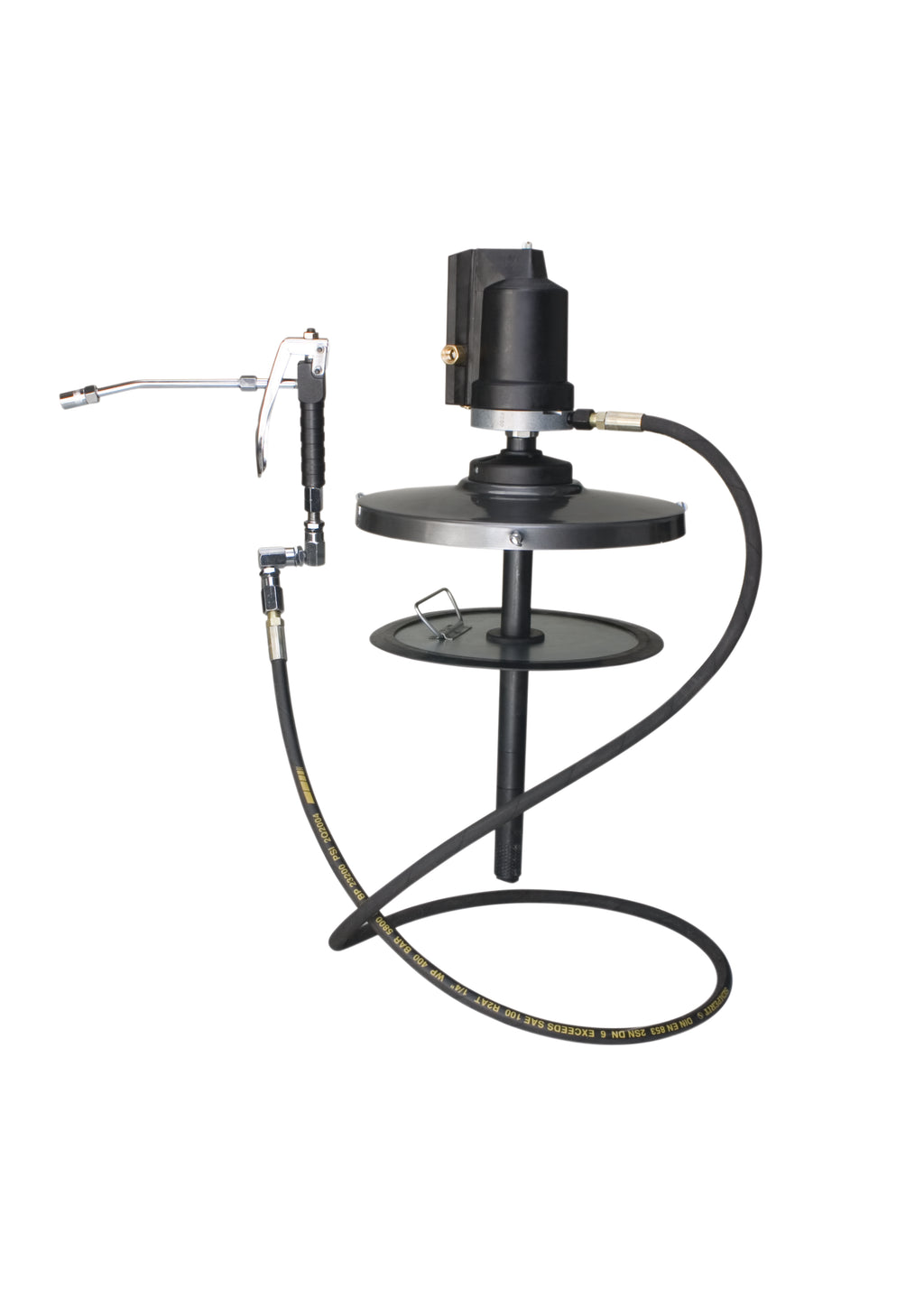

GROZ GREASE PUMP AIR 20KG GRP/501/03
Compact Air Operated 50:1 Grease Ratio Pump
Can operate on small compressors
Ideal for applications having continuous need for high pressure
grease in Industry, Workshops, Farm, etc
Zinc construction makes them suitable for mining applications
Non corroding air motor:
• Design allows the pump to be used without an air line
lubricator
• 2.83 inch, 72 mm diameter air motor
Grease strainer at suction tube inlet, prevents contamination
Complete with drum cover, rubber lined follower plate, 7', 84 inch
high pressure grease hose, Z swivel and professional grease control
valve
Wetted Components: Zinc, chrome plated steel, brass, nitrile and
polyurethane rubber
Recommended Use: With light and self-collapsing grease up to NLGI No.
2
Specifications:
Working Pressure: 60-150 PSI, 4 - 10 Bar
Maximum Air Pressure: 150 PSI, 10 Bar
Maximum Outlet Pressure: 7,500 PSI, 10 Bar
Air Inlet Connection: 1/4 inch NPT (F)
Pump Outlet Connection: 1/4 inch NPT (F)
Air Consumption: 72 GPM, 270 LPM
Grease Output (Max.): 1 Lb/min, 0.460 kg/min.
Noise Level: 85 db
CODE: GRO2175
BARCODE: 8901486454009
HEIGHT: 11.0cm
LENGTH: 63.0cm
WIDTH: 32.5cm
FITS: 20 kg, 25-50 lb, 5 gal. pails
DRUM COVER DIAMETER: 310mm
FOLLOWER PLATE DIAMENSIONS
(O.D. STEEL END): 241mm
(O.D. PLATE): 288mm
(I.D. GROMMET): 27.5mm
