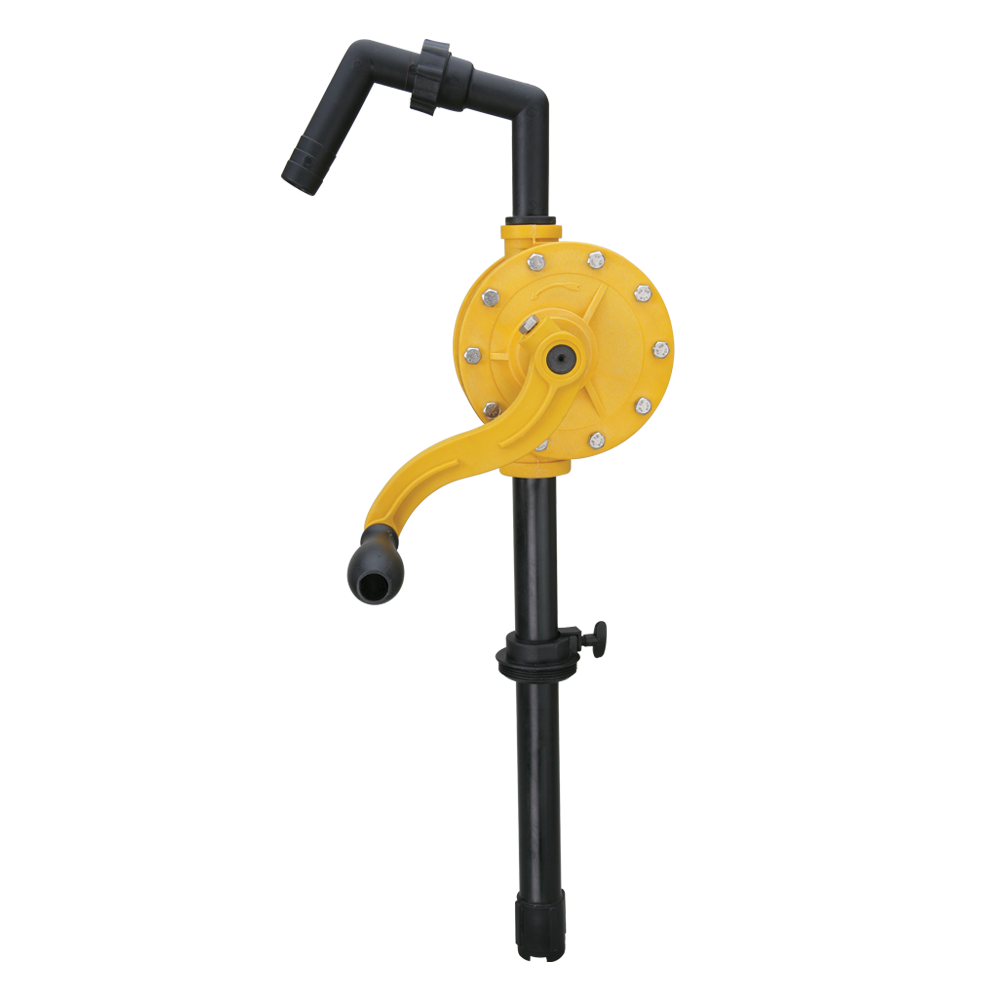

GROZ PUMP CHEMICAL ROTARY PRP/01
A range of special application pumps designed for use with media that
cannot be pumped using a regular cast-iron or steel pump
Choice of 4 configurations built using different materials for
handling mild to very aggressive media
Pump body and Handle are constructed using Glass Filled
Polypropylene
Vanes made out of Ryton
Dual directional operation: Pumps in either direction by a few
reverse turns of the handle *for PRP/02 and PRP/10 only

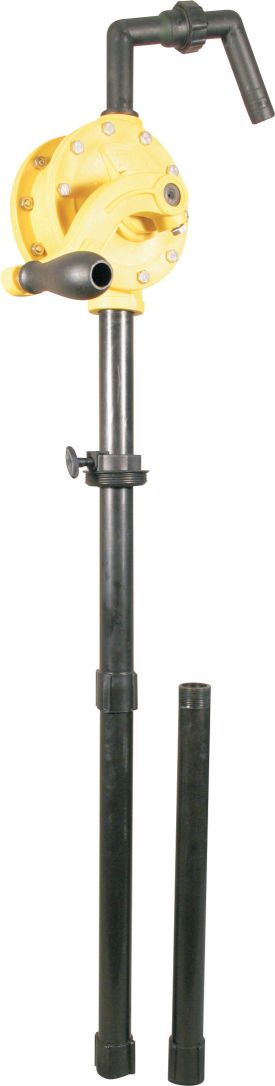

Complete with 3 piece threaded suction tube for use on 50-205
litres,15-55 gallons drums
Specifications:
Flow Rate: Up to 5 litres per 20 turns, Up to 1.3 gallon per 20
turns
CODE: GRO2190
BARCODE: 8901486441917
HEIGHT: 15.5cm
LENGTH: 44.0cm
WIDTH: 19.0cm
WEIGHT: 2.61kg
BODY COLOUR: Yellow
ROTOR MATERIAL: Ryton
HANDLE MATERIAL: 40 percent Glass Filled PP
SHAFT SEAL: Viton
FASTENERS: Stainless Steel
INLET THREADS: Custom
OUTLET THREADS: Custom
DISCHARGE TUBE MATERIAL: PPCP
SUCTION TUBE: PPCP
STRAINER AT SUCTION TUBE INLET: Yes
NON RETURN VALVE AT SUCTION: Yes
TUBE INLET
BUNG ADAPTER MATERIAL: PPCP
BUNG ADAPTER SPECS: 2 inch for Metal Drums and 2nd adaptor
for Plastic Drums
WETTED COMPONENTS: Polypropylene, Ryton, Viton
TYPICAL USE: Heavy Use
