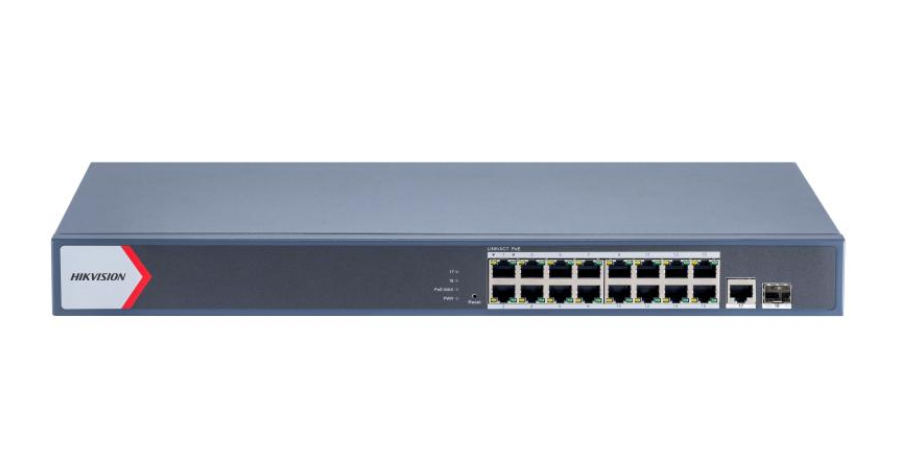

Hikvision 16-Port Smart Gigabit PoE Switch | 230W PoE Budget | SFP Combo Port | Cloud Management

A high-performance smart PoE switch designed for professional CCTV installations and business networks. Featuring 16 Gigabit PoE ports, 230W PoE power budget, unified cloud management, remote troubleshooting, and visualized network topology, this switch offers powerful performance paired with easy, intelligent management.

With long-range PoE support up to 300 m and robust 6 kV surge protection, it's ideal for medium to large surveillance deployments and enterprise setups.

Features

• 16 × Gigabit PoE Ports

• 1 × Gigabit RJ45 Uplink + 1 × Gigabit SFP Fiber Port

• 230W PoE Power Budget (30W max per port)

• Supports IEEE 802.3af/at

• Unified Cloud Management for Hikvision security systems

• Visualized Network Topology & device monitoring

• Remote Troubleshooting & port/device restart

• Up to 300m Long-Range PoE Transmission

• 6kV Surge Protection

• Static Link Aggregation (8 groups)

• VLAN Support (802.1Q) – up to 32 VLANs

• PoE Watchdog: auto-restart unresponsive cameras

• Rack-mountable metal design

• Easy setup with web interface or Hik-Partner Pro

Specifications

General

• Material: Metal

• Net Weight: 2.85 kg

• Gross Weight: 3.05 kg

• Dimensions: 440 × 44 × 220.8 mm

• Operating Temp: 0°C to 45°C

• Storage Temp: –40°C to 85°C

• Humidity: 5%–95% (non-condensing)

• Power Input: 100–240V AC, 50/60Hz, Max 4A

• Max Power Consumption: 250W

• Idle Power: 20W

• Installation: Rack-mount (ears included)

• Surge Protection: 6kV

Network Parameters

• Ports:

  • 16 × Gigabit PoE RJ45

  • 1 × Gigabit RJ45

  • 1 × Gigabit SFP Fiber

• MAC Address Table: 8K

• Switching Capacity: 56 Gbps

• Forwarding Rate: 41.66 Mpps

• Buffer: 4.1 Mbit

PoE

• Standards: IEEE 802.3af / 802.3at

• PoE Pins: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE Ports: 1–16

• Max Power per Port: 30W

• Total PoE Budget: 230W

Software & Smart Functions

Long-Range Mode

• Up to 300 m PoE transmission (ports 1–16)

Port Isolation

• Increase security by isolating PoE ports from each other while allowing uplink communication

PoE Watchdog

• Automatically detects and restarts frozen/unresponsive IP cameras

Link Aggregation

• 8 static LAG groups for load balancing & redundancy

Loop Prevention

• Supports 802.1D STP and 802.1w RSTP

VLAN

• IEEE 802.1Q

• Up to 32 VLANs

• Trunk and Access modes

• VLAN ID range 1–4094

Hik-Partner Pro (HPP) Cloud Management

• One-click activation

• View port rates and bandwidth usage

• View PoE power usage

• Topology visualization

• Alarm notifications

• Restart ports/devices remotely

• Remote firmware upgrade

System Tools

• Web interface management

• DHCP Client (enabled by default)

• Super IP (fixed access IP: 10.180.190.200)

• Cable diagnostics (open/short detection + cable length)

• LLDP (802.1ab)

• Port mirroring

• Remote management

Certifications

• EMC: CE-EMC compliant

• Safety: CB, CE-LVD certified

• Environmental: RoHS, REACH, WEEE
