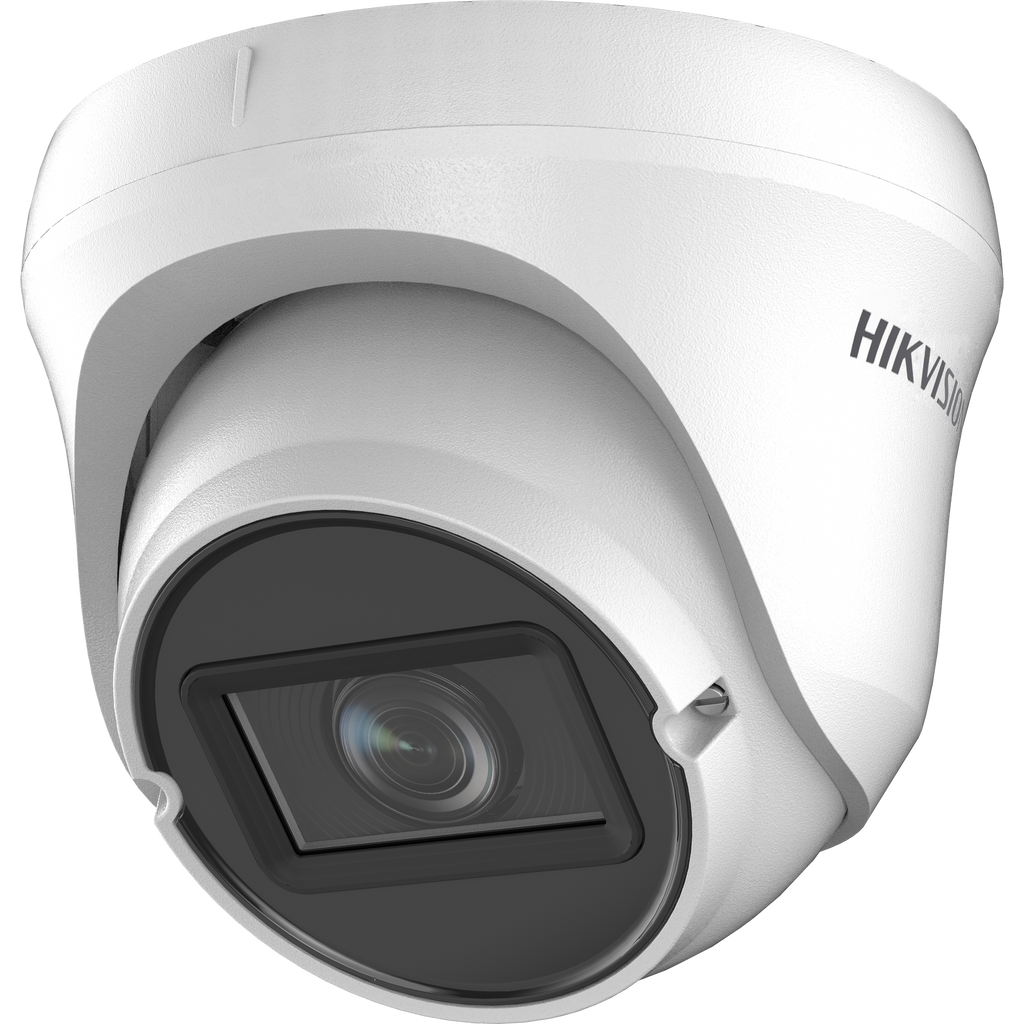

Hikvision 2MP Turbo HD Varifocal Turret – 2.7-13.5mm, 40m IR, 12VDC
Capture high-quality, flexible surveillance with the 2MP Turbo HD varifocal turret camera. Featuring a 2.7–13.5 mm lens, long-range IR, and IP67-rated weatherproofing, it delivers clear images day and night.
Features
-
2 MP Full HD imaging, 1920 × 1080 resolution
-
2.7–13.5 mm varifocal lens for adjustable viewing angles
-
Up to 40 m IR distance for bright night imaging
-
One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
-
Water and dust resistant (IP67)
Specifications
Camera
-
Image Sensor: 2 MP CMOS
-
Signal System: PAL/NTSC
-
Resolution: 1920 × 1080
-
Frame Rate: TVI: 1080p @25/30 fps; AHD/CVI: 1080p @25/30 fps; CVBS: PAL/NTSC
-
Min. Illumination: 0.01 Lux @ F1.6, AGC ON; 0 Lux with IR
-
Shutter Time: PAL 1/25–1/50,000 s; NTSC 1/30–1/50,000 s
-
Day/Night: ICR
-
WDR: Digital WDR
-
Angle Adjustment: Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°
Lens
-
Type: 2.7–13.5 mm varifocal lens
-
Horizontal FOV: 100°–30°, Vertical FOV: 52°–17°, Diagonal FOV: 116°–34.5°
-
Lens Mount: Φ14
-
Day/Night Mode: Auto/Color/BW
-
Image Mode: STD/HIGH-SAT
-
AGC: Yes
-
White Balance: Auto/Manual
-
AE Mode: BLC, HLC, Global, DWDR
-
Noise Reduction: 2D DNR
-
Image Settings: Brightness, Sharpness, Smart IR
Interface
General
-
IR Range: Up to 40 m
-
Material: Main body – Metal; Base & Enclosure – Plastic
-
Dimensions: Ø120 × 105.1 mm (Ø4.72" × 4.16")
-
Weight: 440 g (0.97 lb.)
-
Operating Conditions: -40 °C to 60 °C, Humidity ≤90% (non-condensing)
-
Power: 12 VDC ±25%, Max 5 W
-
Communication: HIKVISION-C
-
Language: English
-
Protection: IP67
