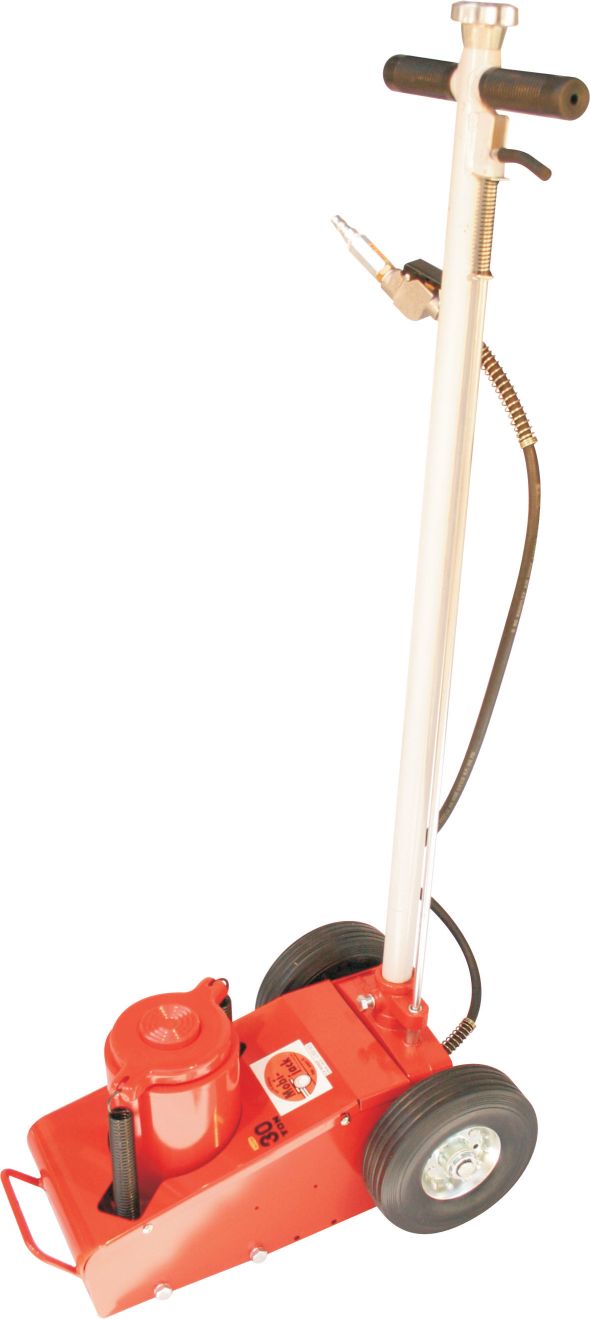

MOBI JACK HYDRAPNEUMATIC 30 TON WITH HANDLE
Pneumatic Truck Jack – 30 Ton
Safety valve to prevent internal damage or operator injury
Air operated function enables quick lifting – minimum air pressure
required is 8 - 14 bar
Large diameter solid rubber wheels for easy movement and
positioning
A choice of three handle angles: 90 degrees for space saving storage,
45 degrees for easy carrying, 0 degrees for access to lifting point
Carrying handle
Self-return spring to minimise operator effort
Built-it silencer filter to reduce working noise
Extension screw allows for added height adjustment
U.S. patent built-in bypass device – Patent No. 4 077 608 – protects
the hydraulic cylinder from over pumping danger
Chrome plated rams
CODE: MOB3046
BARCODE: 4713654040532
HEIGHT: 26.0cm
LENGTH: 70.0cm
WIDTH: 38.0cm
WEIGHT: 58.00kg
CAPACITY: 30 Ton
MINIMUM HEIGHT: 153mm
MAXIMUM HEIGHT: 367mm
HYDRAULIC LIFTING: 178mm
