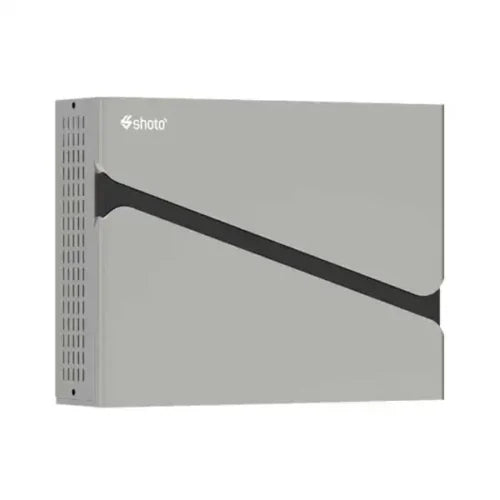

Shoto HP10-Box5 Pro 5.12kWh Battery

Core Battery Specs

• Chemistry: LiFePO₄
• Nominal Voltage: ~51.2 V
• Nominal Capacity: 100 Ah → 5.12 kWh
• Usable Capacity: ~4.10 kWh (90% DoD recommended; full 5.12 kWh)

Power & Performance

• Max Continuous Output: 5.12 kW @ 1C
• Peak Power (≤ 10 s): 5.4 kW
• Round‑Trip Efficiency: ≥ 94%

Charge/Discharge Parameters

• Recommended Current: 50 A (0.5 C)
• Max Continuous Current: 100 A (1 C)
• Voltage Range:
  • Charge Cut-off: 54.0–56.4 V
  • Discharge Cut-off: 45.0–53.0 V

Scalability & Connectivity

• Modular Design: Stackable (wall or floor mounted); use 1–4 modules (= 5–20 kWh); supports parallel systems up to 60 kWh
• Max Parallel Units: 3 modules per system (~60 kWh); some sources list up to 16 units
• Communication Ports: RS‑485 and CAN (RJ‑45)

Physical & Environmental

• Dimensions: 580 × 250 × 440 mm (variations: 580×440×150 mm)
• Weight: ~58 kg (±2 kg)
• Ingress Protection: IP21 (indoor use)
• Operating Temperature:
  • Charging: −5 °C to 50 °C
  • Discharging: −20 °C to 50 °C
  • Recommended: 15 °C to 35 °C

Safety & Certifications

• Cycle Life: ~6 000 cycles @ 80% DoD
• Safety Features: Over‑charge/discharge, over/under‑voltage, over‑current, temperature protection, cell balancing via BMS
• Certifications: UL1973, IEC 62619 (TÜV), CE‑EMC, UN38.3, UKCA, VDE‑2510‑50, CEI‑0‑21

Summary

• Capacity: 5.12 kWh nominal, ~4.1 kWh usable
• Power: 5.12 kW continuous, 5.4 kW peak
• Efficiency: ≥ 94% round‑trip
• Modular & Scalable: Stack up to 60 kWh parallel
• Robust BMS ensuring high safety and performance
• Well‑certified with indoor-rated IP21
• Ideal for residential hybrid storage systems
