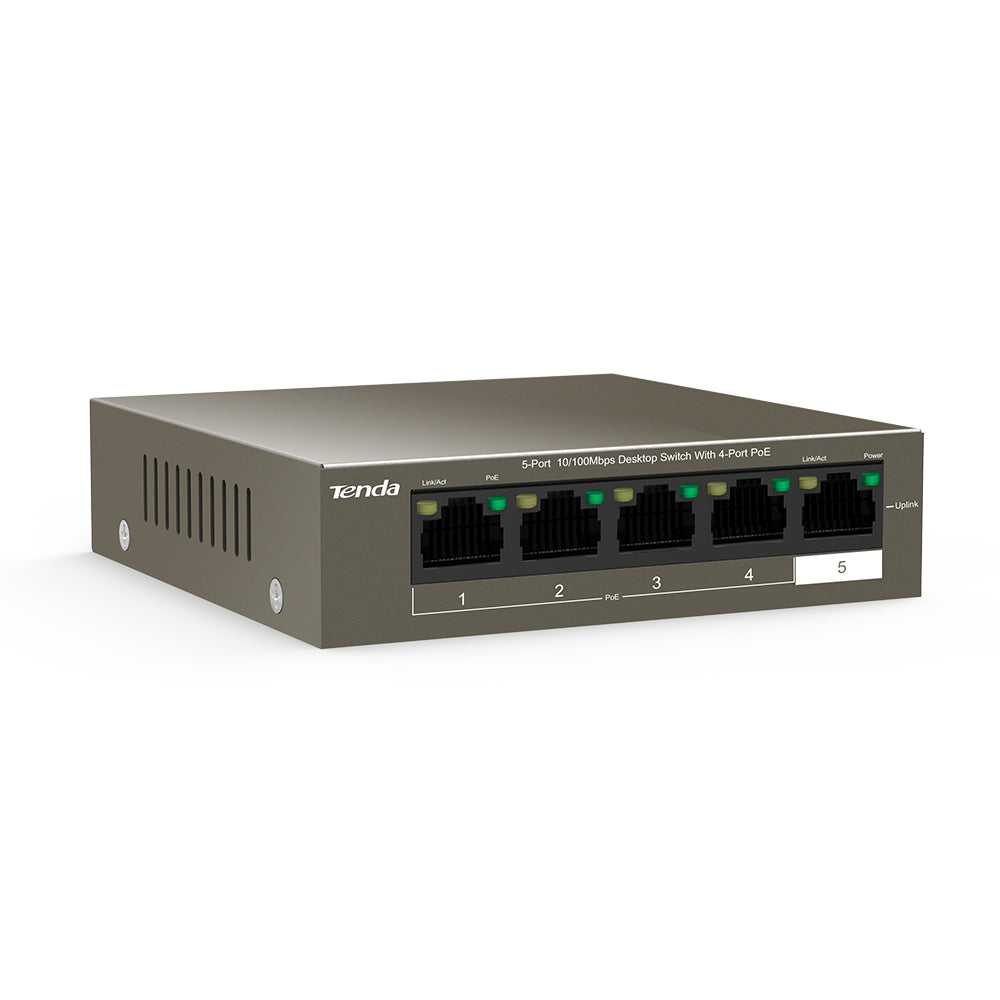

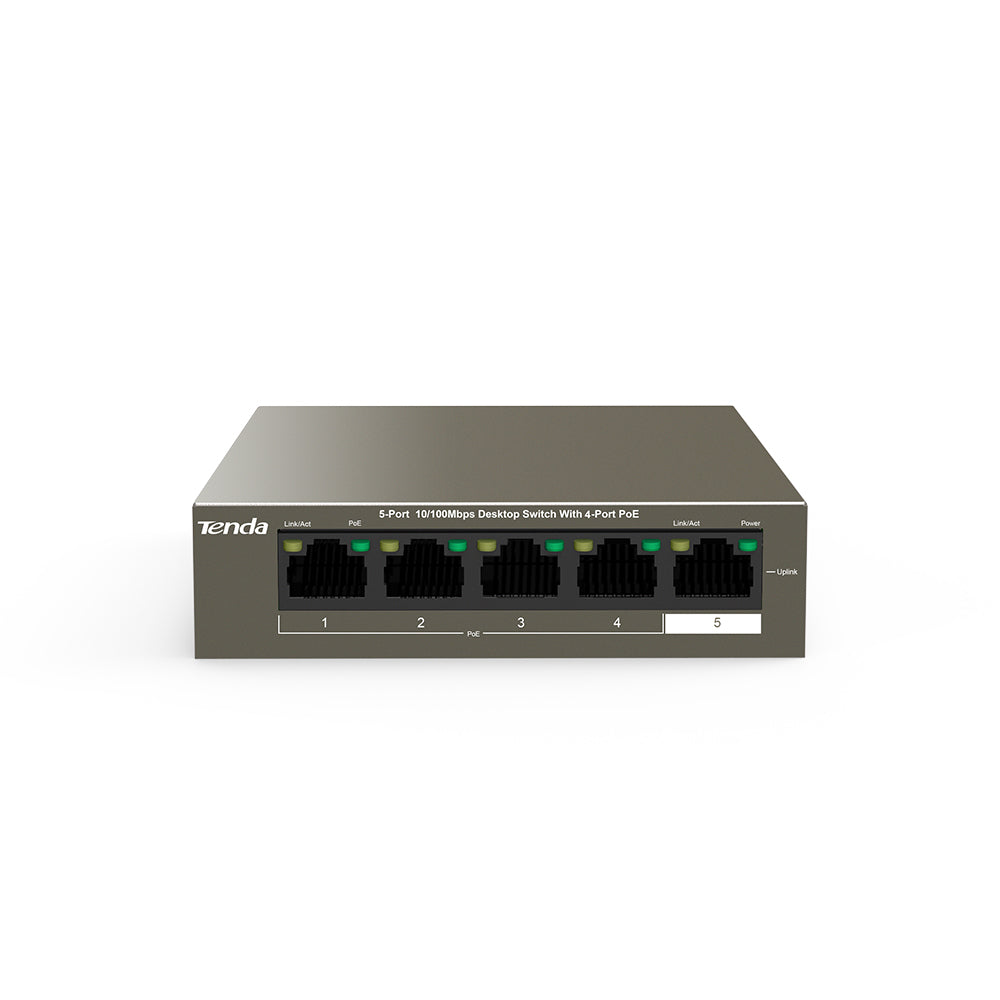

Tenda 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
6KV lighting protection PoE switch is the real monitoring private switch
In the real project, AP or IP cameras are often installed outdoor or the higher position, which is also increases the risk of cameras and PoE switches impact by the lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have the professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring system or local area network stable, reliable service, protect the images transmission be normal.
Up to 250 meters long distance transmission beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it very often to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit.
58W PoE power supply simplified wiring
Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.
| Dimensions |
100 × 100 × 26 mm |
| Funtions |
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other .

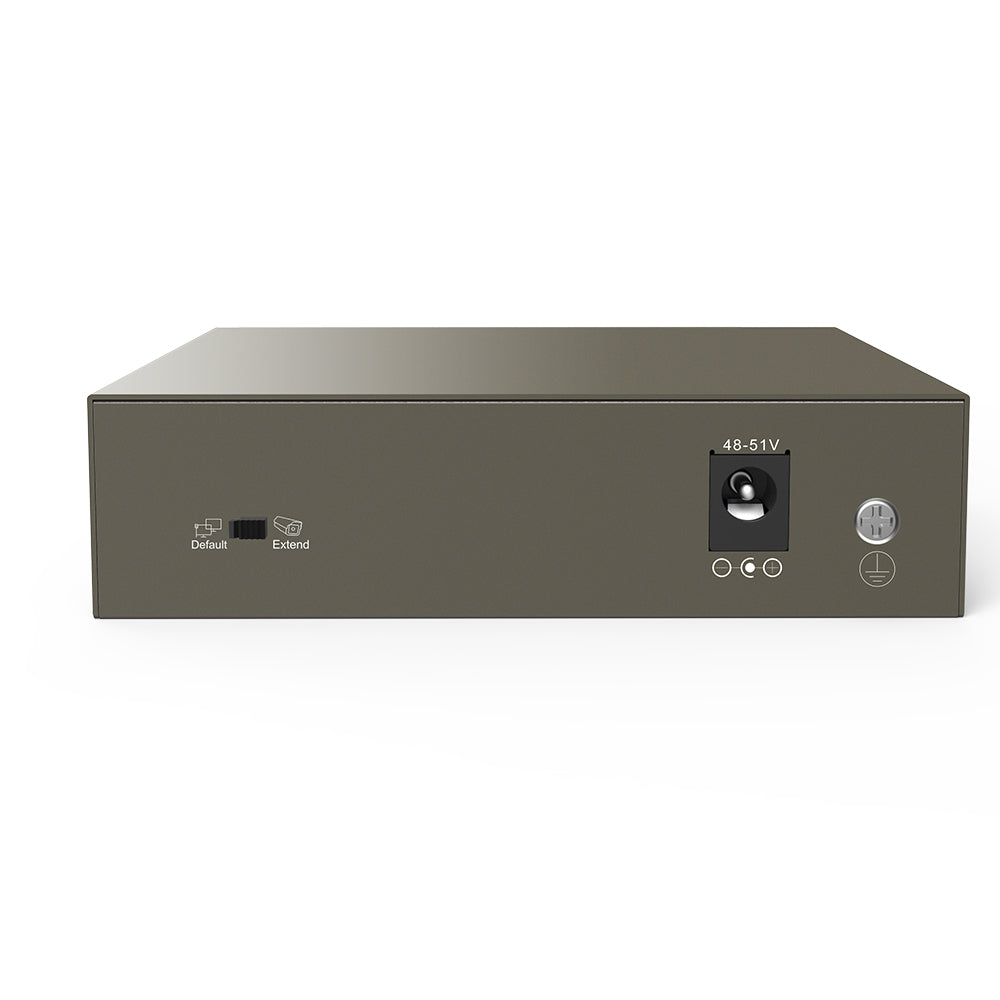

Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.
|
| Network standards |
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
|
| LED Indicator |
5* Link/Ack LED indicators
1 * Power LED indicator
|
| Interfaces |
4*10/100 Base-TX Ethernet Ports(Data/Power)
1*10/100 Base-TX Ethernet Port(Data)
|
| Transmission media |
Recommended: CAT5/5e UTP or better
|
| Dimension |
100.0mmx100.0mmx26.0mm
|
| Level of protection |
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
|
| Forwarding mode |
Store-and-forward
|
| Switch capacity |
1Gbps
|
| Packet forwarding rate |
0.74Mpps
|
| MAC address table |
1K
|
| PoE budget |
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
|
| Input voltage |
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
|
| Mounting |
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
|
| Environment |
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
| Certification |
FCC、CE、RoHS
|
