Tenda 5-Port Gigabit Ethernet Switch With 8-Port Gigabit Ethernet Switch

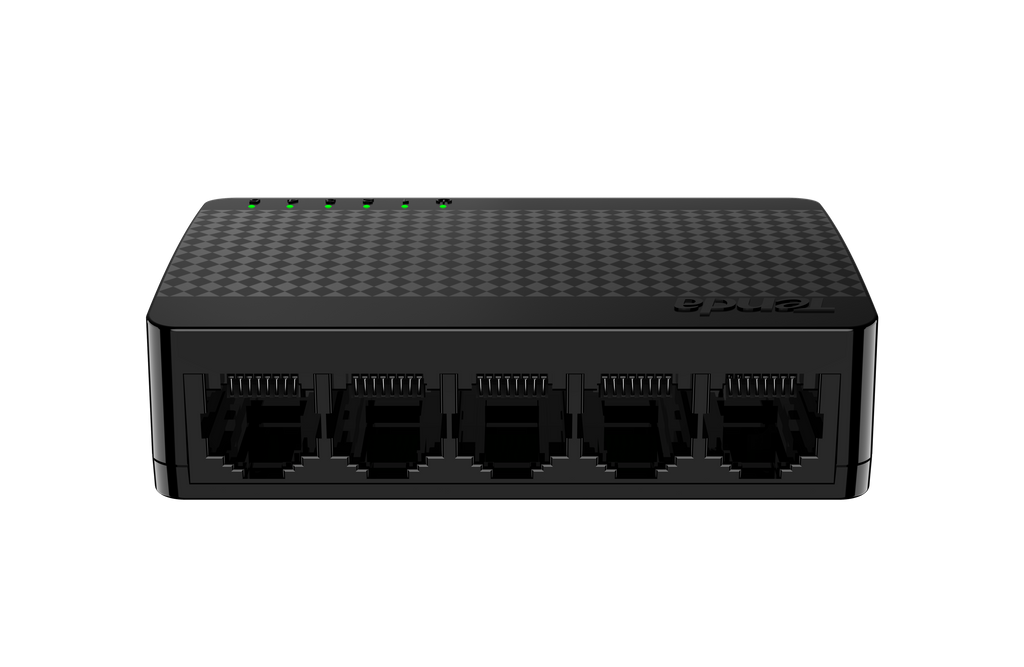

The Tenda SG105 is a high-performance 5-port Gigabit Ethernet switch designed to enhance your network’s efficiency and speed. With all ports supporting 10/100/1000 Mbps auto-negotiation, it ensures seamless data transmission and is ideal for home offices, small businesses, or expanding your network infrastructure. Its compact design allows for both desktop and wall mounting, making it versatile for various setups. Additionally, the finless design ensures silent operation, suitable for noise-sensitive environments.
Key Features
- Gigabit Ports: Equipped with 5 × 10/100/1000 Mbps auto-negotiation RJ-45 ports, ensuring high-speed data transfer.
- Plug-and-Play Installation: No configuration required; simply connect your devices and start using.
- Compact Design: Dimensions of 82mm × 52mm × 22mm, smaller than a bank card, supporting both desktop and wall mounting.
- Fanless Operation: Silent design suitable for noise-sensitive environments.
- Wide Compatibility: Compatible with various network devices such as computers, printers, smart TVs, and game consoles.
Technical Specifications
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
- LED Indicators: 1 × Power, 5 × Link/Act
- Interfaces: 5 × 10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
- Transmission Media: Recommended: CAT5/5e UTP or better
- Switch Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- Buffer: 1 MB
- MAC Address Table: 2K entries
- Power Input: 100-240V AC 50/60Hz
- Power Output: 5.0V 0.6A (External Power Adapter)
- Power Consumption: Max: <3W
- Mounting Options: Desktop and wall mounting supported
- Environmental Conditions:
- Operating Temperature: 0°C – 45°C
- Storage Temperature: -40°C – 70°C
- Operating Humidity: 10% – 90% RH, non-condensing
- Storage Humidity: 5% – 90% RH, non-condensing
- Certifications: FCC, CE, RoHS
- Protocols: CDMA/CD
- MAC Address Learning: Auto-Learning and Auto-Aging
- Functionality: Plug-and-play
