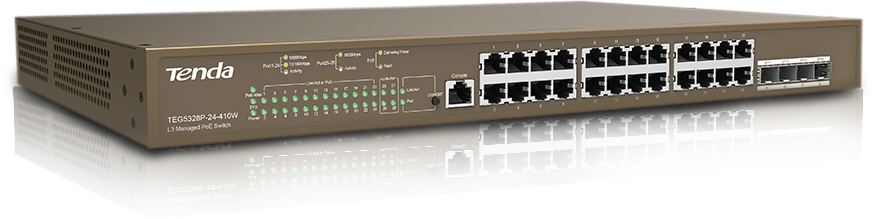

Tenda L3 Managed PoE Switch 24 Port

The Tenda TEG5328P-24-410W is a Layer 3 managed Gigabit Ethernet switch designed to meet the networking needs of medium to large-scale enterprises, campuses, and data centers. Equipped with 24 10/100/1000 Mbps RJ45 PoE ports and 4 1000 Mbps SFP slots, it offers high-density connectivity and flexibility for various network deployments. With a switching capacity of 56 Gbps and a 12MB buffer, the TEG5328P ensures efficient data transmission and handles burst traffic effectively. Advanced features such as static routing, DHCP server, Access Control Lists (ACLs), and dual-image firmware backup enhance network security and reliability. The switch also supports topology visualization, allowing for automatic network topology generation and device status monitoring, which simplifies network management and maintenance.

Key Features

• 28 Ports: 24 × 10/100/1000 Mbps RJ45 PoE ports and 4 × 1000 Mbps SFP slots for flexible network expansion.

• High PoE Power Budget: Total PoE power output of 370W, delivering up to 30W per port, suitable for powering multiple PoE-enabled devices simultaneously.

• Layer 3 Routing: Supports VLAN-based routing, IPv4/IPv6 static routing, and static ARP, enabling efficient inter-VLAN communication and network segmentation.

• Advanced Security: Features include ARP inspection, MAC address filtering, DoS attack defense, 802.
• 1x authentication, and Radius security authentication to safeguard network integrity.
  PoE Management: Supports port PoE configuration with priority settings, over-temperature protection, scheduled PoE management, and intelligent PoE-powered device detection.

• Robust Design: Provides 6KV lightning protection for ports and power, 8KV ESD protection, and operates within a temperature range of 0°C to 45°C, ensuring reliable performance in various environments.

Technical Specifications

• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.1p, 802.1q, 802.1w, 802.1d, 802.1s

• Interfaces: 24 × 10/100/1000 Mbps RJ45 PoE ports, 4 × 1000 Mbps SFP slots, 1 ×
• RJ45 console port

• Switching Capacity: 56 Gbps

• Forwarding Rate: 41.7 Mpps

• MAC Address Table: 16K entries

• Buffer Size: 12 MB

• Jumbo Frame Support: Up to 10 KB

• PoE Power Supply: Supports IEEE 802.3af/at standards; single port max: 30W; total device max: 370W

• Power Consumption: Full load: <432W; Empty load: <23W

• Input Voltage: AC 100–240V, 50/60Hz

• Dimensions: 440 mm × 284 mm × 44 mm

• Mounting Options: Desktop and wall-mountable (rack mounting not supported)

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

• Certifications: FCC, CE, RoHS

TEG5328P-24-410W Details and Specifications:
