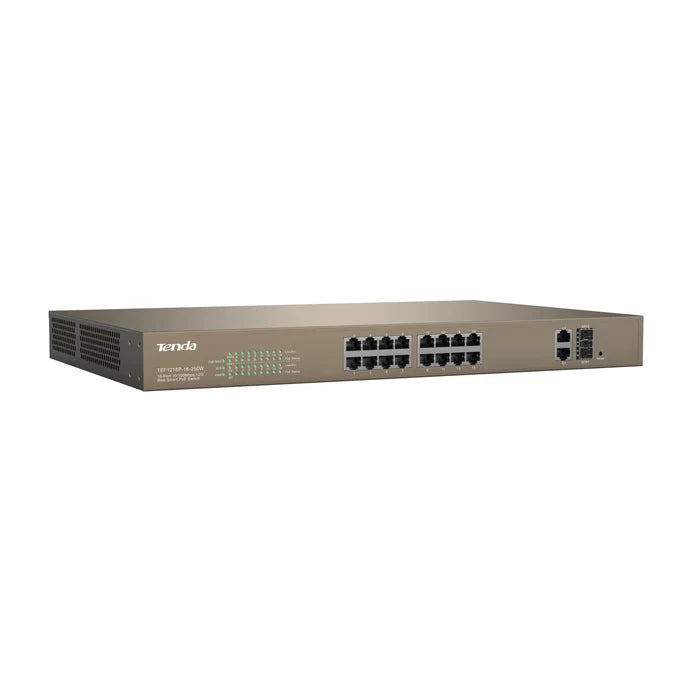

Tenda Switch 16 POE 10/100 2XUPL 1XSFP
The Tenda TEF1218P-16-250W is a Web-managed 16-port Fast Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With sixteen 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 230W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a 250-meter extend mode, surpassing the standard 100-meter Ethernet limitation, facilitating long-distance deployments without additional equipment. Its 6KV lightning protection ensures robust operation in challenging environments. Additionally, the TEF1218P-16-250W offers VLAN functionality to enhance network security and performance.
Key Features:
- 16 PoE Ports: Sixteen 10/100 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port.
- High PoE Power Budget: Total PoE power output of 230W, suitable for multiple PoE-enabled devices.
- Dual Uplink Ports: Two 10/100/1000 Mbps RJ45 uplink ports for connecting to the core network.
- 250M Extend Mode: Enables long-distance data and power transmission up to 250 meters.
- VLAN Support: Isolates ports 1–16 from each other while maintaining communication with the uplink ports, enhancing network security.
6KV Lightning Protection: Protects the switch from power surges and lightning strikes.
- Web Management: Provides a user-friendly interface for configuring and monitoring the switch.
Technical Specifications:
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.3af/at
- Interfaces: 16 × 10/100 Mbps RJ45 ports (Data/Power), 2 × 10/100/1000 Mbps RJ45 uplink ports (Data), 1 × 10/100/1000 Mbps SFP port (Combo)
- Transmission Media: CAT5/5e UTP or better
- MAC Address Table: 4K entries
- Switching Capacity: 7.2 Gbps
- Forwarding Mode: Store-and-forward
- Packet Buffer Memory: 1.25 Mb
- Lightning Protection: 6KV for ports, 6KV for power inputs
- Power Supply: Input: AC 100–240V~50/60Hz; Output: DC 51V?4.9A (Power Adapter)
- Dimensions: 440 mm × 178.8 mm × 44 mm
- Mounting Options: Desktop or wall-mountable
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
- Certifications: FCC, CE, RoHS
