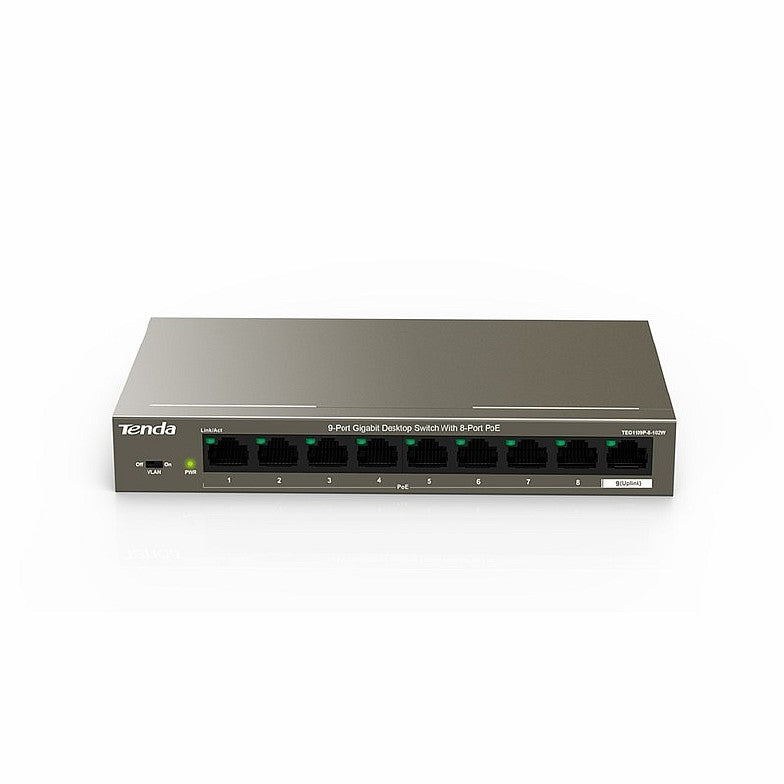

Tenda Switch 8 Port GB 1UP/L
The Tenda TEG1109P-8-102W is an unmanaged 9-port Gigabit Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With eight 10/100/1000 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 92W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a One-Key VLAN function, allowing ports 1–8 to be isolated from each other while maintaining communication with port 9, enhancing network security and performance. Its 6KV lightning protection ensures robust operation in challenging environments.
Key Features
- 8 PoE Ports: Eight 10/100/1000 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port.
- High PoE Power Budget: Total PoE power output of 92W, suitable for multiple PoE-enabled devices.
- One-Key VLAN: Isolates ports 1–8 from each other while maintaining communication with port 9, enhancing network security.
- 6KV Lightning Protection: Protects the switch from power surges and lightning strikes.
- Plug-and-Play: No configuration required; simplifies installation and deployment.
Technical Specifications
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at
Interfaces: 8 × 10/100/1000 Mbps RJ45 PoE ports, 1 × 10/100/1000 Mbps RJ45 uplink port
- Transmission Media: CAT5/5e UTP or better
- MAC Address Table: 16K entries
- Switching Capacity: 18 Gbps
- Forwarding Mode: Store-and-forward
- Packet Buffer Memory: 2M
- Lightning Protection: 6KV for ports, 6KV for power inputs
- Power Supply: Input: AC 100–240V~50/60Hz; Output: DC 51V?2.0A (Power Adapter)
- Dimensions: 177.5 mm × 104.0 mm × 26.0 mm
- Mounting Options: Desktop or wall-mountable
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
- Certifications: FCC, CE, RoHS
