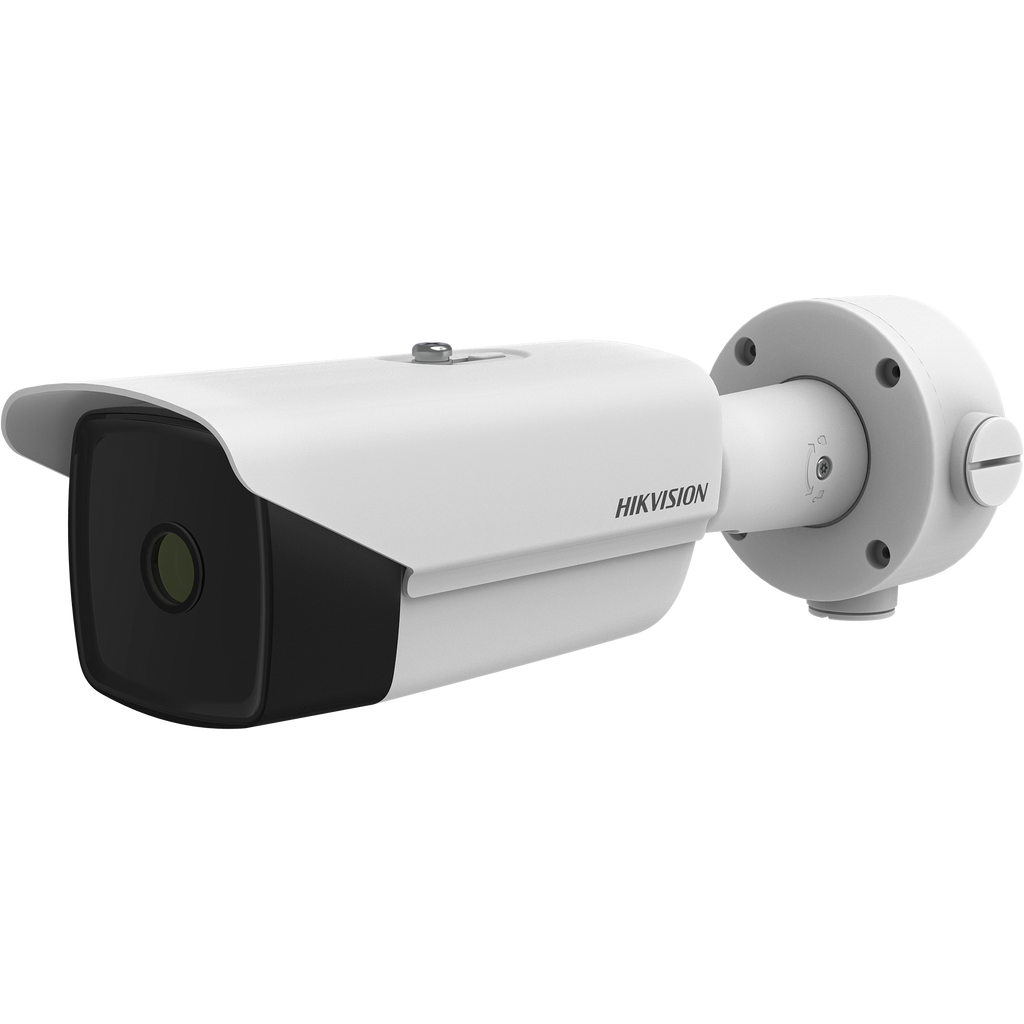

Heatpro Thermal Bullet – 35mm Lens, Perimeter & Fire Detection VCA, 12VDC/24VAC/PoE

Features

• High-resolution thermal imaging: 384 × 288, 12 μm VOx UFPA, NETD < 35 mK

• Perimeter protection with VCA: line crossing, intrusion, region entrance/exiting (up to 8 rules)

• Fire and temperature exception detection: -20°C to 150°C (±8°C)

• Advanced image processing: linear, histogram, self-adaptive thermal AGC, DDE, 3D DNR

• High-quality detector with 10-year guarantee

• Digital zoom: 2×, 4×, 8×

• Target coloration supported in white hot and black hot modes

• Detection ranges: humans up to 350 m, vehicles up to 1050 m

Specifications

Thermal Module

• Sensor: Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA)

• Resolution: 384 × 288, Pixel Pitch: 12 μm

• Spectral Range: 8–14 μm, NETD < 35 mK (25°C, F1.0)

• Focal Length: 35 mm, IFOV: 0.34 mrad

• Field of View: 7.5° × 5.6°, Min Focus: 34 m

• Aperture: F1.0, Digital Zoom: 2×, 4×, 8×

Smart Functions

• VCA: 4 rule types (line crossing, intrusion, region entrance, region exiting), up to 8 rules

• Temperature measurement: 3 rule types, 21 rules (10 points, 10 areas, 1 line)

• Temperature range: -20°C to 150°C, Accuracy: ±8°C

• General functions: fire detection, sun-reflection filter

Video & Audio

• Main stream: 25 fps (1280×720, 704×576, 640×512, 352×288)

• Sub-stream & third stream: 25 fps

• Compression: H.265/H.264/MJPEG

• Audio: G.722.1, G.711u/a, MP2L2, G.726, PCM

Network & Storage

• Protocols: IPv4/IPv6, HTTP/HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, RTSP, TCP/IP, UDP, IGMP, ICMP, DDNS, SFTP, SSL

• Storage: MicroSD up to 256 GB, NAS (NFS/SMB/CIFS), ANR

• Client: iVMS-4200, Hik-Connect

• Simultaneous live view: up to 20 channels

• Security: user authentication, HTTPS, MAC binding, IP filtering, 802.1x

Interface & Event

• 2 alarm inputs (0–5 VDC), 2 alarm outputs (configurable)

• Alarm actions: SD recording, relay output, smart capture, FTP upload, email

• Audio input: 3.5 mm Mic/Line, output impedance: 600 Ω

• Communication: 1× RJ45, 1× RS-485 half duplex

• Analog output: 1.0 V[p-p]/75Ω, PAL/NTSC/BNC

General

• Power: 24 VAC ±25%, 12 VDC ±25%, PoE 802.3af Class 3

• Max consumption: 5–5.5 W depending on power type

• Operating temp/humidity: -40°C to 65°C, ≤90%

• Protection: IP67, IK10-rated, TVS 6000V lightning/surge/voltage transient protection

• Dimensions: 351.3 × 113.5 × 115.2 mm, Weight: 1.77 kg
