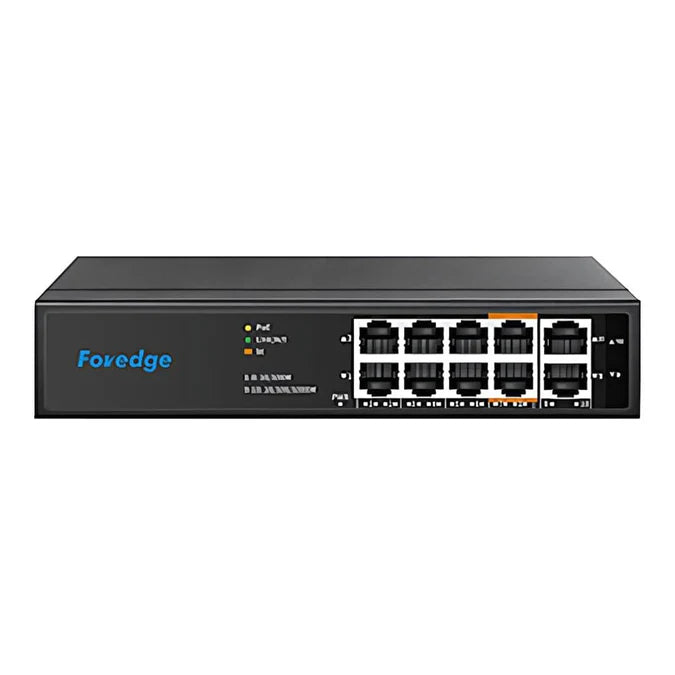

8-Port 100M AI PoE Switch with 1000M Uplink Port
Features
-
8 × RJ45 100M PoE ports, 2 × RJ45 1000M uplink ports
-
Built-in power with AI intelligent recognition and long-distance mode
-
Maximum PoE power: Ports 7–8 up to 60W, Ports 1–6 up to 30W
-
Maximum total power supply: 65W
-
All ports support 6KV lightning protection
Specifications
-
Networking Standards: IEEE 802.3i, 802.3u, 802.3x, 802.3af/at/bt
-
Bandwidth: 5.6 Gbps
-
Packet Forwarding Rate: 4.16 Mpps
-
MAC Table Size: 1K
-
Forwarding Type: Store-and-forward
LED Indicators
PoE
-
Pin Assignment: 1/2 (+), 3/6 (–)
-
Maximum PoE Power: Ports 7–8 up to 60W, Ports 1–6 up to 30W
Dimensions
Environmental Specifications
-
Operating Temperature: 0 °C to 40 °C
-
Storage Temperature: –40 °C to 70 °C
-
Operating Humidity: 10%–90% RH (non-condensing)
-
Storage Humidity: 5%–90% RH (non-condensing)
Safety & Compliance
